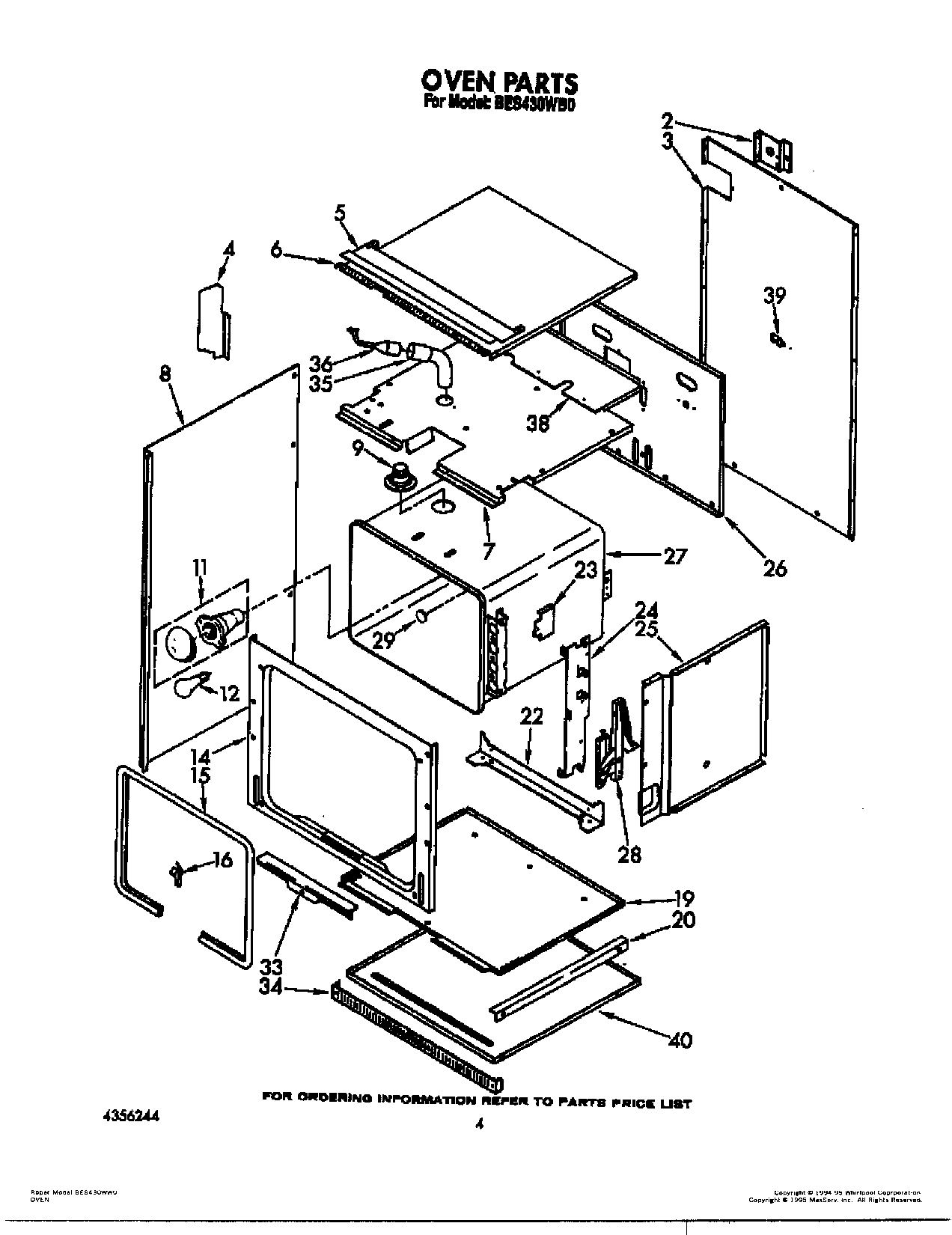

BES430WB0 04 – OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Baffle, End Cap (Left Hand)
4	Screw,
4	Baffle, End Cap (Right Hand)
5	Baffle, Control Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
14	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
26	WP90767 Whirlpool Screw
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
33	SCREW
33	Retainer, Seal
34	Trim, Lower Vent (Black Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Screw (4))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
39	Screw
39	Cover, Cap Tube
40	Bottom, Oven
40	Insulation, Wrap
40	WPL 3177870
