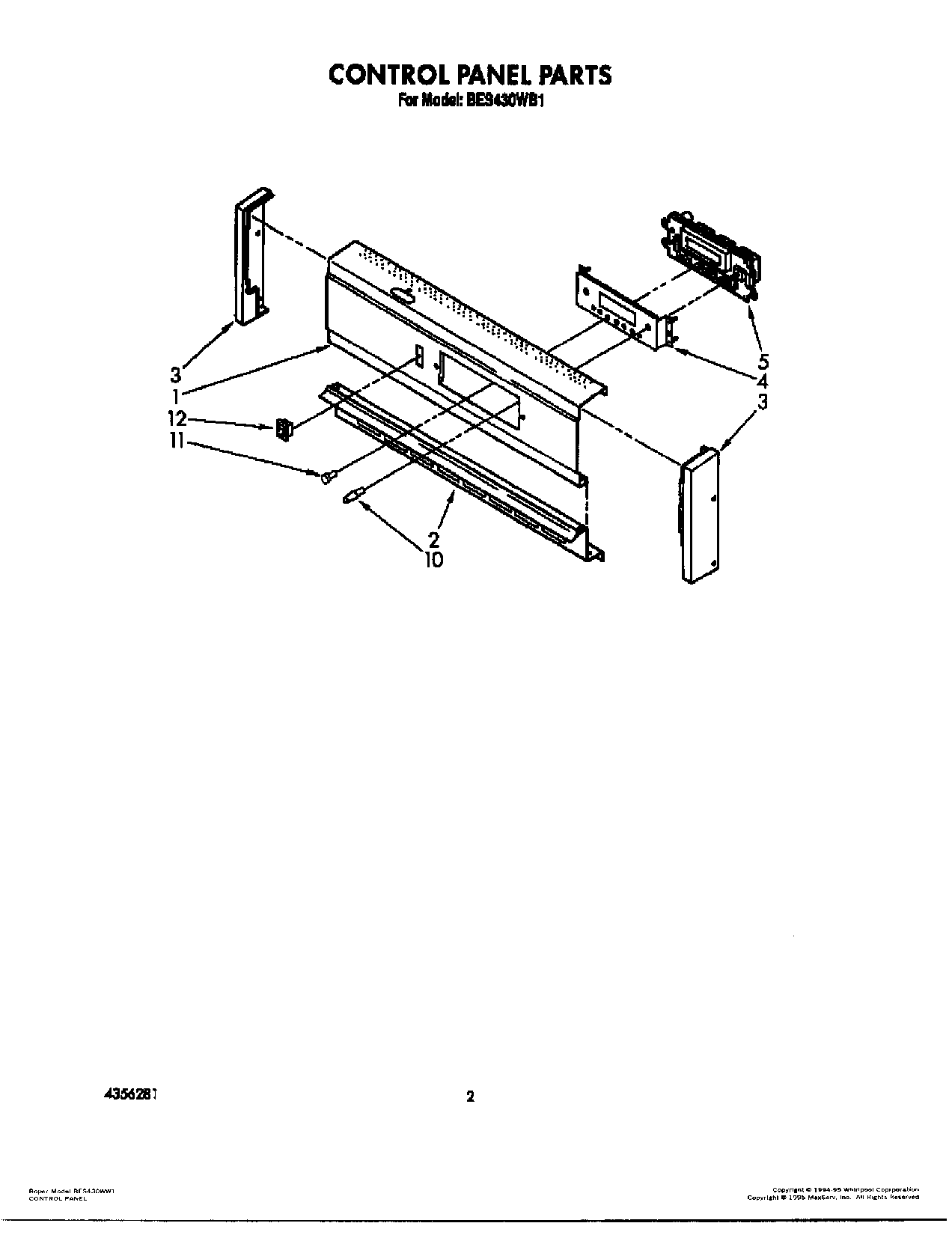

BES430WB1 02 – CONTROL PANEL

Products

Position	Product
	Tech Sheet
	Repair Parts List
	Installation Instructions
	Use & Care Guide
1	Panel, Control (White)
1	Panel, Control (Black)
2	Insert, Control Panel (Flat Black)
2	Insert, Control Panel (White)
3	End Cap (Black, Left)
3	End Cap (Black, Right)
3	End Cap (White, Left)
3	Screw
3	End Cap (White, Right)
3	Vent, Lower Trim (Screw (2))
4	Glass, Control
5	Oven, Control
5	Nut
5	Screw
10	Knob, Bit Generator (Black)
10	Knob, Bit Generator (White)
11	WPL 3149781
11	WPL 3149780
12	WP4314961 Whirlpool Lite Switch
