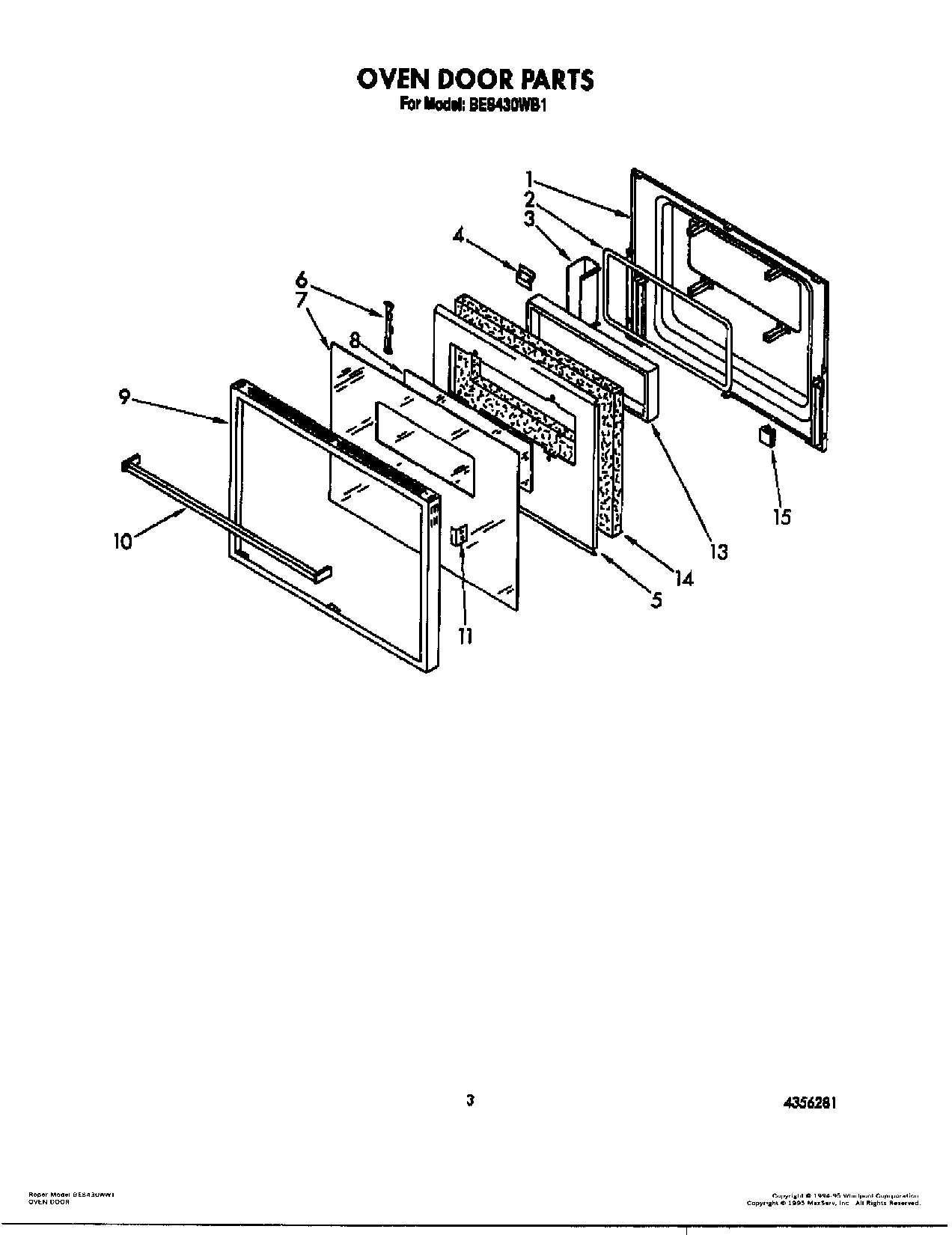

BES430WB1 03 – OVEN DOOR

BES430WB1 03 – OVEN DOOR

Written by

in

BES430WB1 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6Screw
6Bracket, Glass Mtg.
7Glass, Door (White)
7clip, glass (10)
7Glass, Door (Black)
8Glass, Reflective
9Frame, Door (White)
9Frame, Door (Black)
10White
10Handle, Door
11Clip, Handle (2)
11Screw (4)
12Retainer, Glass
13Window Package
14Insulation, Door
15Bumper, Door Glass
