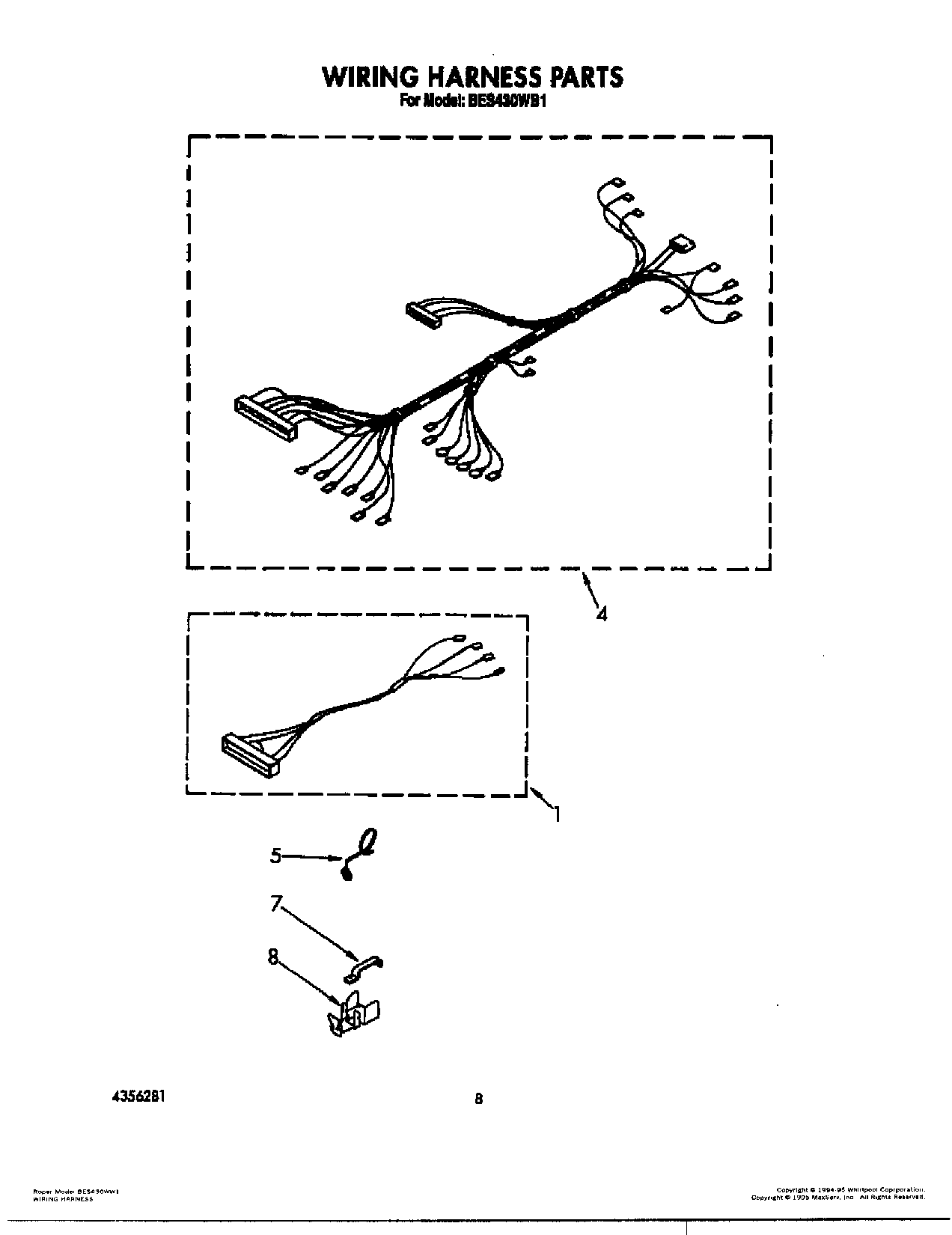

BES430WB1 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Wiring Harness (Latch Assembly)
4	Wiring Harness
5	Screw
5	Standoff, Wire
7	WP112432 Whirlpool Nut Assembly
7	7111P002-60 Whirlpool Clamp
8	Screw
8	W10113937 Whirlpool Clamp
