BES430WW0 02 – CONTROL PANELadmin2025-04-26T12:05:50+00:00BES430WW0 02 – CONTROL PANEL
Products

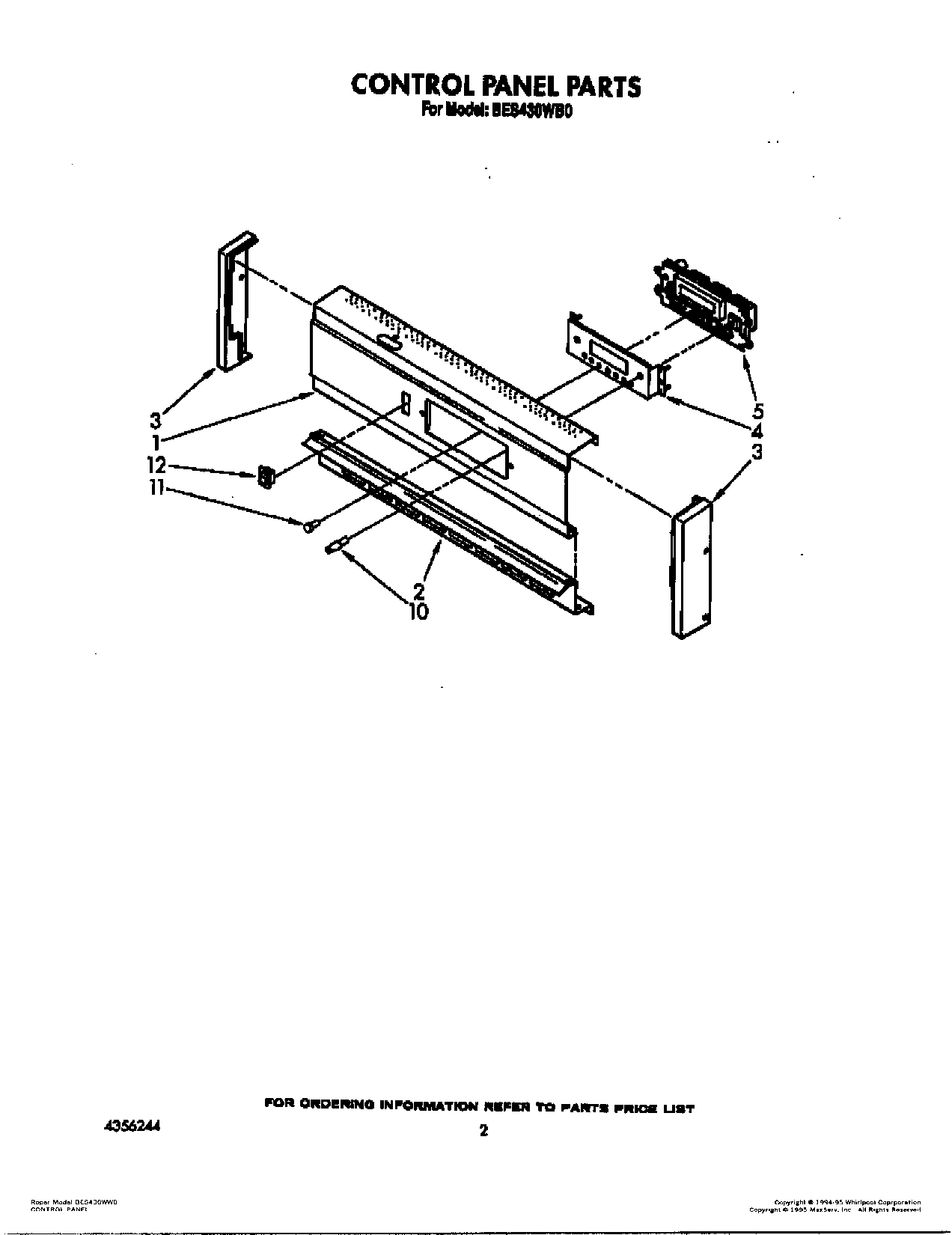

| Position | Product |
|---|
| Repair Parts List |
| Installation Instructions |
| Tech Sheet |
| Use & Care Guide |
| 1 | Panel, Control (Black) |
| 1 | Panel, Control (White) |
| 2 | Insert, Control Panel (White) |
| 2 | Insert, Control Panel (Flat Black) |
| 3 | End Cap (Black, Right) |
| 3 | Vent, Lower Trim (Screw (2)) |
| 3 | End Cap (Black, Left) |
| 3 | Screw |
| 3 | End Cap (White, Left) |
| 3 | End Cap (White, Right) |
| 4 | Glass, Control |
| 5 | Nut |
| 5 | Oven, Control |
| 5 | Screw |
| 10 | Knob, Bit Generator (White) |
| 10 | Knob, Bit Generator (Black) |
| 11 | WPL 3149781 |
| 11 | WPL 3149780 |
| 12 | WP4314961 Whirlpool Lite Switch |
