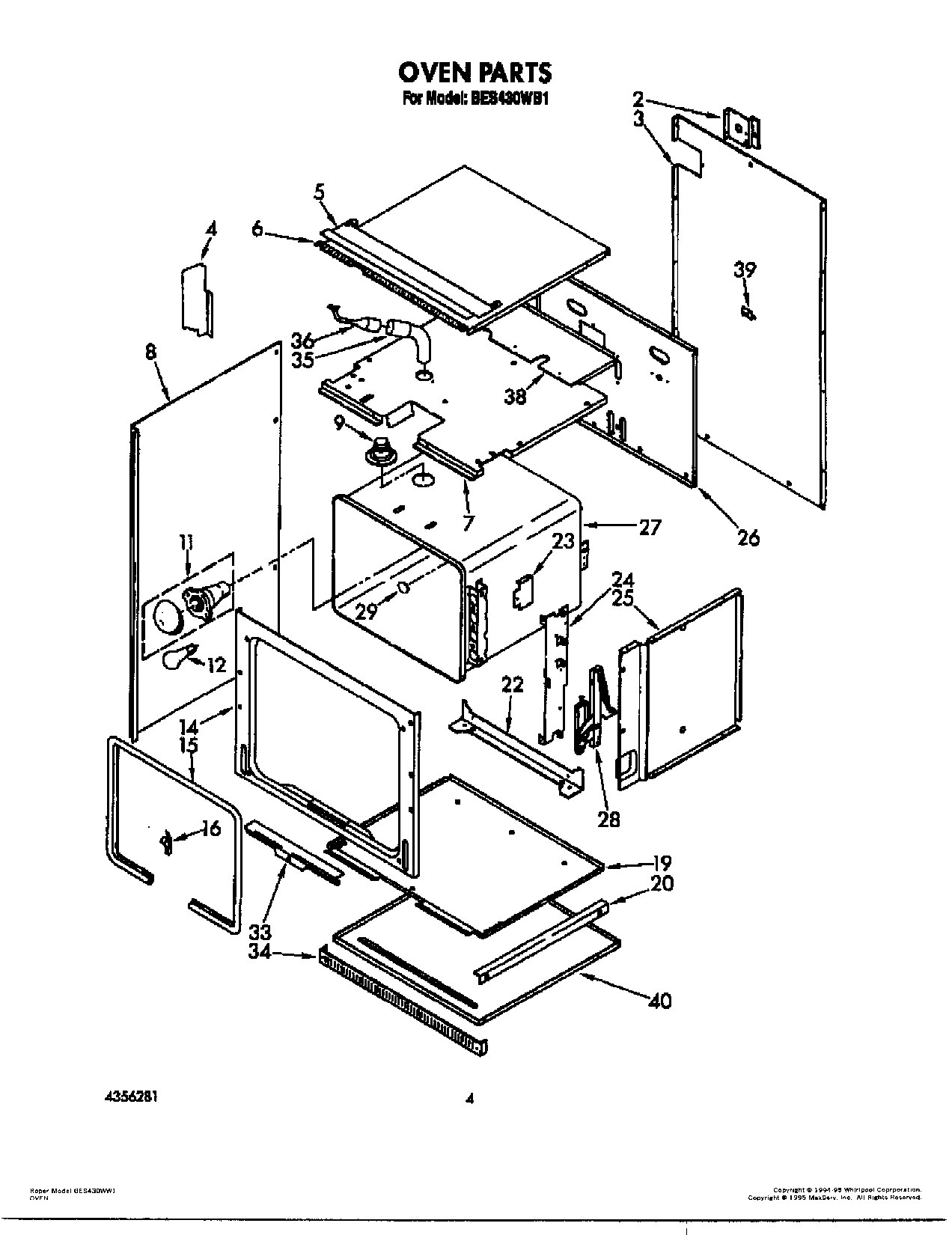

BES430WW1 04 – OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Screw,
4	Baffle, End Cap (Left Hand)
4	Baffle, End Cap (Right Hand)
5	Baffle, Control Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Screw (4)
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Screw
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
33	Retainer, Seal
33	SCREW
34	Trim, Lower Vent (Black Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (White Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
39	Screw
40	WPL 3177870
40	Insulation, Wrap
40	Bottom, Oven
