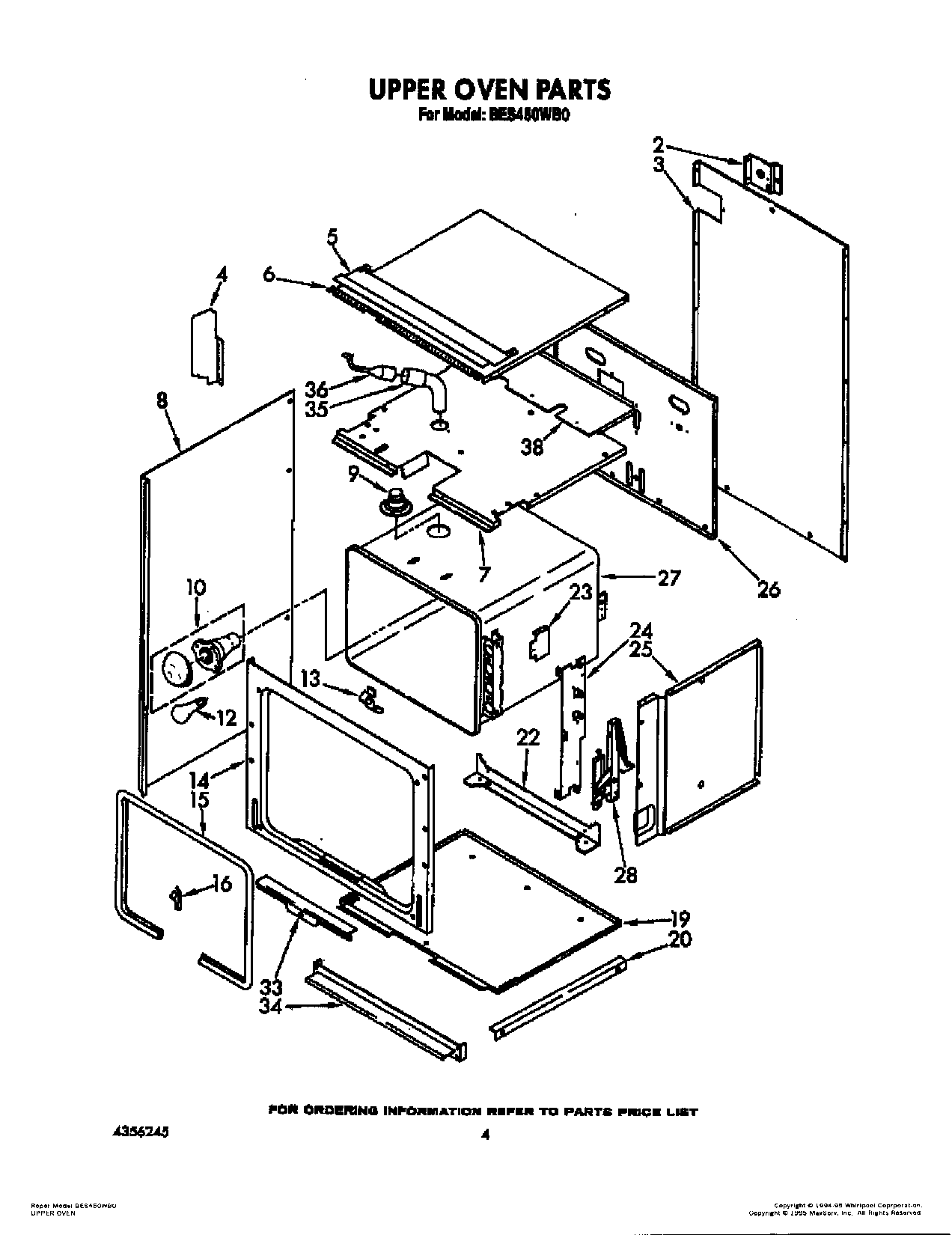

BES450WB0 04 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Screw,
4	Baffle, End Cap (Left Hand)
4	Baffle, End Cap (Right Hand)
5	Baffle, Control Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
33	Screw (4)
33	Retainer, Seal
34	Vent, Middle Trim
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	WP90767 Whirlpool Screw
36	Vent, Tube (Upper, Male)
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	WPL 3177870
39	Insulation, Wrap
39	Screw
39	Cover, Cap Tube
