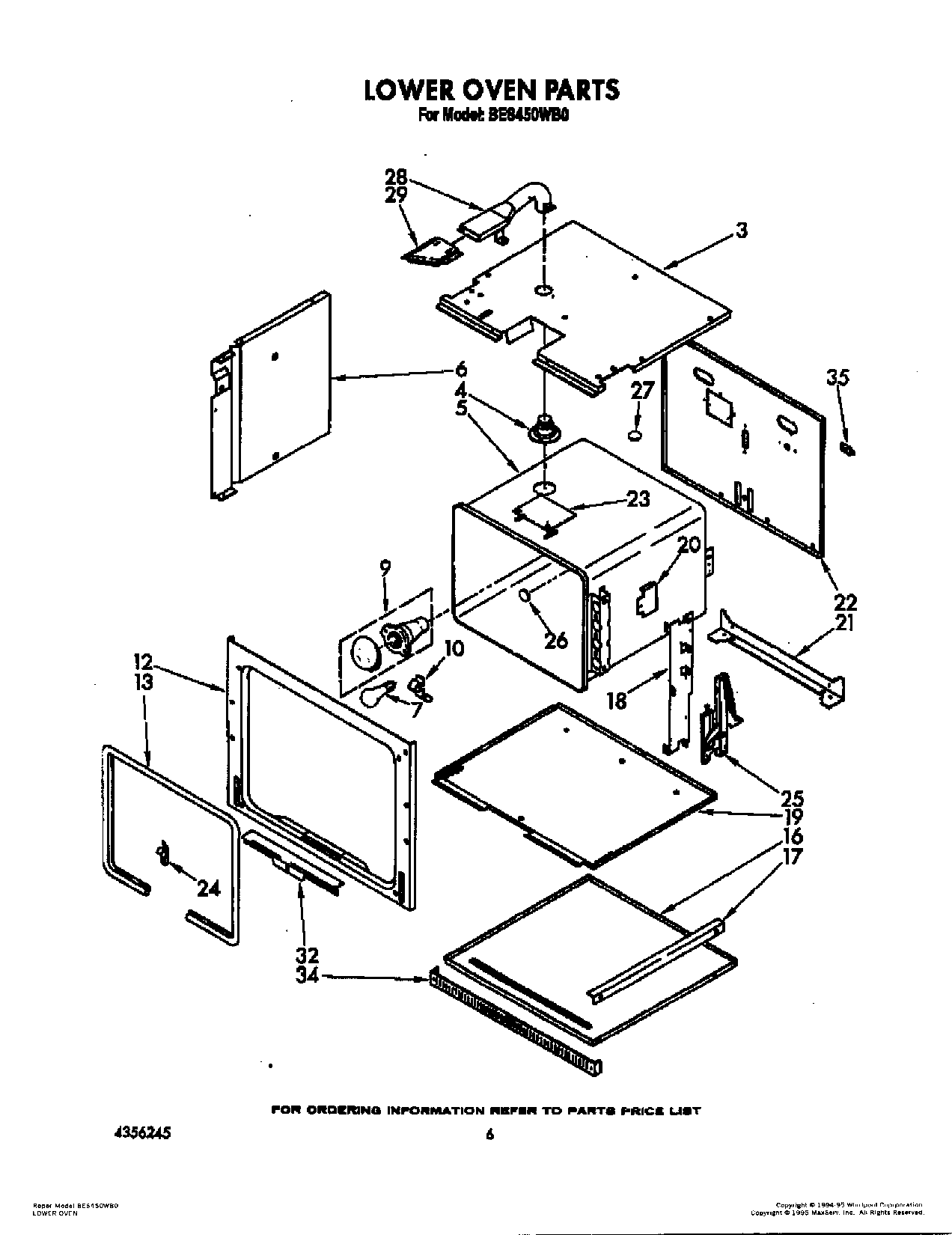

BES450WB0 05 – LOWER OVEN

Products

Position	Product
3	Top, Module
4	Tube, Vent
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Frame, Door
13	Seal, Door
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Cover, Latch Mtg.
23	Screw (3)
24	Clip, Oven Seal
25	Screw (6)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	WP90767 Whirlpool Screw
29	Tube, Vent
32	Vent, Lower Trim (Screw (2))
32	Retainer, Seal
34	Trim, Lower Vent (Black Model)
35	Cover, Cap Tube
35	WPL 3177870
35	Screw
35	Insulation, Wrap
