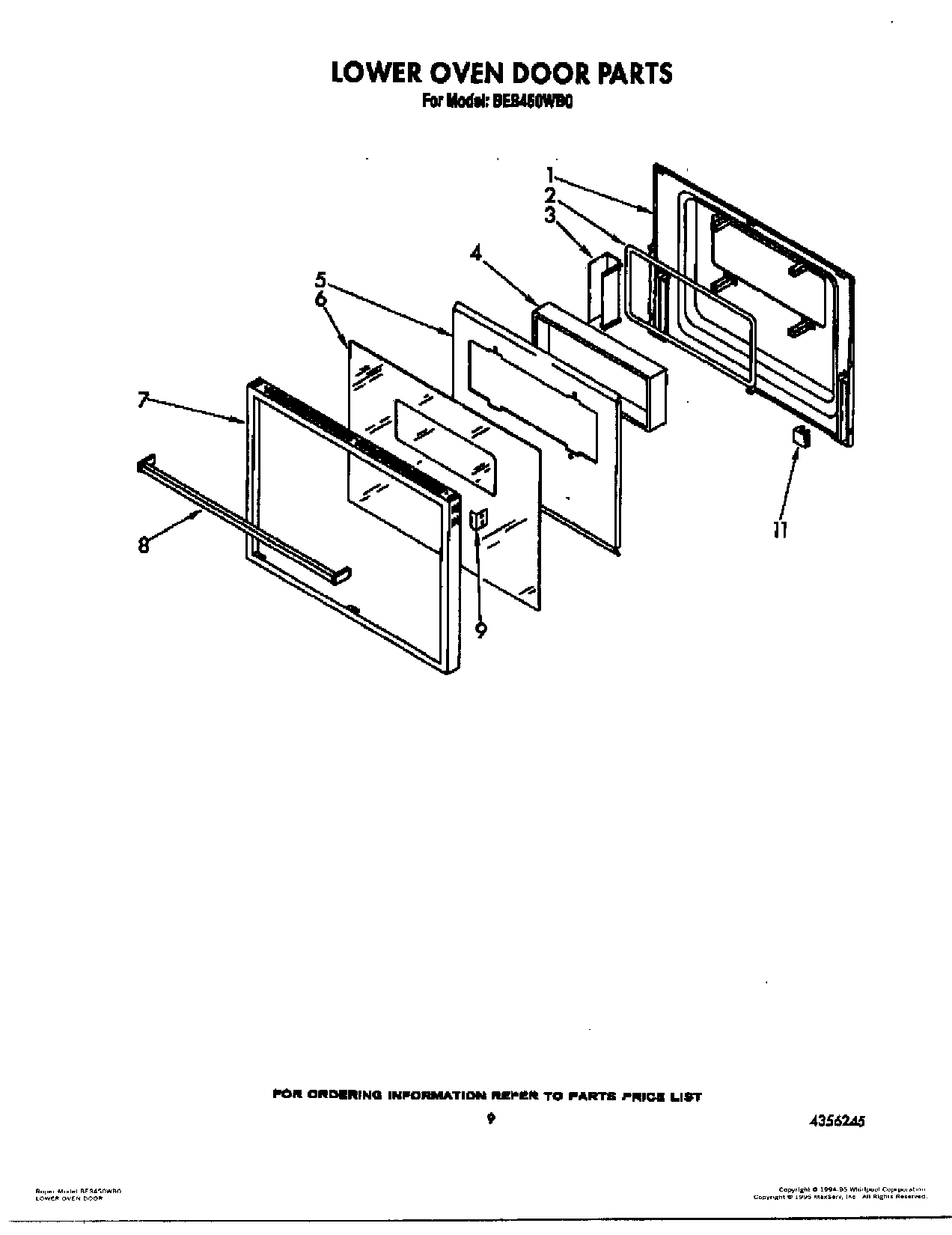

BES450WB0 07 – LOWER OVEN DOORadmin2025-04-26T12:05:02+00:00BES450WB0 07 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Vent, Lower Trim (Screw (2)) |
| 1 | Screw, Black (2) |
| 1 | Liner, Door |
| 2 | Seal, Window |
| 3 | Spacer, Window |
| 4 | Window Pack |
| 5 | WP90767 Whirlpool Screw |
| 5 | Retainer, Insulation |
| 6 | clip, glass (10) |
| 6 | Glass, Door (Black) |
| 7 | Frame, Door (Black) |
| 8 | Handle, Door |
| 8 | Screw (4) |
| 9 | Clip, Handle (2) |
| 11 | Bumper, Door Glass |
