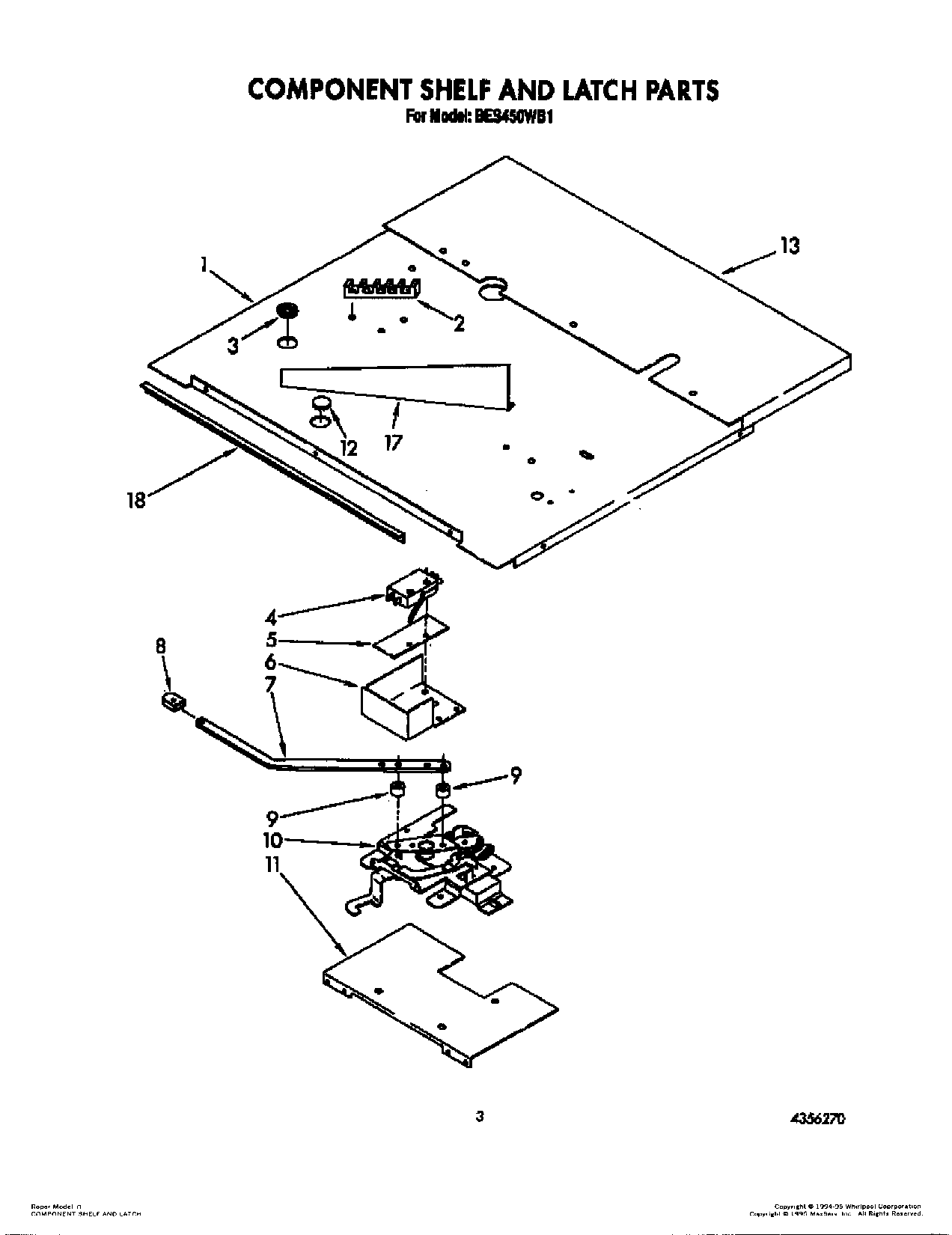

BES450WB1 03 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
3	Bushing
4	Switch, Latch
4	Screw
5	Insulator, Switch
6	Guard, Latch
6	Screw,
7	Handle, Latch
7	Screw (2)
8	Screw
8	Knob, Latch Handle
9	Spacer, Handle (2)
10	Latch, Mechanism
11	Screw, 8-18 X 3/4 (4)
11	WP90767 Whirlpool Screw
11	Plate, Mounting
12	Plug, Button
13	WP112432 Whirlpool Nut Assembly
13	Extension, Shelf
17	Baffle, Air
18	Shield, Heat
18	WP3177991 Whirlpool Screw
