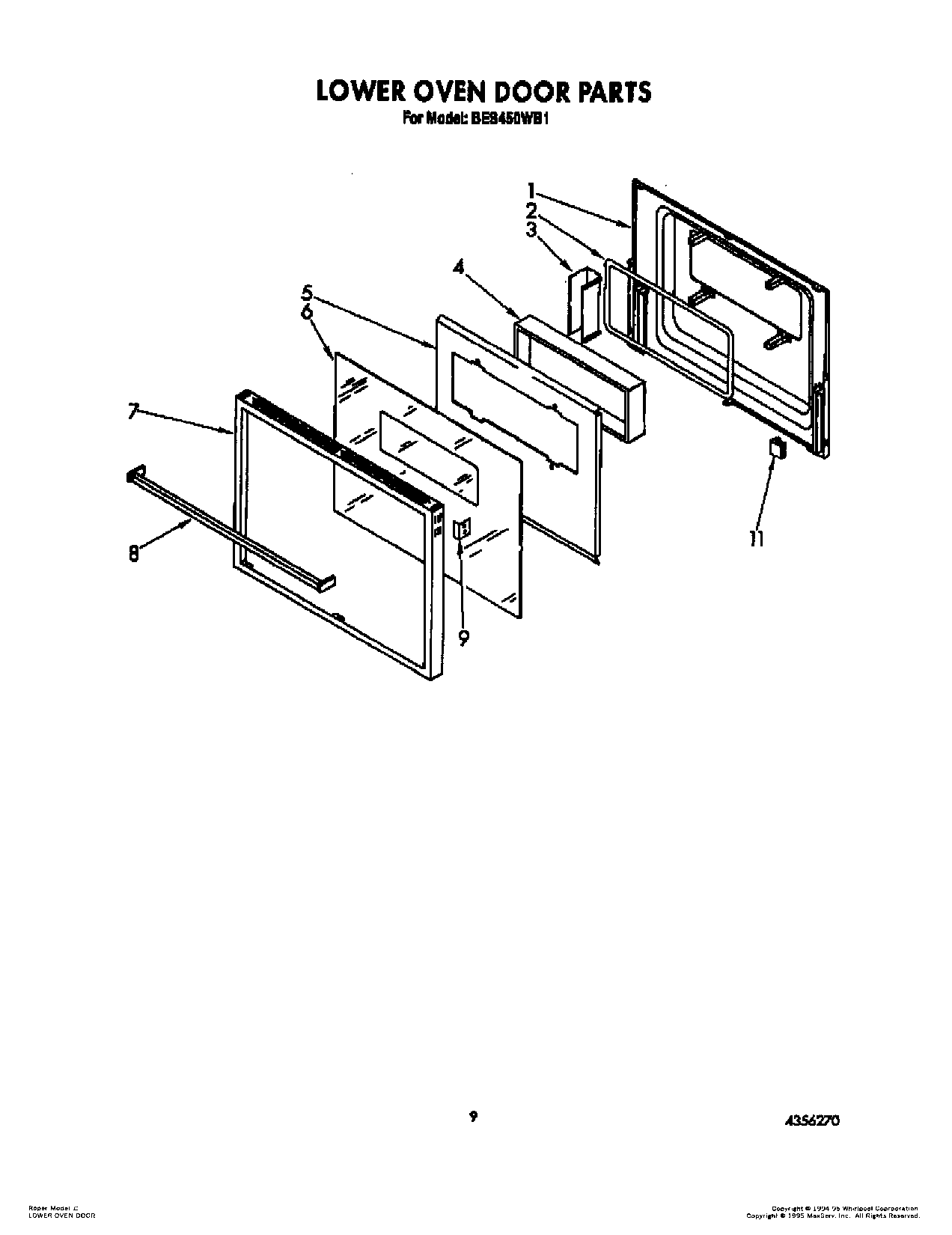

BES450WB1 08 – LOWER OVEN DOOR

BES450WB1 08 – LOWER OVEN DOOR

Written by

in

BES450WB1 08 – LOWER OVEN DOOR

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
4	Window Pack
5	WP90767 Whirlpool Screw
5	Retainer, Insulation
6	clip, glass (10)
6	Glass, Door (Black)
7	Frame, Door (Black)
8	Handle, Door
8	Screw (4)
9	Clip, Handle (2)
11	Bumper, Door Glass
