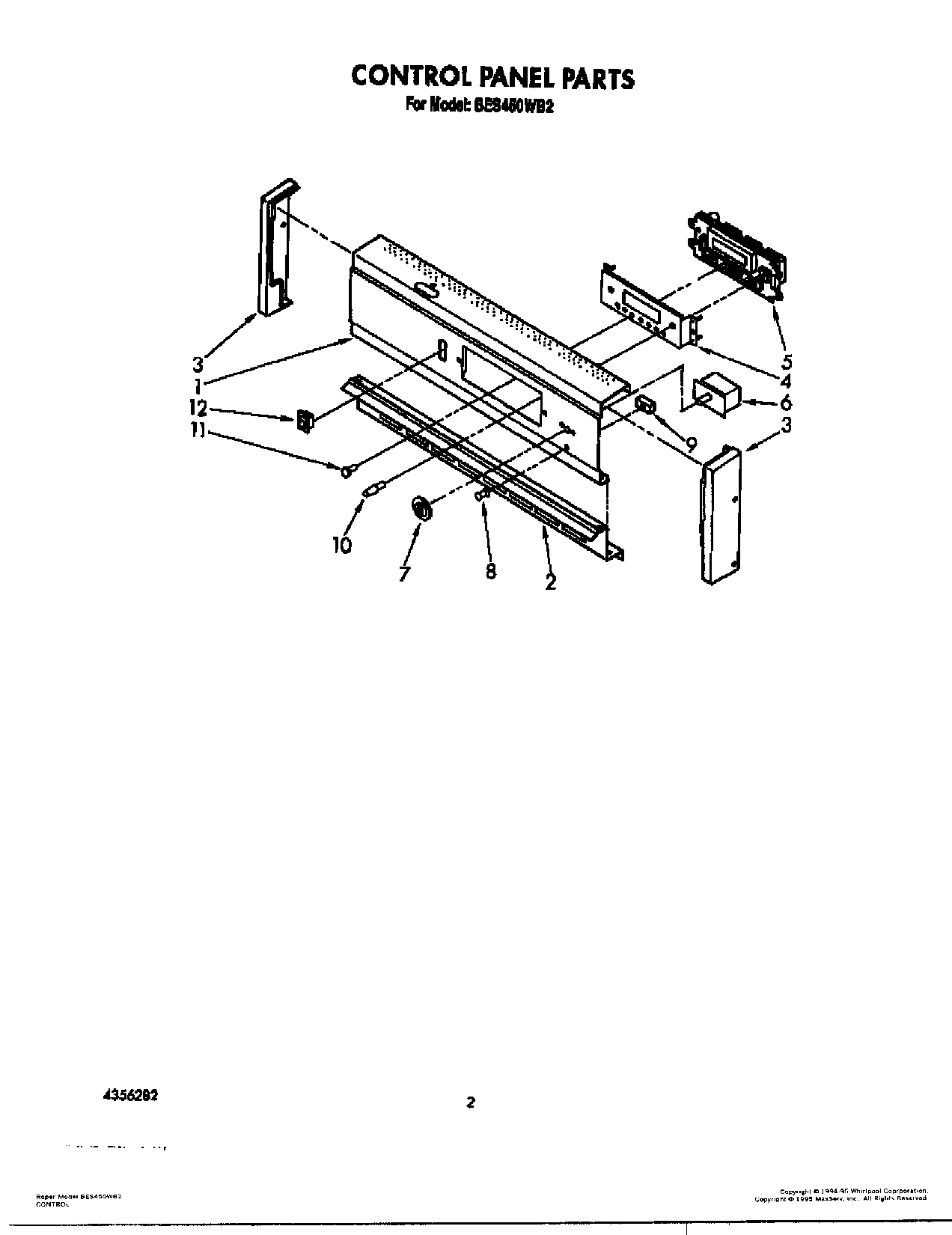

BES450WB2 02 – CONTROL PANEL

Products

PositionProduct
Repair Parts List
Installation Instructions
Tech Sheet
Use & Care Guide
1Panel, Control
2Insert, Control Panel (Flat Black)
3End Cap (Black, Right)
3End Cap (Black, Left)
4Glass, Control
5Screw
5Nut
5Oven, Control
6Screw (2)
6Thermostat, Lower Oven
7Knob, Thermostat
8Lens, Indicator
9Light, Indicator (250V)
10Knob, Bit Generator (Black)
11WPL 3149780
12WP4314961 Whirlpool Lite Switch
