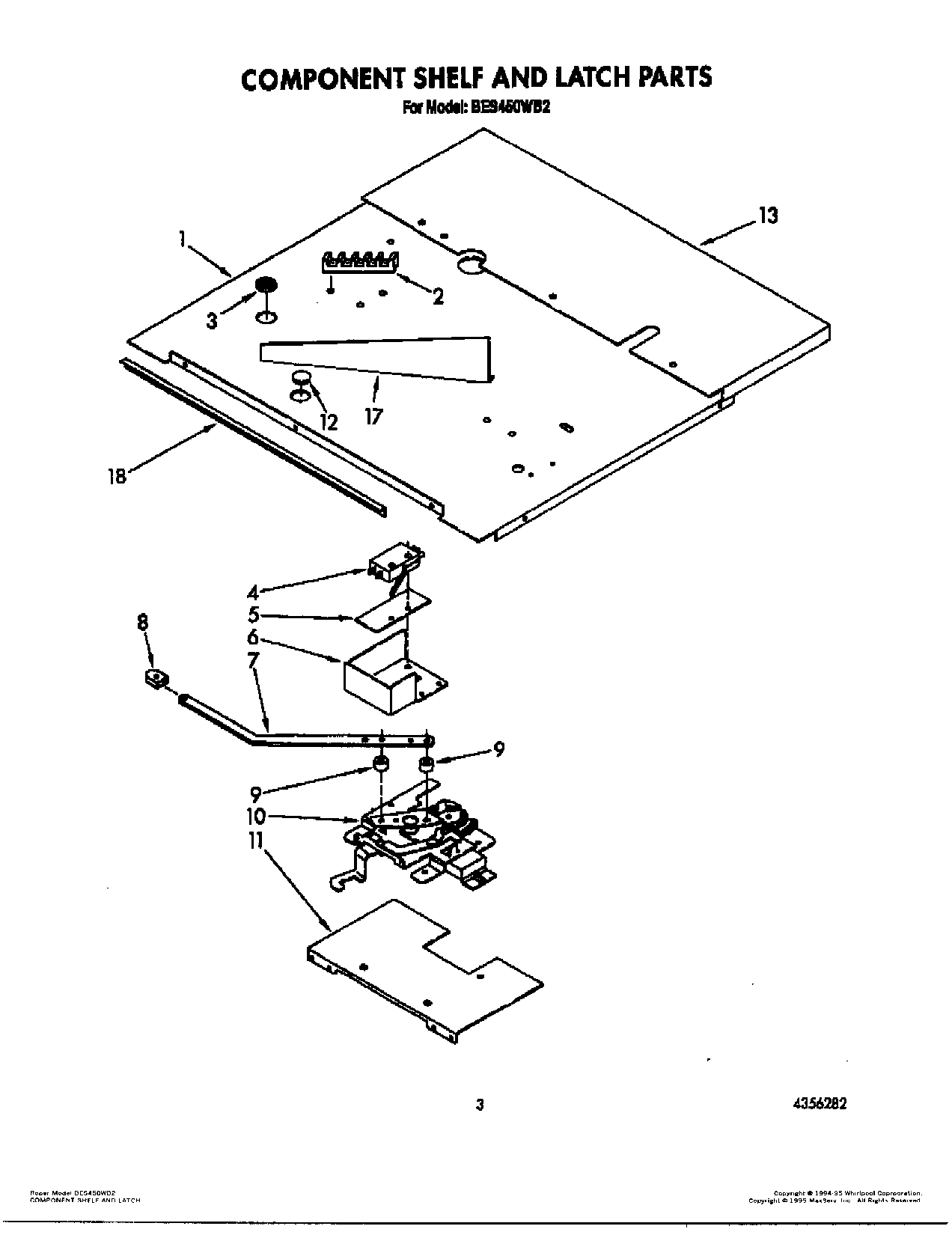

BES450WB2 03 – COMPONENT SHELF AND LATCHadmin2025-04-26T12:05:19+00:00BES450WB2 03 – COMPONENT SHELF AND LATCH
Products
| Position | Product |
|---|
| 1 | Shelf, Component |
| 2 | WP8203546 Whirlpool Terminal Block |
| 3 | Bushing |
| 4 | Switch, Latch |
| 4 | Screw |
| 5 | Insulator, Switch |
| 6 | Guard, Latch |
| 6 | Screw, |
| 7 | Handle, Latch |
| 7 | Screw (2) |
| 8 | Screw |
| 8 | Knob, Latch Handle |
| 9 | Spacer, Handle (2) |
| 10 | Latch, Mechanism |
| 11 | Plate, Mounting |
| 11 | Screw |
| 11 | Screw, 8-18 X 3/4 (4) |
| 12 | Plug, Button |
| 13 | Extension, Shelf |
| 13 | WP112432 Whirlpool Nut Assembly |
| 17 | Baffle, Air |
| 18 | Shield, Heat |
| 18 | WP3177991 Whirlpool Screw |
