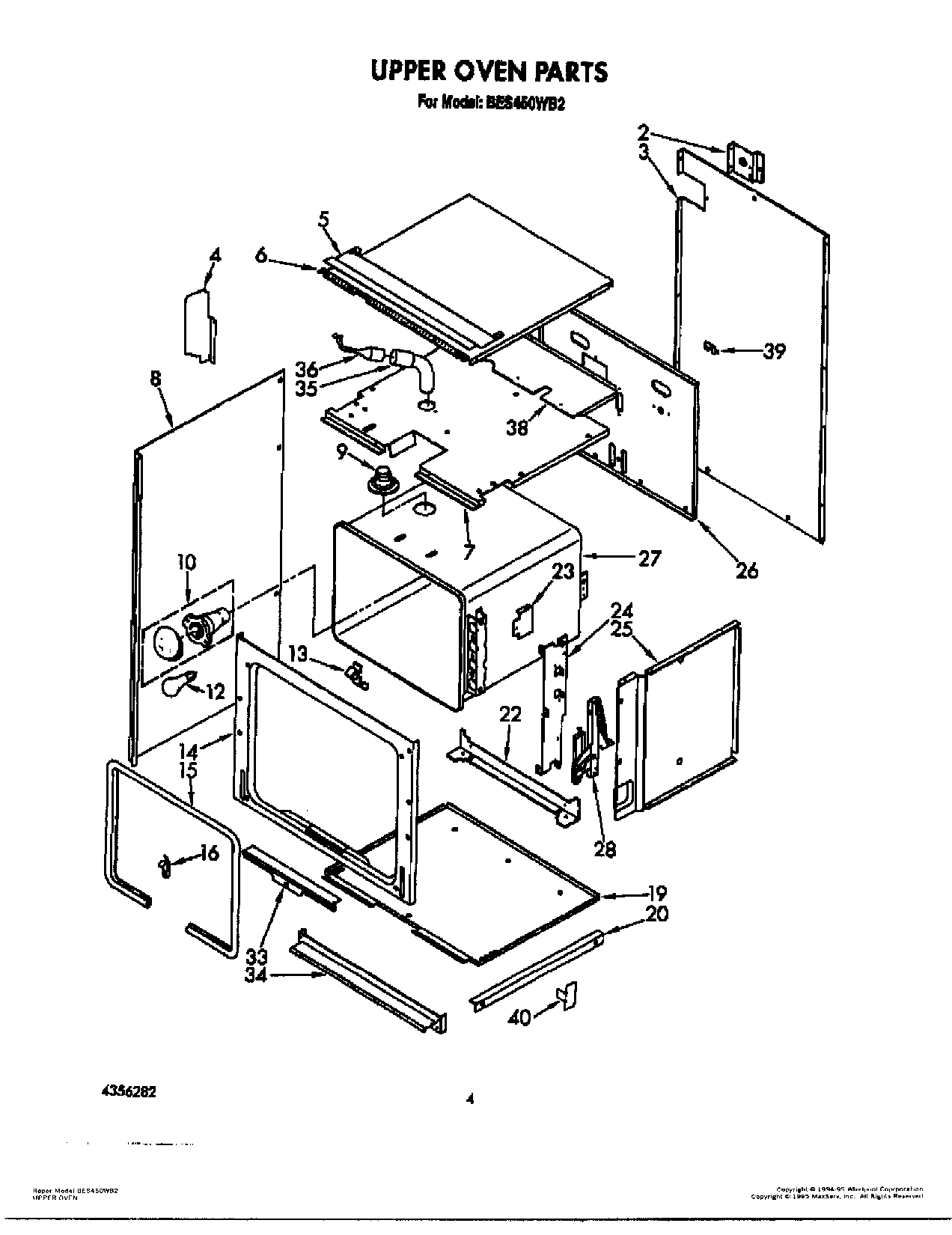

BES450WB2 04 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Screw,
4	Baffle, End Cap (Right Hand)
4	Baffle, End Cap (Left Hand)
5	Baffle, Control Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
33	Retainer, Seal
33	Screw (4)
33	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
36	Screw
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Screw
39	Cover, Cap Tube
40	WPL 3177870
40	Insulation, Wrap
40	Insert, Middle Trim
40	Screw
