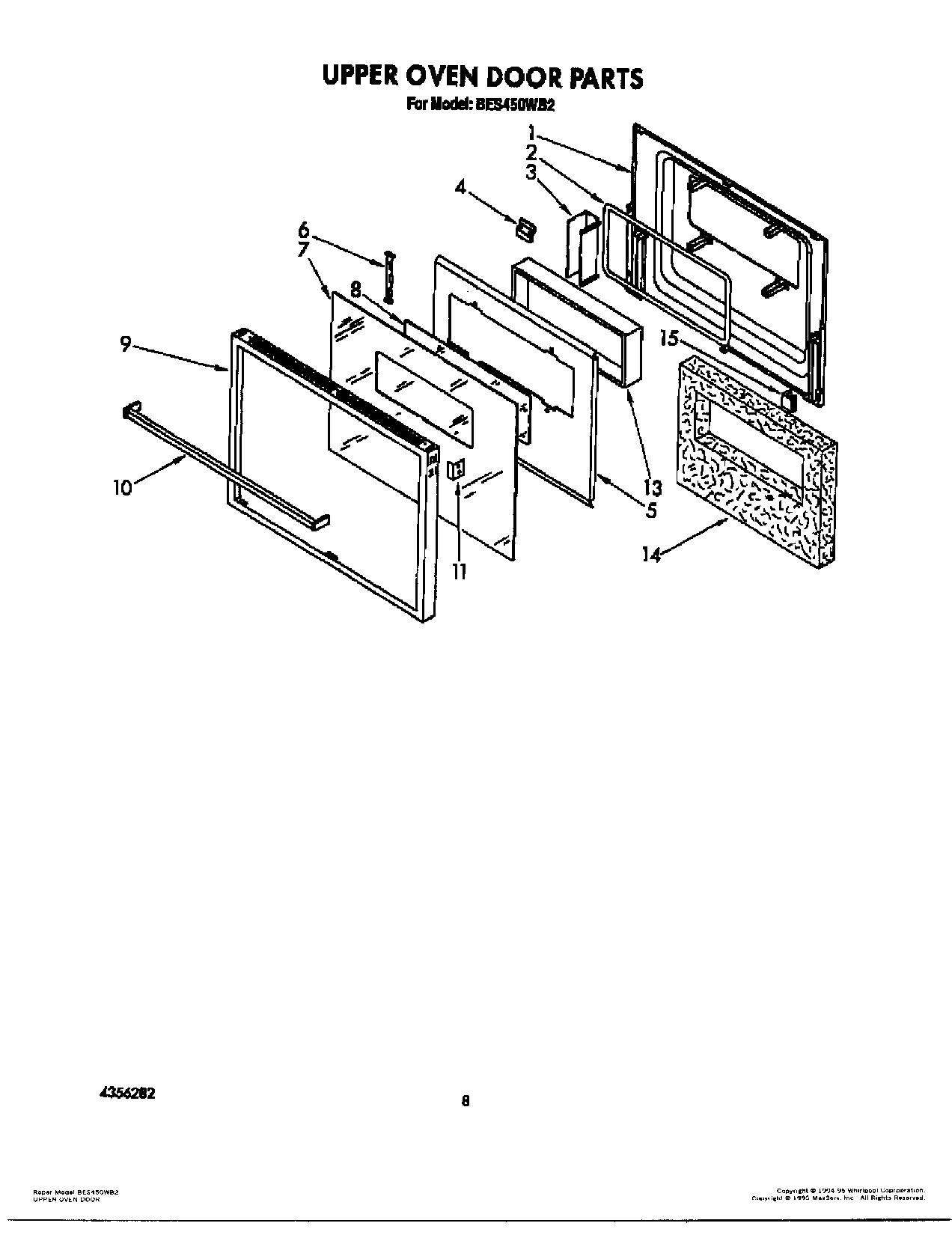

BES450WB2 07 – UPPER OVEN DOOR

BES450WB2 07 – UPPER OVEN DOOR

Written by

in

BES450WB2 07 – UPPER OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Black)
7	clip, glass (10)
8	Glass, Reflective
9	Frame, Door (Black)
10	Screw (4)
10	Handle, Door
11	Clip, Handle (2)
13	Window Package
14	Insulation, Door
15	Bumper, Door Glass
