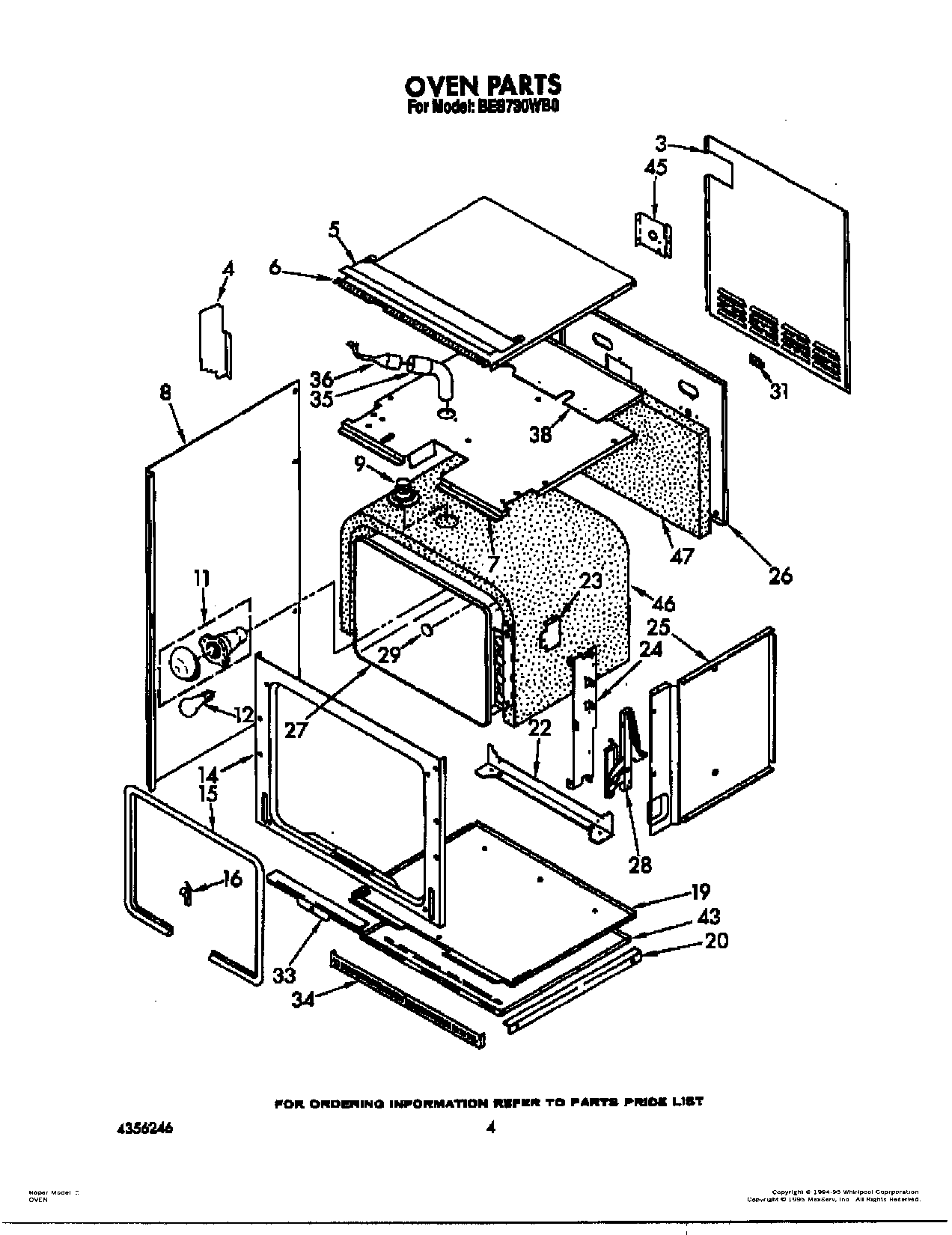

BES730WB0 04 – OVEN

Products

Position	Product
3	Cabinet, Back
4	Screw,
4	Baffle, End Cap (Right Hand)
4	Baffle, End Cap (Left Hand)
5	Baffle, Control Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
31	Cover, Cap Tube
31	Screw
33	Retainer, Seal
33	Screw (4)
33	SCREW
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (4))
34	Trim, Lower Vent (White Model)
35	Vent, Tube (Upper, Female)
36	WP90767 Whirlpool Screw
36	Vent, Tube (Upper, Male)
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
43	Bottom, Oven
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
