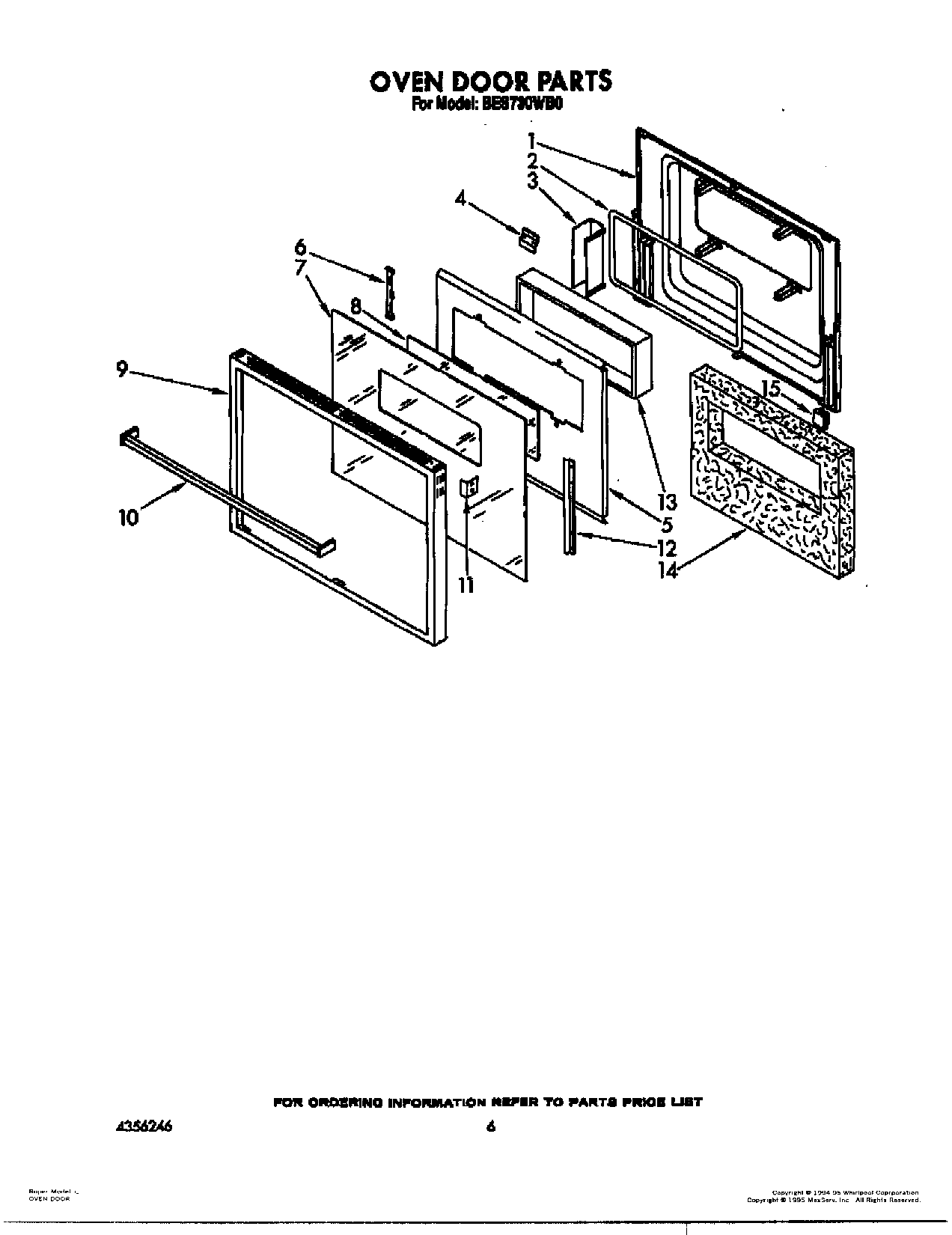

BES730WW0 05 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (Black)
7Glass, Door (White)
7clip, glass (10)
8Glass, Reflective
9Frame, Door (White)
9Frame, Door (Black)
10Handle, Door (White)
10Handle, Door (Black)
11Clip, Handle (2)
11Screw (4)
12Retainer, Glass
12Screw, Black (2)
13Window Package
14Vent, Lower Trim (Screw (2))
14Insulation, Door
15Bumper, Door Glass
