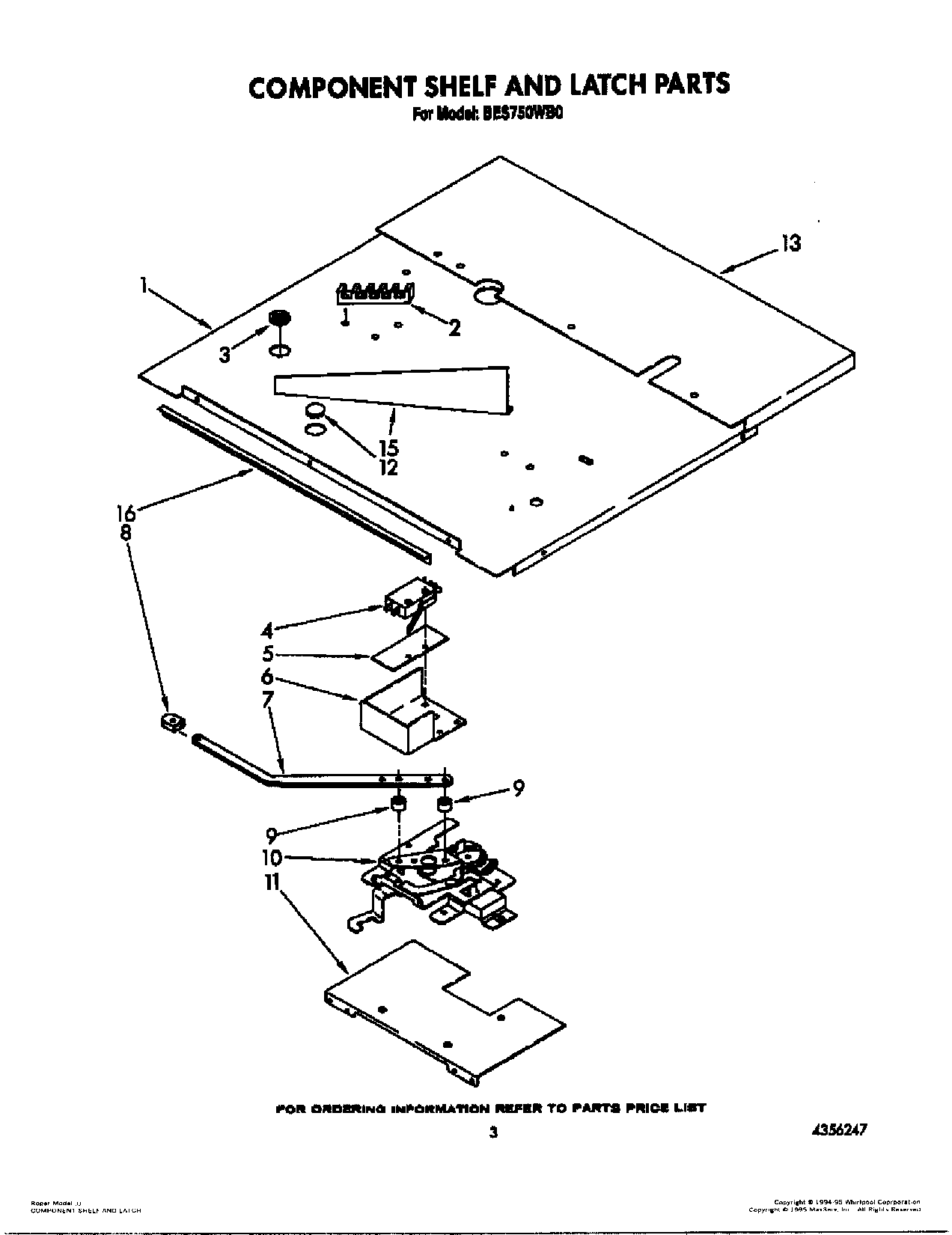

BES750WB0 03 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	WP90767 Whirlpool Screw
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
2	W10841059 Whirlpool Screw
3	Bushing
4	Switch, Latch
4	Screw
5	Insulator, Switch
6	Guard, Latch
6	Screw,
7	Handle, Latch
7	Handle, Latch (Screw (2))
7	Screw (2)
8	WP488234 Whirlpool Air Conditioner Screw
8	Knob, Latch Handle
9	Spacer, Handle (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
15	Baffle, Air
16	WP3177991 Whirlpool Screw
16	Shield, Air
