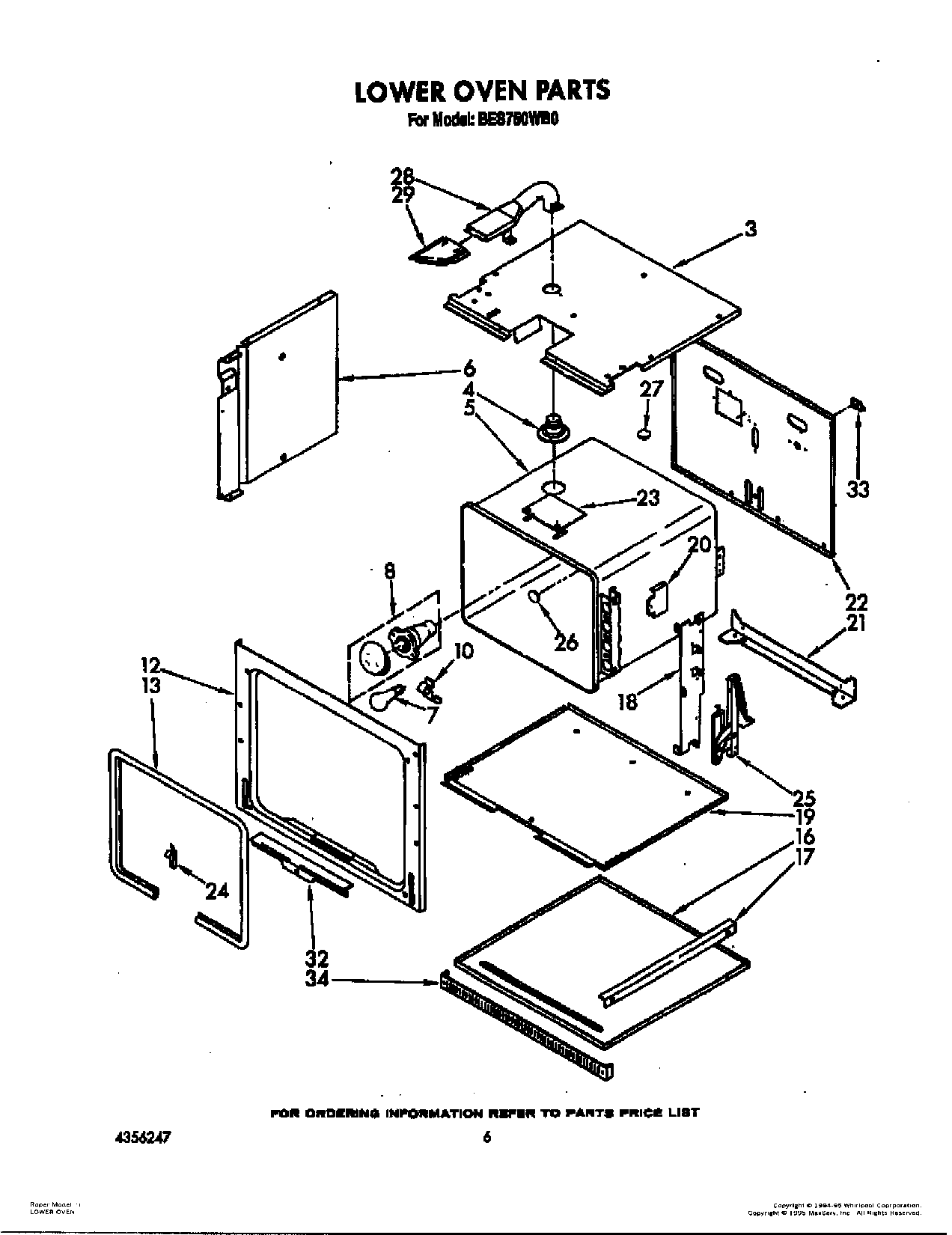

BES750WB0 05 – LOWER OVEN

BES750WB0 05 – LOWER OVEN

Written by

in

BES750WB0 05 – LOWER OVEN

Products

PositionProduct
3Top, Module
4Tube, Vent
5Liner, Oven
6Side, Module (R.H. & L.H.)
7RANGE ONLY 40W 120V APPL BULB
8W11594027 Whirlpool Range Oven Light Socket
1098005642 Whirlpool Clip
12Screw (4)
12Frame, Front
13Seal, Door
16Bottom, Oven
17Rail, Support (2)
18Bracket, Hinge
19Bottom, Modual
20Shield, Radiation
21Support, Oven
22Back, Module
23Screw (3)
23Cover, Latch Mtg.
24Clip, Oven Seal
25Hinge, Door
25Screw (6)
26Button, Plug
27Button, Plug
28WP90767 Whirlpool Screw
28Tube, Vent Male
29Tube, Vent
32SCREW
32Retainer, Seal
33Cover, Cap Tube
33Screw
34Insulation, Oven
34Vent, Lower Trim (Black)
34Insulation, Back
