BES750WB0 07 – LOWER OVEN DOOR

BES750WB0 07 – LOWER OVEN DOOR

Written by

in

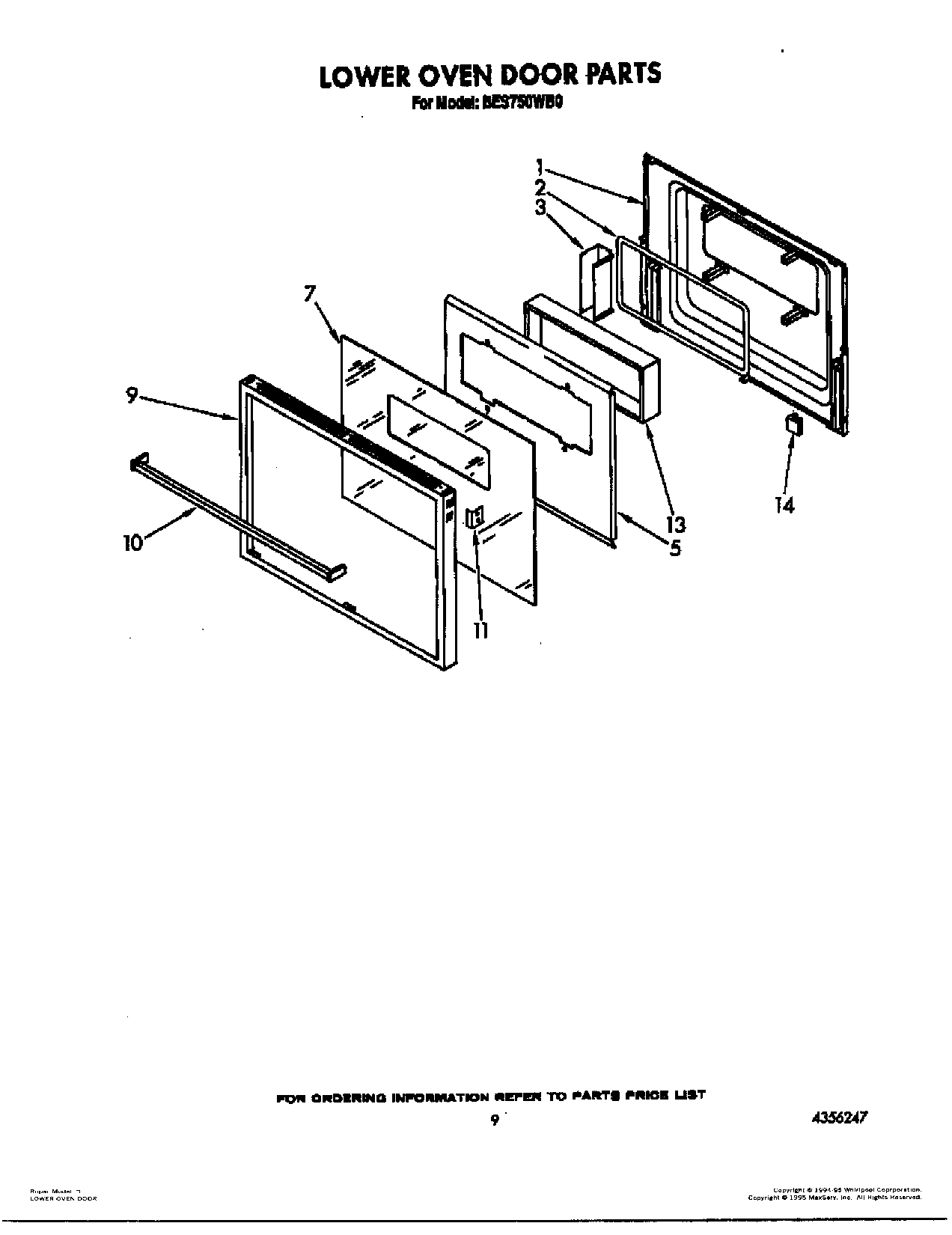

BES750WB0 07 – LOWER OVEN DOOR

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
5	WP90767 Whirlpool Screw
5	Insulation, Retainer
7	Glass, Door (Black)
7	clip, glass (10)
9	Frame, Door (Black)
10	Screw (4)
10	Handle, Door (Black)
11	Clip, Handle (2)
13	Window Package
14	Bumper, Door Glass
