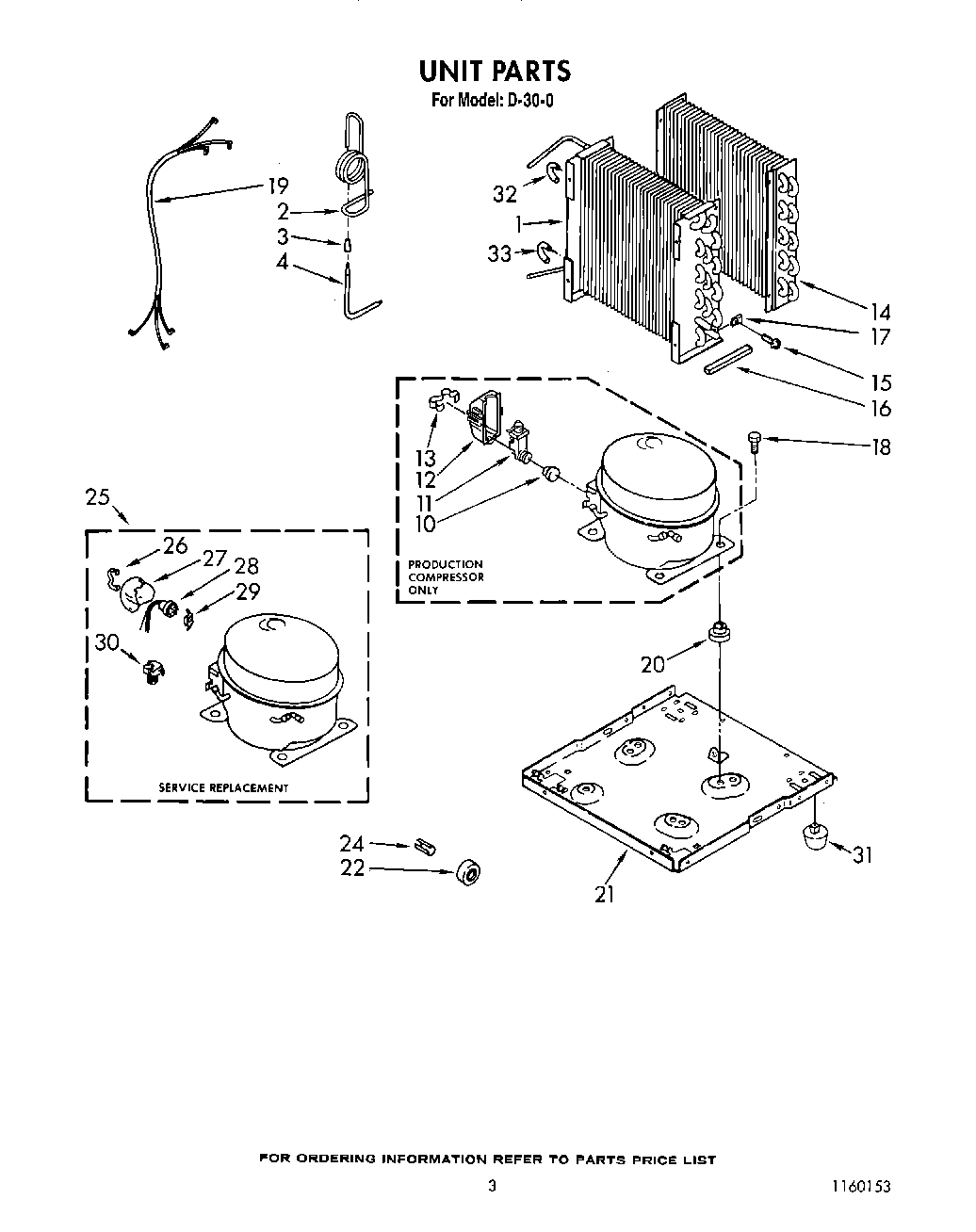

BFD300 03 – SECTION

Products

Position	Product
1	WPL 1159231
2	WPL 1158545
3	Strainer
4	Tube, Outlet (Includes No.3)
10	Overload (Production)
11	Relay, Start (Production)
12	Cover, Terminal (Production)
13	Strap
14	WPL 1159233
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
24	Pin, Roller (2)
25	Compressor, Service (Complete Assembly)
26	Retainer, Cover (Service)
27	Cover, Terminal (Service)
28	Overload (Service)
29	Spring, Overload
30	Relay, Start (Service)
31	Glide (2)
32	Bend, Return Evaporator (11)
33	Bend, Return Evaporator (4)
