BFD401 02 – SECTION

Written by

BFD401 02 – SECTION

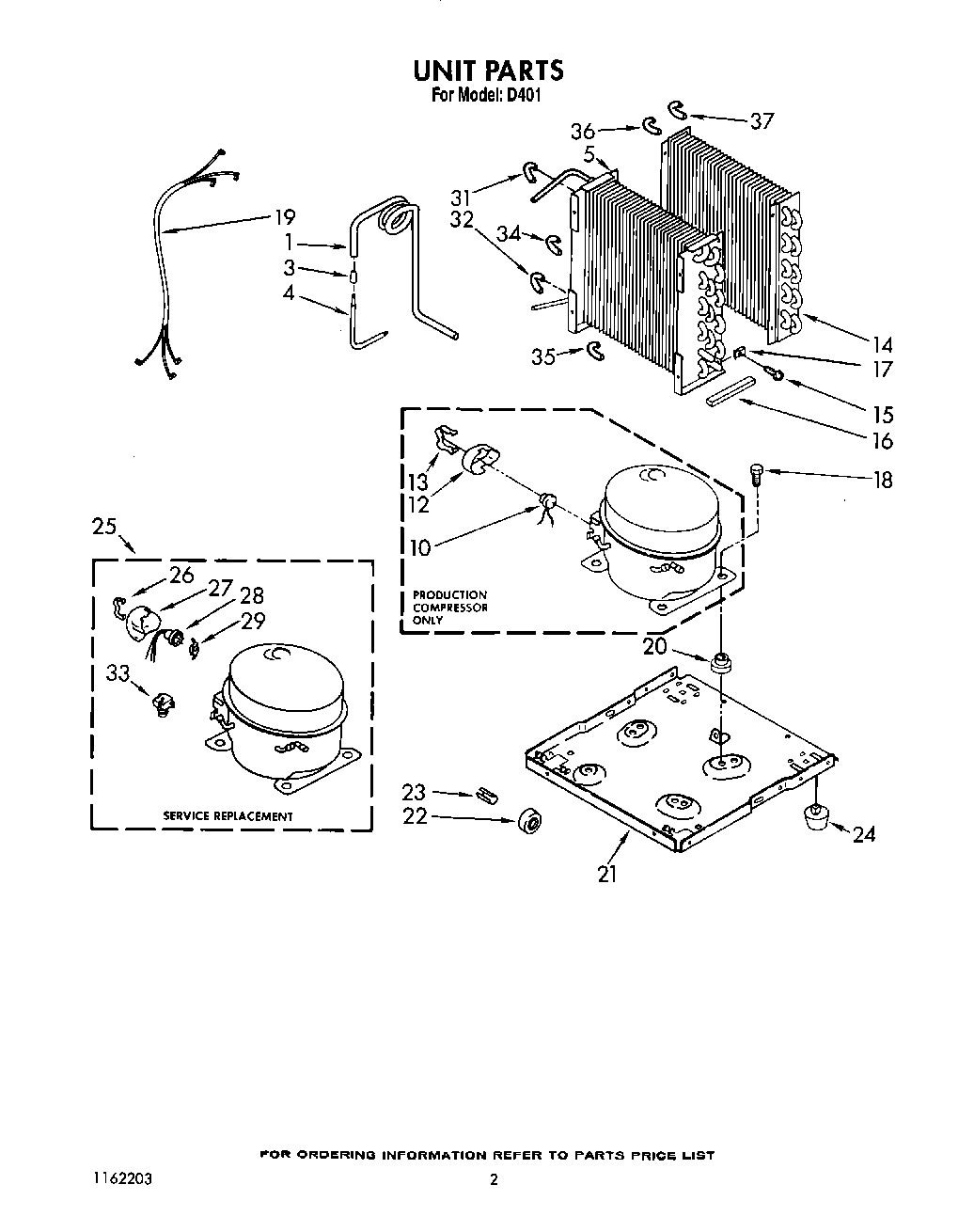

Products

Position	Product
1	Tube, Restrictor (Length 36.0“)
3	Strainer
4	Tube, Outlet (Includes No.3)
5	Condenser
9	Relay, Start (Production)
10	Overload (Production)
12	Cover, Terminal (Production)
13	Strap
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	Compressor, Service (Complete Assembly)
26	Retainer, Cover (Service)
27	Cover, Terminal (Service)
28	Overload (Service)
29	Spring, Overload
31	Bend, Return Condenser (2)
32	Return Bend (30)
33	Relay, Start (Service)
34	Return Bend (2)
35	WPL 1160080
36	Bend, Return Evaporator (11)
37	Bend, Return Evaporator (4)
