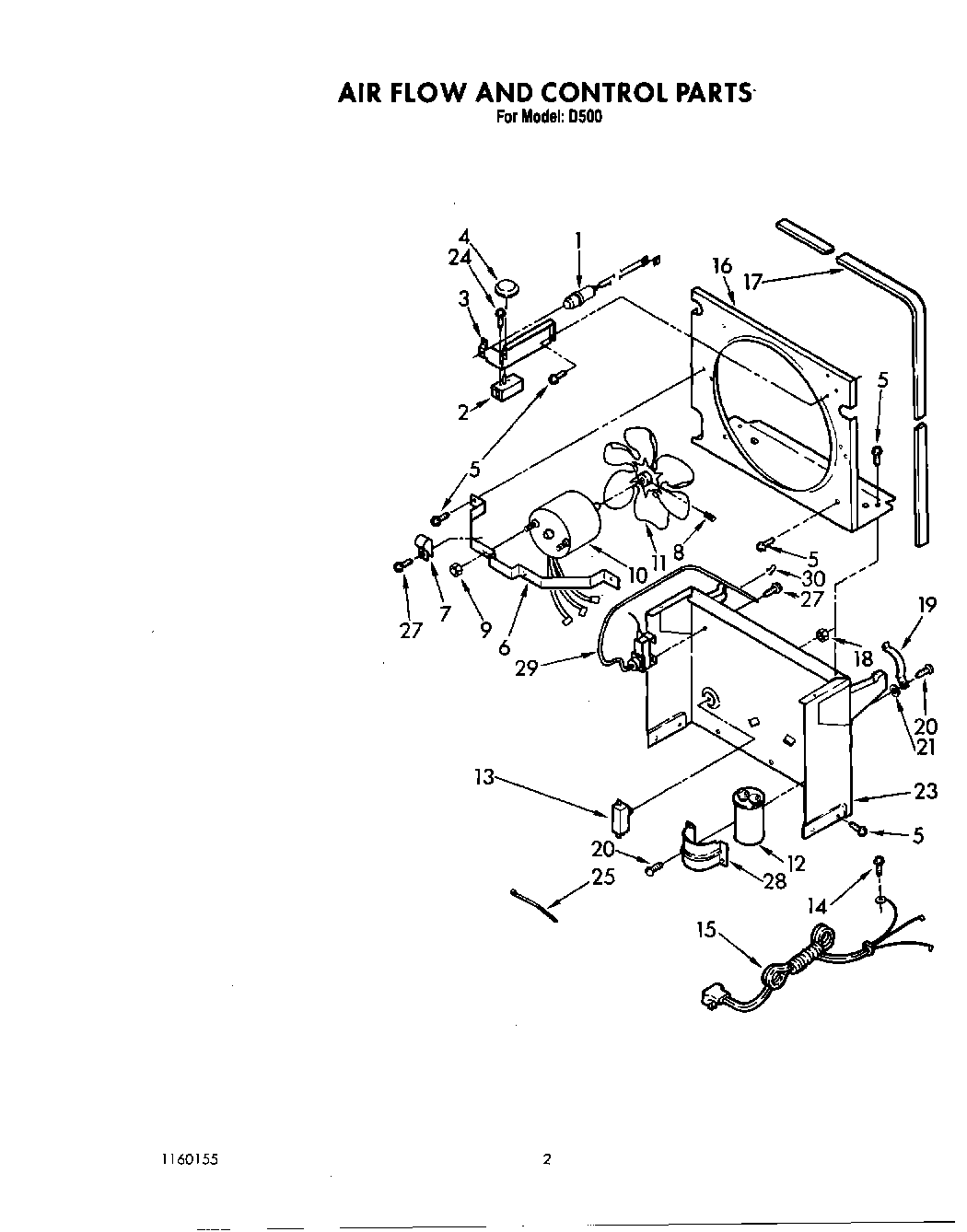

BFD500 02 – SECTION

Products

Position	Product
1	Light, Indicator
2	Humidistat, Control
3	Bracket, Control
4	Knob, Humidistat Control
5	Screw, 8 x 3/8
6	Bracket, Fan Motor Mounting
8	Setscrew, 1/4 x 5/16
9	WP488130 Whirlpool Air Conditioner Nut
10	WPL 1156857
11	Blade, Fan
12	Capacitor, Run
13	Switch, Water Level Control
14	WPW10141604 Whirlpool Screw
15	Cord, Appliance
16	Plate, Orifice
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	WP488163 Whirlpool Refrigerator Screw
21	Washer (Repair) (.091 Thickness)
21	Washer (Repair) (.062 Thickness)
21	Washer, Repair (.045 Thickness)
23	Support
24	WP3177991 Whirlpool Screw
25	WPW10339879 Whirlpool Wire Tie
27	WP488234 Whirlpool Air Conditioner Screw
28	Bracket, Capacitor
29	Thermostat, De-Icer
30	Clamp, Tube To Evaporator Mtg (2)
