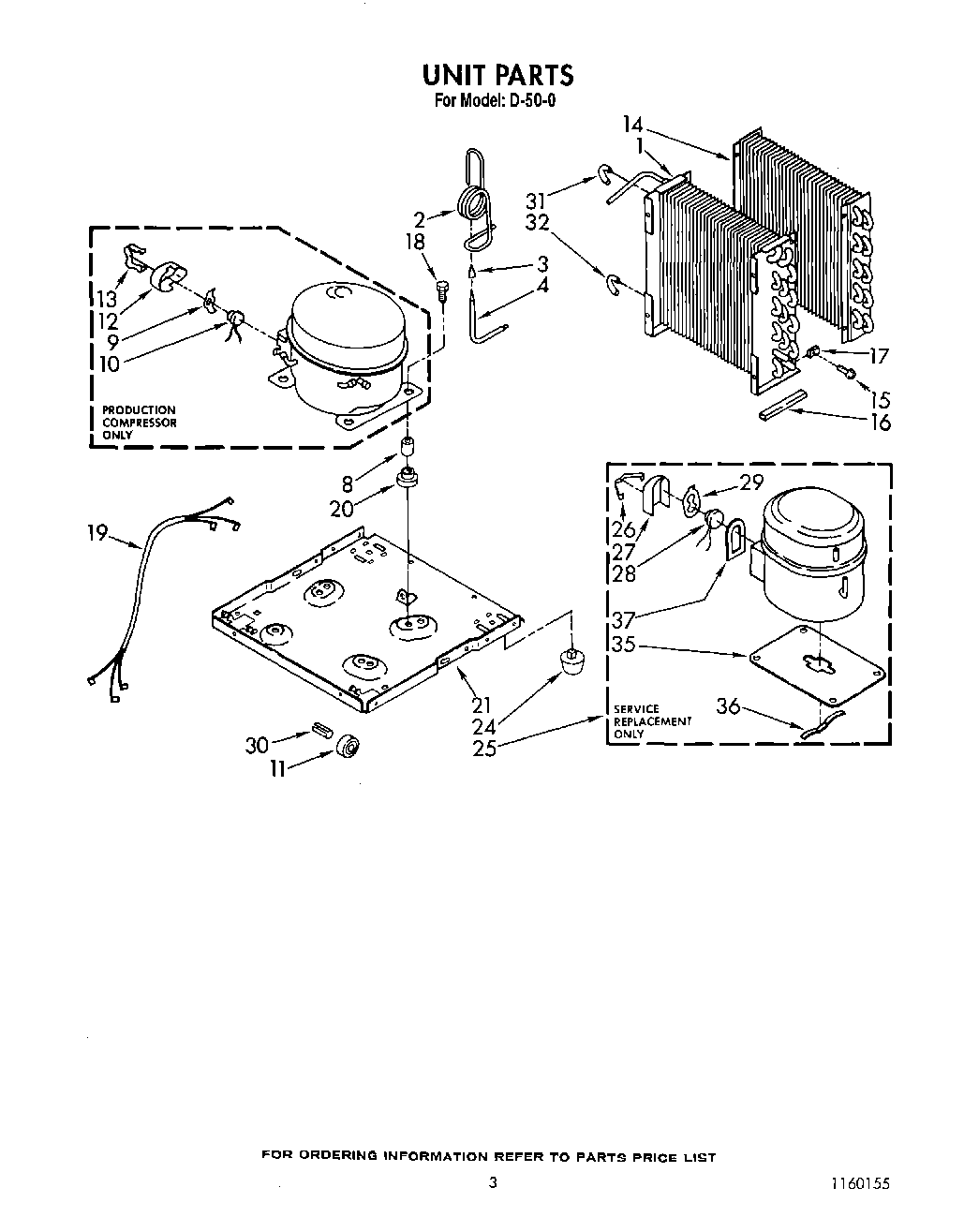

BFD500 03 – SECTION

Products

Position	Product
1	Condenser
2	Tube, Restrictor (46.0“ Length)
3	Strainer
4	WPL 951349
8	Sleeve (4)
9	Spring, Overload
10	Overload (Production)
11	Roller (2)
12	Cover, Terminal
13	Retainer, Cover
14	WPL 1159235
15	Screw, 8 x 3/8
16	Seal
17	488660 Whirlpool Refrigerator Nut
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
24	Glide (2)
25	Compressor, Service (Complete Assembly)
26	Retainer, Cover
27	Cover, Terminal
28	Overload
29	Spring, Overload
30	Pin, Roller (2)
31	Bend, Return Evaporator (11)
32	Bend, Return Evaporator (4)
35	Plate, Compressor
36	Spring, Clip
37	PTC Clamp
37	PTC Start Device
37	Wire Assy. (2)
37	Gasket, Cover
37	WP489069 Whirlpool Compactor Screw
