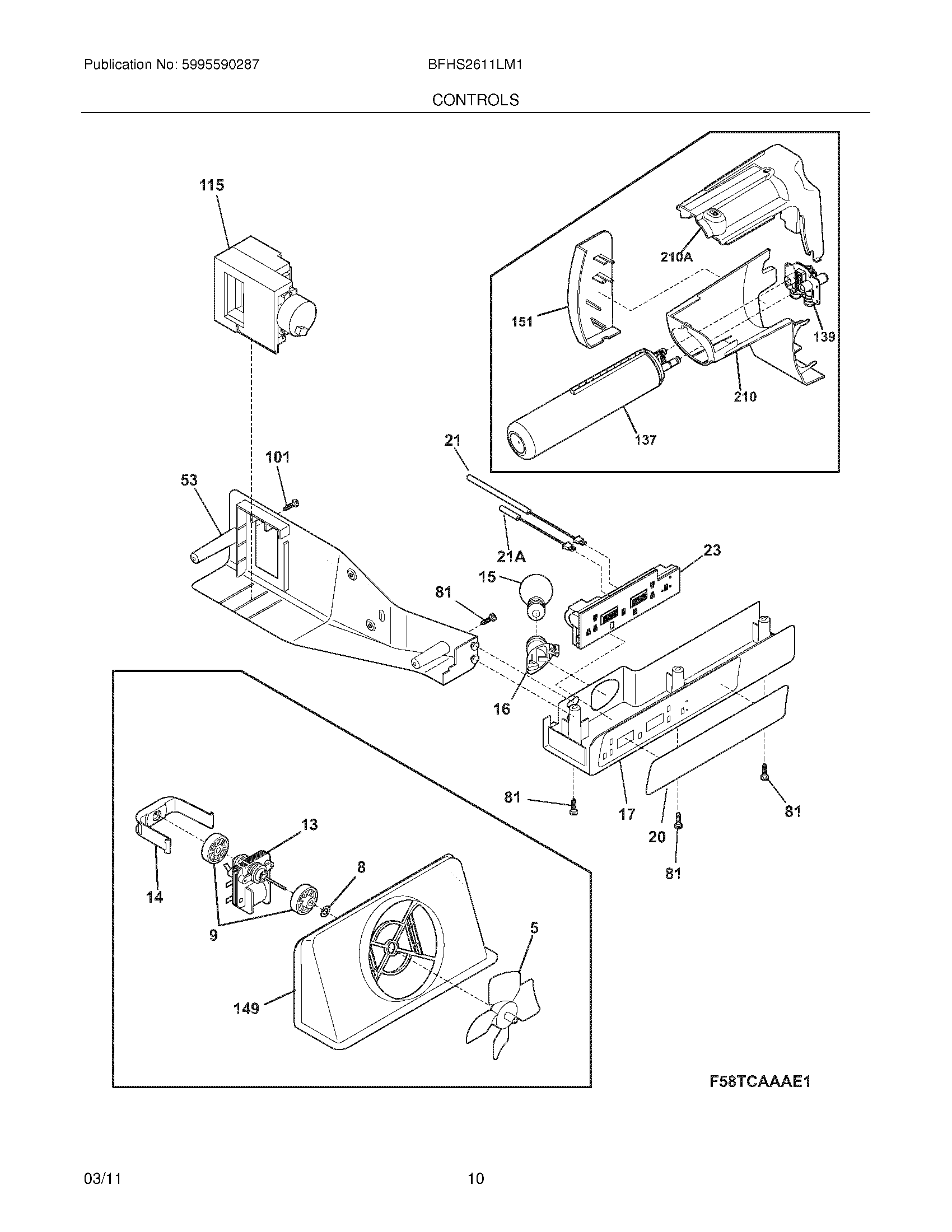

BFHS2611LM1 11 – CONTROLS

BFHS2611LM1 11 – CONTROLS

Written by

in

BFHS2611LM1 11 – CONTROLS

Products

PositionProduct
NI5304535377 Frigidaire Aluminum Tape
NIWCI 241737801
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8215474201 Frigidaire Refrigerator Washer
9241563601 Frigidaire Refrigerator Motor Mounting Bushing
13808602602 Frigidaire Refrigerator Motor
14242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17241633511 Frigidaire Refrigerator Control Box
20241604010 Frigidaire Refrigerator Label-Control Box
21241608401 Frigidaire Refrigerator Thermistor
21A241608501 Frigidaire Refrigerator Freezer Thermistor
23WCI 241739704
53241608902 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101241637202 Frigidaire Refrigerator Screw
115241600906 Frigidaire Refrigerator Damper Control Assembly
137WF3CB Frigidaire PureSource Water Filter
139242009602 Frigidaire Refrigerator Water Filter Base
149242204506 Frigidaire Refrigerator Shroud Assembly
149241528303 Frigidaire Refrigerator Seal
151242069701 Frigidaire Refrigerator Cover-Water Filter
210241998303 Frigidaire Refrigerator Water Filter
210241983814 Frigidaire Refrigerator Water Filter Housing
