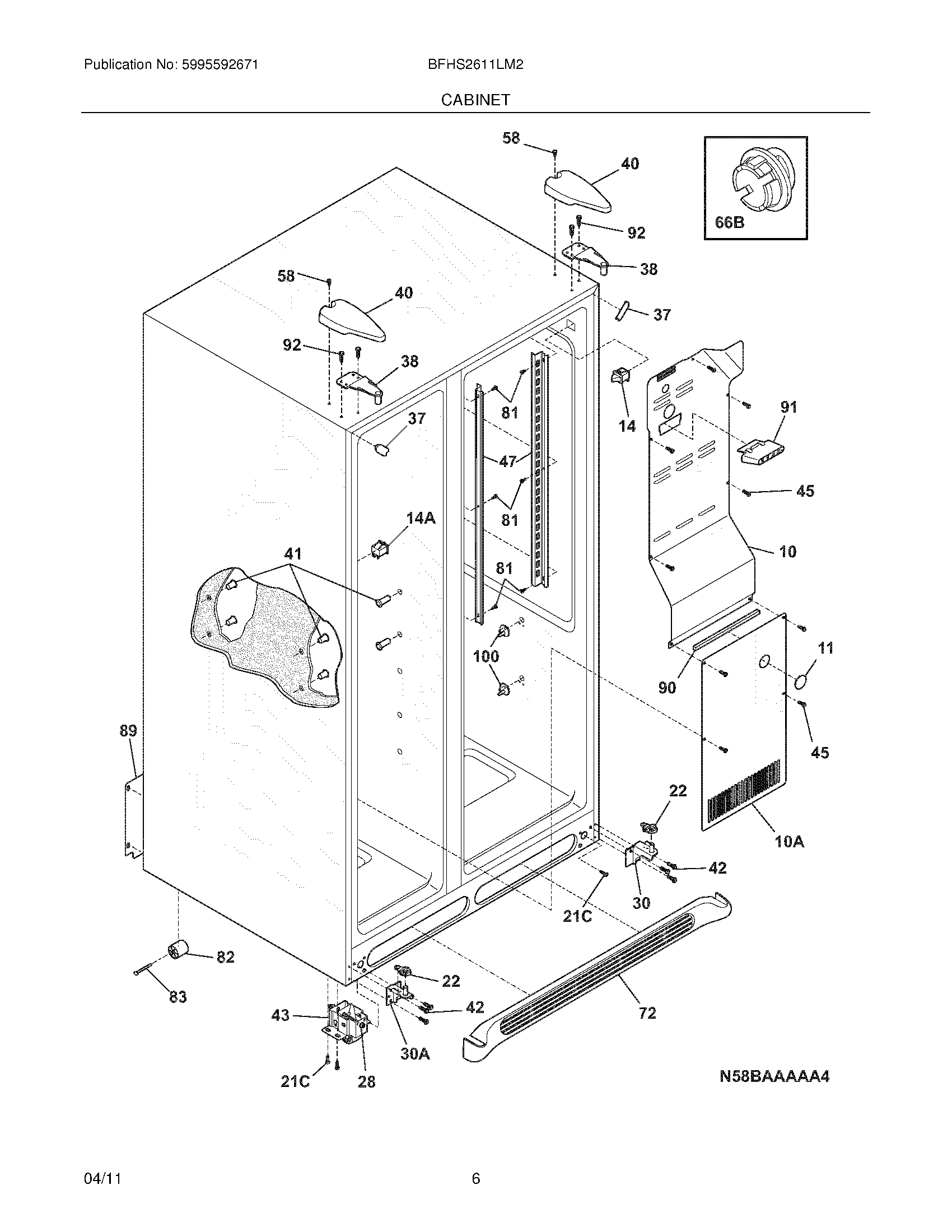

BFHS2611LM2 07 – CABINET

BFHS2611LM2 07 – CABINET

Written by

in

BFHS2611LM2 07 – CABINET

Products

Position	Product
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	240494001 Frigidaire Refrigerator Plug Button
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
10	240435912 Frigidaire Refrigerator Cover-Air Duct
11	5303208309 Frigidaire Refrigerator Plug Hole
14	240505801 Frigidaire Light Switch
14A	241547902 Frigidaire Refrigerator Light Switch
21C	218252201 Frigidaire Refrigerator Screw
22	241856502 Frigidaire Door Closer Plate
30A	242034604 Frigidaire Refrigerator Lower Hinge Bracket
30	242034601 Frigidaire Refrigerator Bracket-Lower Hinge
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240327207 Frigidaire Refrigerator Bracket Upper Hinge
40	240327007 Frigidaire Refrigerator P-1 Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	WCI 218659500
58	218781101 Frigidaire Handle Screw
66B	WCI 240374301
66B	240518802 Frigidaire Refrigerator Push Pin
72	240324411 Frigidaire Grille Kickplate
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
100	CRISPER COVER SUPPORT
