BFHS2611LM2 13 – SYSTEM

BFHS2611LM2 13 – SYSTEM

Written by

in

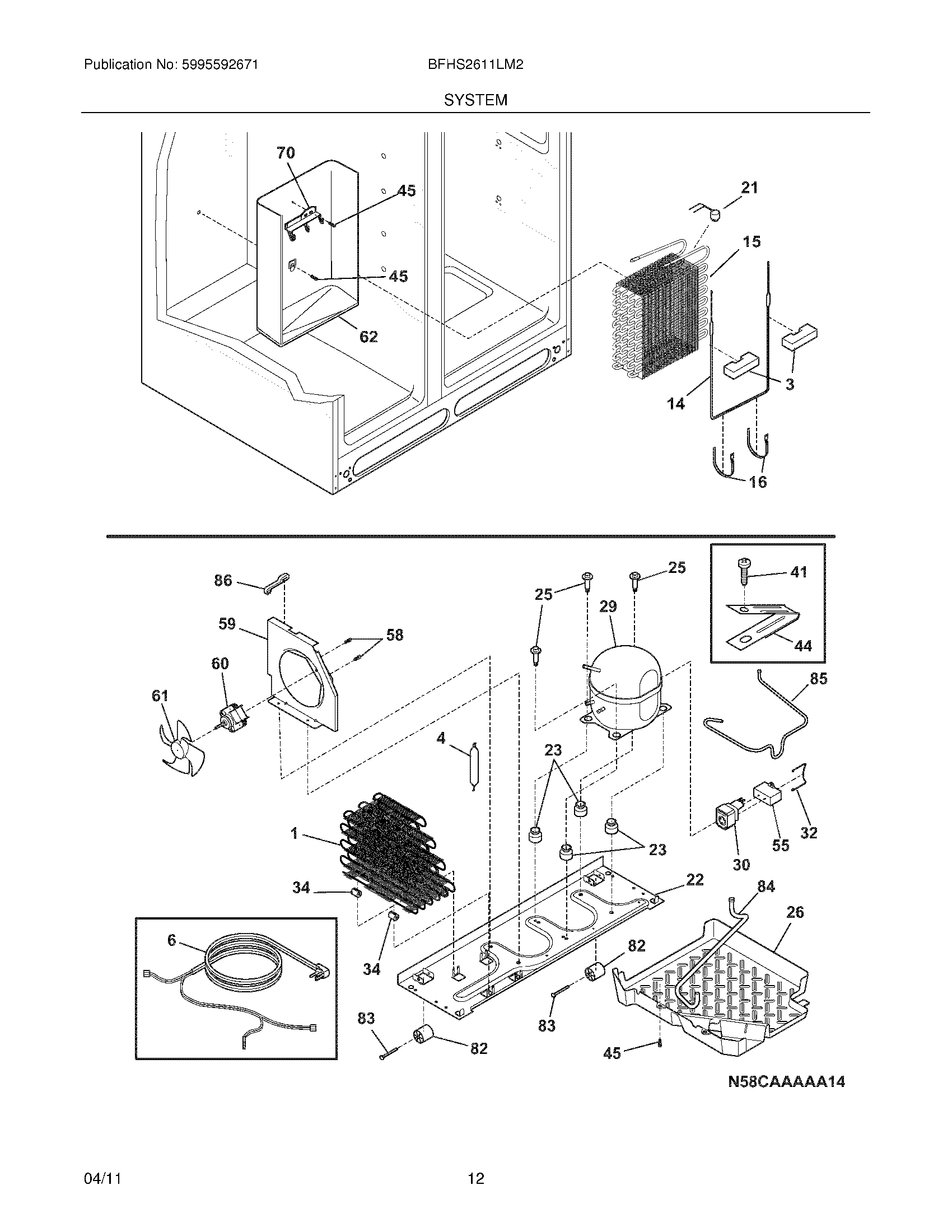

BFHS2611LM2 13 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NIWCI 5303918222
NIWCI 241737801
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
15304526057 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 241586801
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22WCI 240330012
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 240491503
26241697603 Frigidaire Defrost Pan
295304511982 Frigidaire Refrigerator Compressor Kit
30241941003 Frigidaire Refrigerator Relay Starter
32Clip,controller ,compressor
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
625304532798 Frigidaire Refrigerator Drain Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
85241856909 Frigidaire Refrigerator Connector Tube
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
