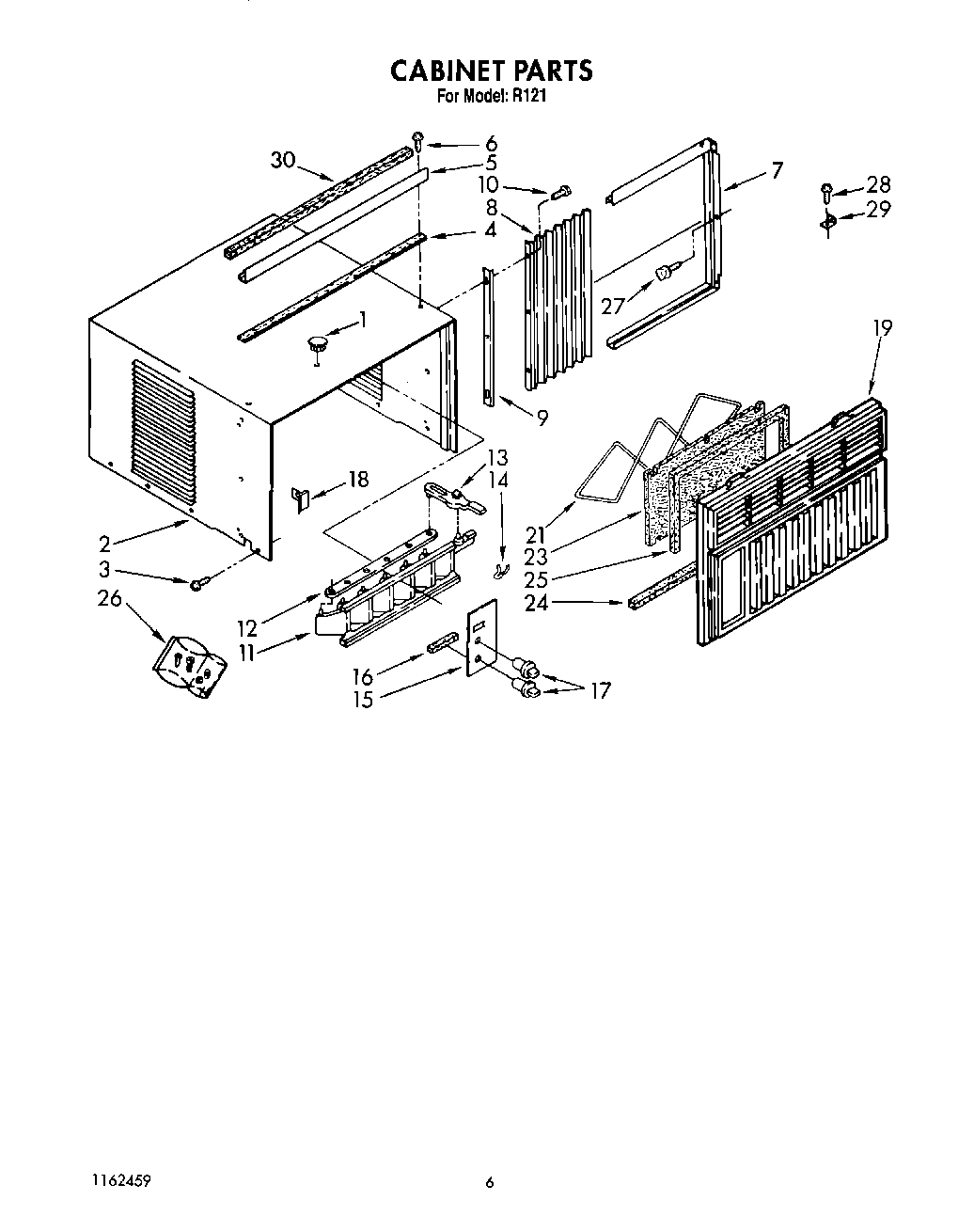

BFR121 04 – CABINET

Products

Position	Product
1	Cover, Hole
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top Mounting
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain (R.S.)
7	Housing, Curtain L.S.
8	Curtain (2)
9	Retainer, Curtain
10	Screw, 8-18 x 3/8
11	Louver, Vertical
12	Link, Louver
13	Handle, Louver
14	Detent Spring (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (3)
18	Clip, Vertical Louver
19	Front
21	Retainer, Filter
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
27	Thumbscrew (2)
28	Screw, Wood 8-15 x .750
29	Bracket
30	Gasket, Meeting Rail
