BFR243 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Sheet, Tech And Wiring Diagram
	Guide, Operating
	Instructions, Installation
	List, Repair Parts
	Wiring Diagram

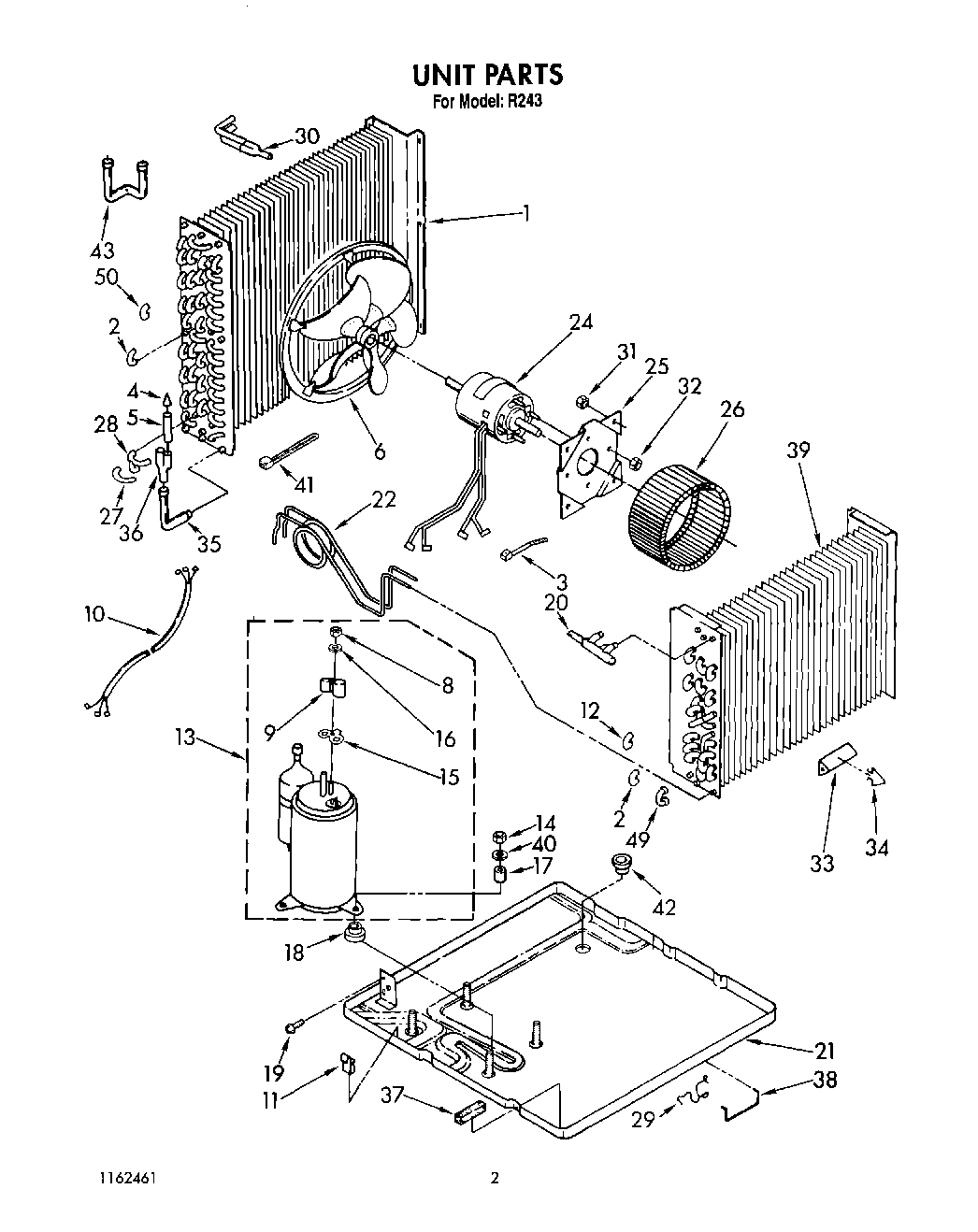

1	Condenser
2	Bend, Return Evaporator (11)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Blade, Fan
8	WP950027 Whirlpool Mounting Nut
9	WP950036 Whirlpool Cover Assembly
10	Harness, Wiring
11	Clamp, Restrictor Tube
12	Bend, Return Condenser (3) Evaporator (1)
13	Compressor
14	Locknut (3)
15	WP950035 Whirlpool Cover Gasket
16	Gasket, Nut
17	Sleeve (3)
18	Grommet (3)
19	WP488729 Whirlpool Refrigerator Door Screw
20	Tube, Manifold
21	Base
22	Tube, Restrictor (3) (53.0“ Length)
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	Bend, Return
28	Bend, Return (3-Way)
29	Clip, Mtg. (3)
30	Divider, Complete
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
35	Tube, Outlet
36	Tube, Flow Divider
37	Seal
38	WPL 647971
39	Evaporator
40	Washer, Flat (3)
41	WPW10339879 Whirlpool Wire Tie
42	Bushing, Base
43	Tube, Riser (2)
49	WP855199 Whirlpool Bend Return
50	Bend, Return Evaporator (4)
