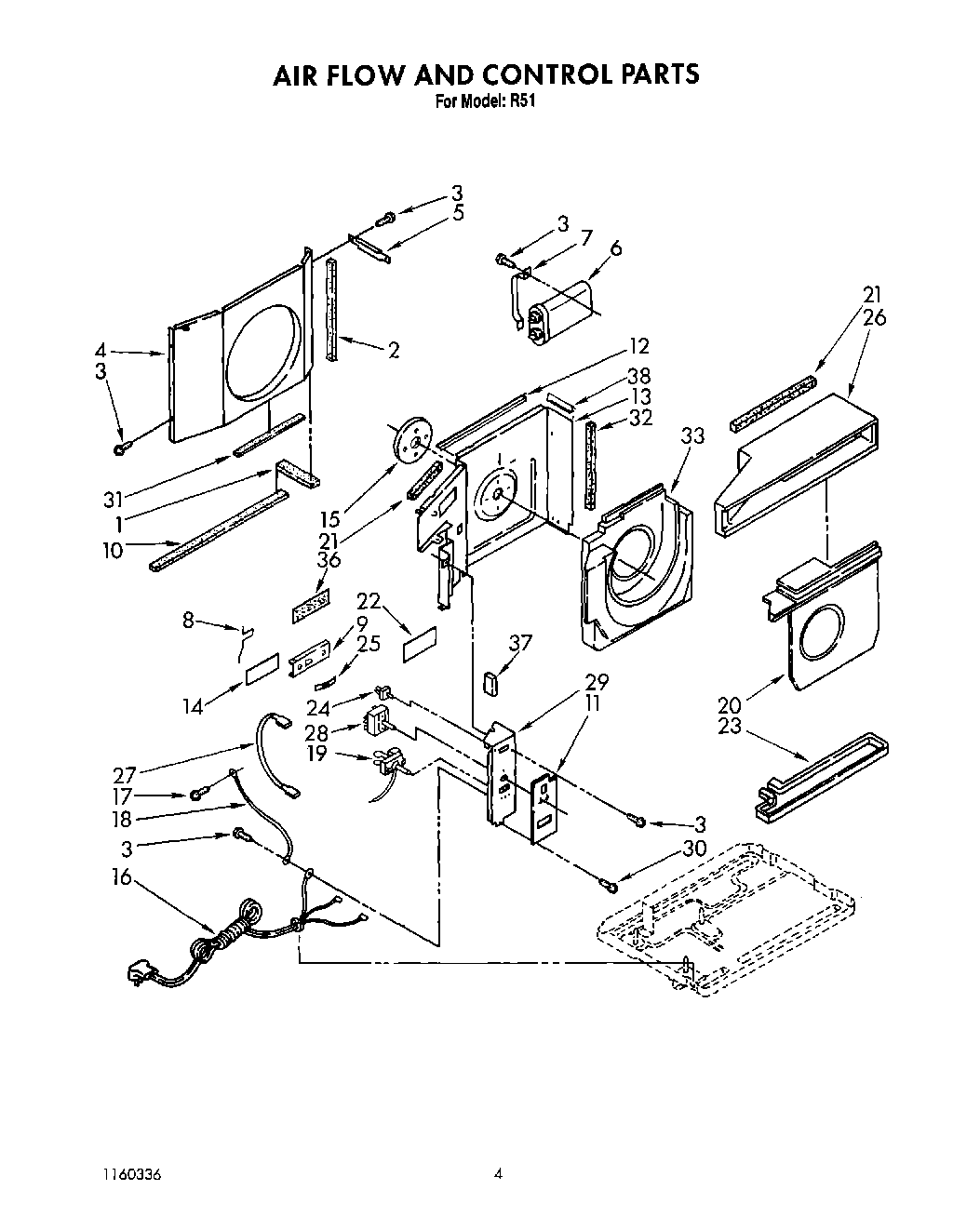

BFR51 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Seal, Condenser (R.S.)
3	Screw, 8-18 x 3/8
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Run
7	Bracket, Capacitor
8	Arm, Exhaust Door
9	Door, Exhaust
10	Seal
11	Insulation, Control Panel
12	Guard, Edge Seal
13	Wall, Dividing
14	Spacer
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Control, Temperature
20	Orifice, Air Housing
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	Barrier Protective
23	Pan, Evaporator
24	Actuator, Door
25	Spring, Retainer
26	Hood, Air Housing
27	Wire, Jumper
28	Switch, Rotary
29	Panel, Control
30	Screw 8-18 x .295
33	Housing, Air
34	Anticipator, Temperature
35	Clip, Anticipator
36	Insulation, Exhaust Door
37	Sealer, Tube
38	Guard, Edge Seal
