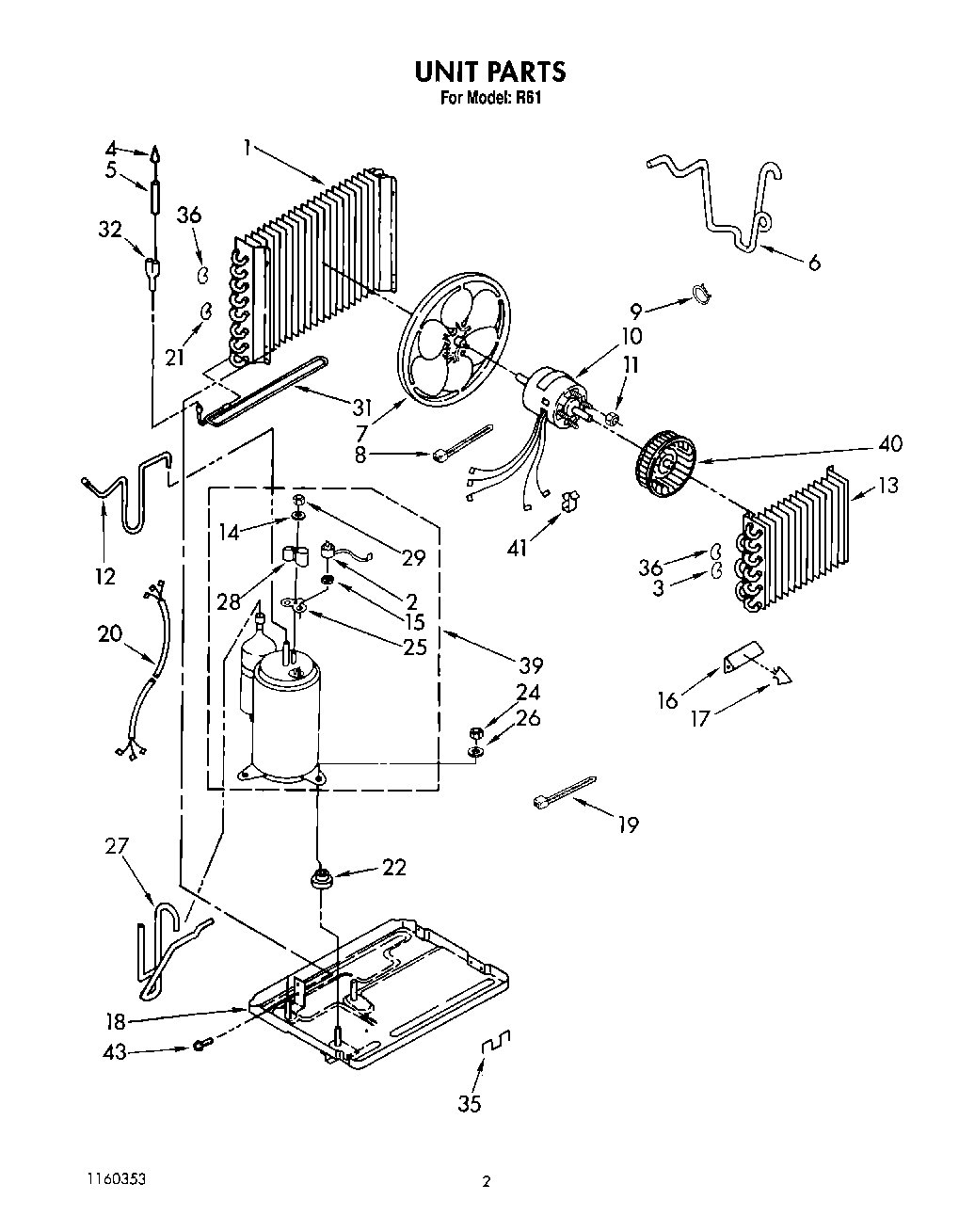

BFR61 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Diagram, Wiring
	List, Repair Parts
	Instructions, Installation
	Guide, Operation
	Tech Sheet
1	Condenser
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
8	WPW10339879 Whirlpool Wire Tie
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Gasket, Nut
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
20	Harness, Wiring
21	Bend Return Condenser (18)
22	Grommet
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP120393 Whirlpool Washer Assembly
27	Tube, Suction
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
31	Tube, Condenser Extension
32	Tube, Flow Divider
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Wheel, Blower
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
