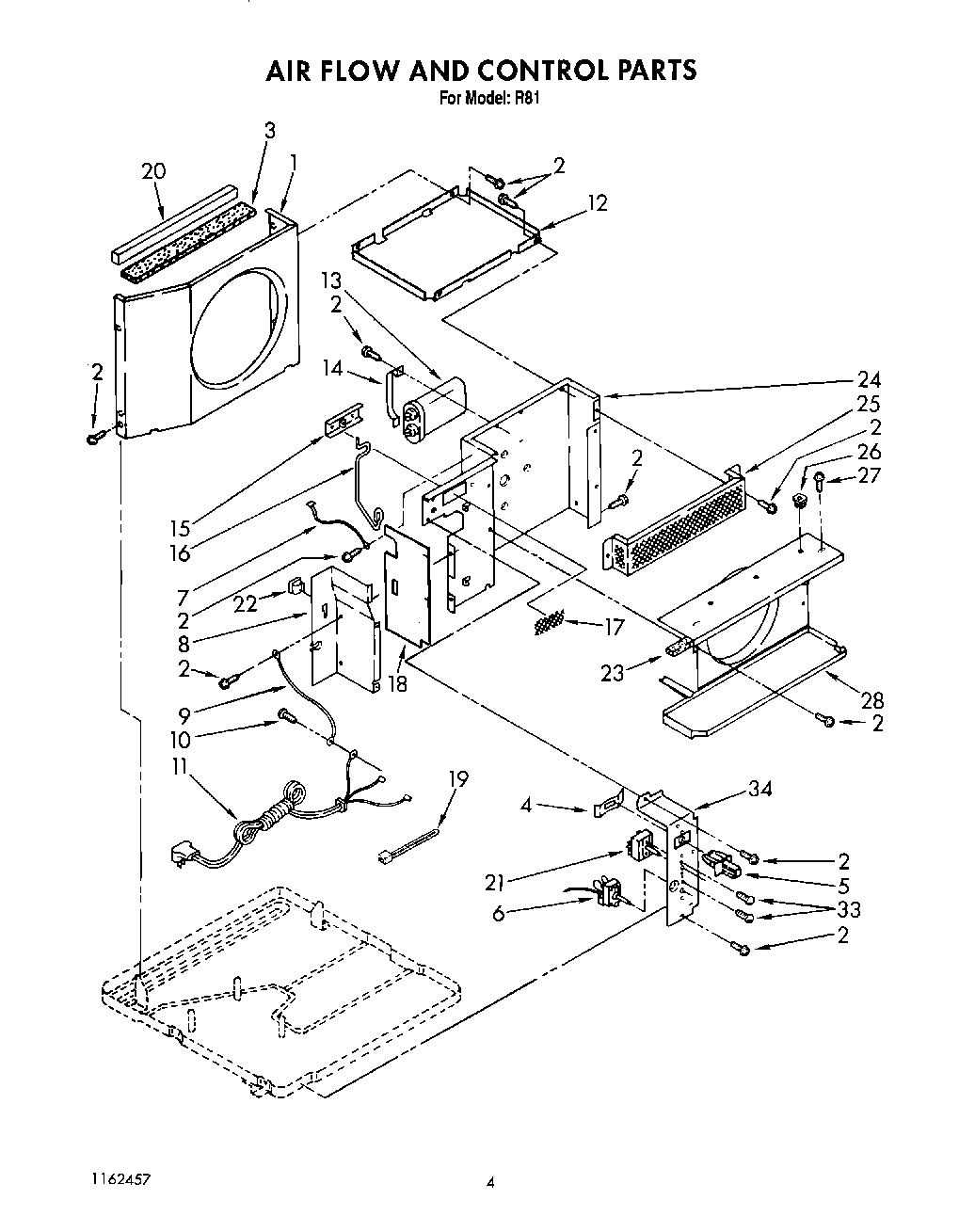

BFR81 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
2	Screw, Repair
3	WP854334 Whirlpool Air Conditioner Sealing Strip
4	Spring, Retainer
5	Actuator, Door
6	Control, Tempetature
7	Wire, Ground
8	Extension, Dividing Wall (Requires Insulation Part No. 469938)
9	Wire, Ground
10	WPW10141604 Whirlpool Screw
11	Cable, Appliance
12	Support, Unit
13	Capacitor, Running
14	Bracket, Capacitor
15	Door, Exhaust
16	Arm, Door
17	Screen, Exhaust Door
18	Insulation
19	WPW10339879 Whirlpool Wire Tie
20	Seal, Condenser Top
21	Switch, Rotary
22	Clip, Retainer
23	Insulation, Evaporator Cover
24	Wall, Dividing Also Order:
25	Guard, Evaporator Impeller
26	Fastener, snap (2)
27	WP488729 Whirlpool Refrigerator Door Screw
28	Shroud, Evaporator
33	Screw, 6-32 x .175
34	Panel, Control
