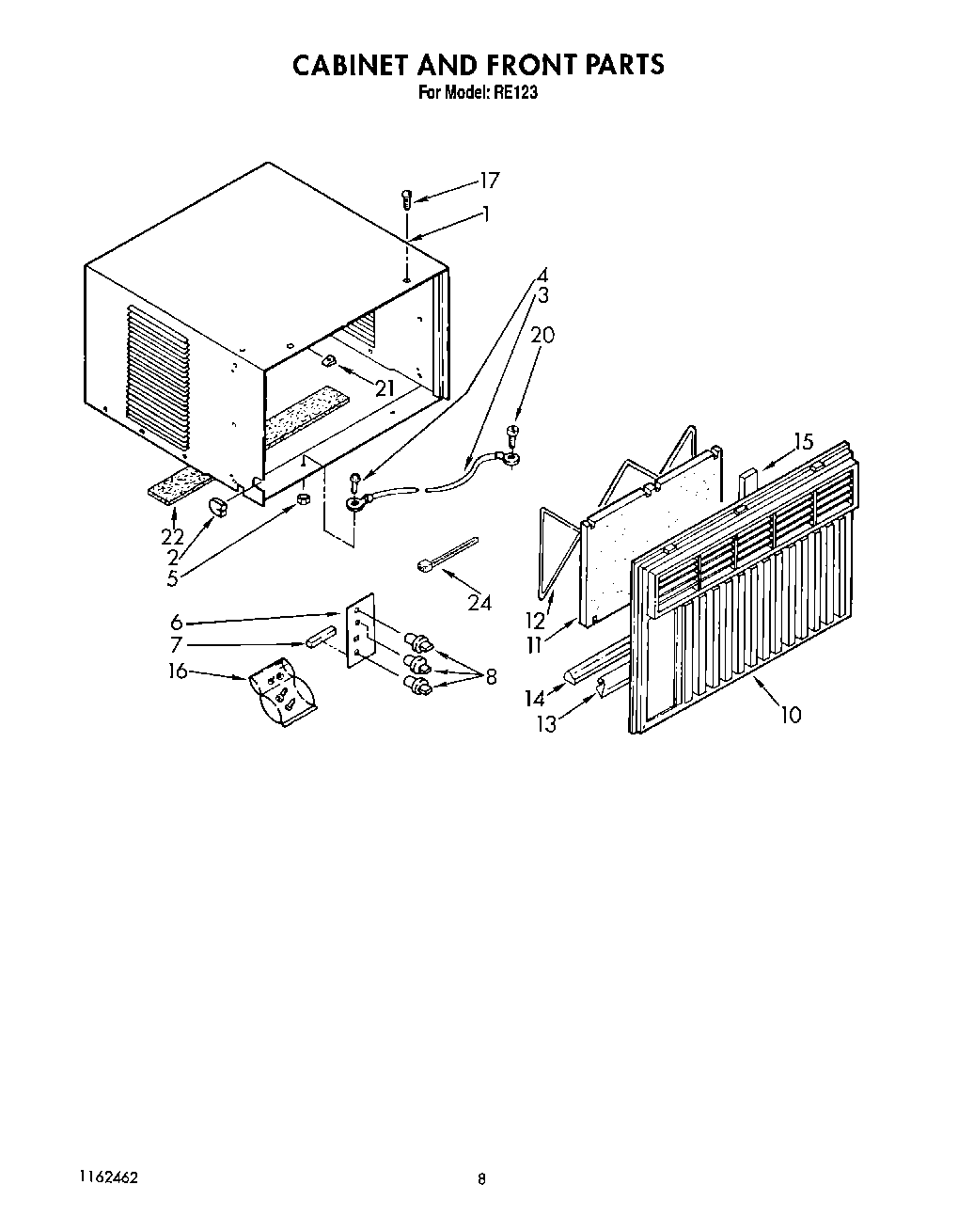

BFRE123 05 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
2	Grommet, Appliance Cable
3	Wire, Ground
4	Screw, 8 x 3/8
5	WP486255 Whirlpool Air Conditioner Nut
6	Plate, Escutcheon
7	Spacer, Escutcheon Plate (3)
8	Knob, Control (3)
10	Front, Cabinet
11	Filter
12	Retainer, Filter
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Seal
15	Seal
16	Bag, Accessory
17	Screw (2)
20	Screw, 8 x 3/8
21	Clip, Cabinet Front (2)
22	Seal
24	WPW10339879 Whirlpool Wire Tie
