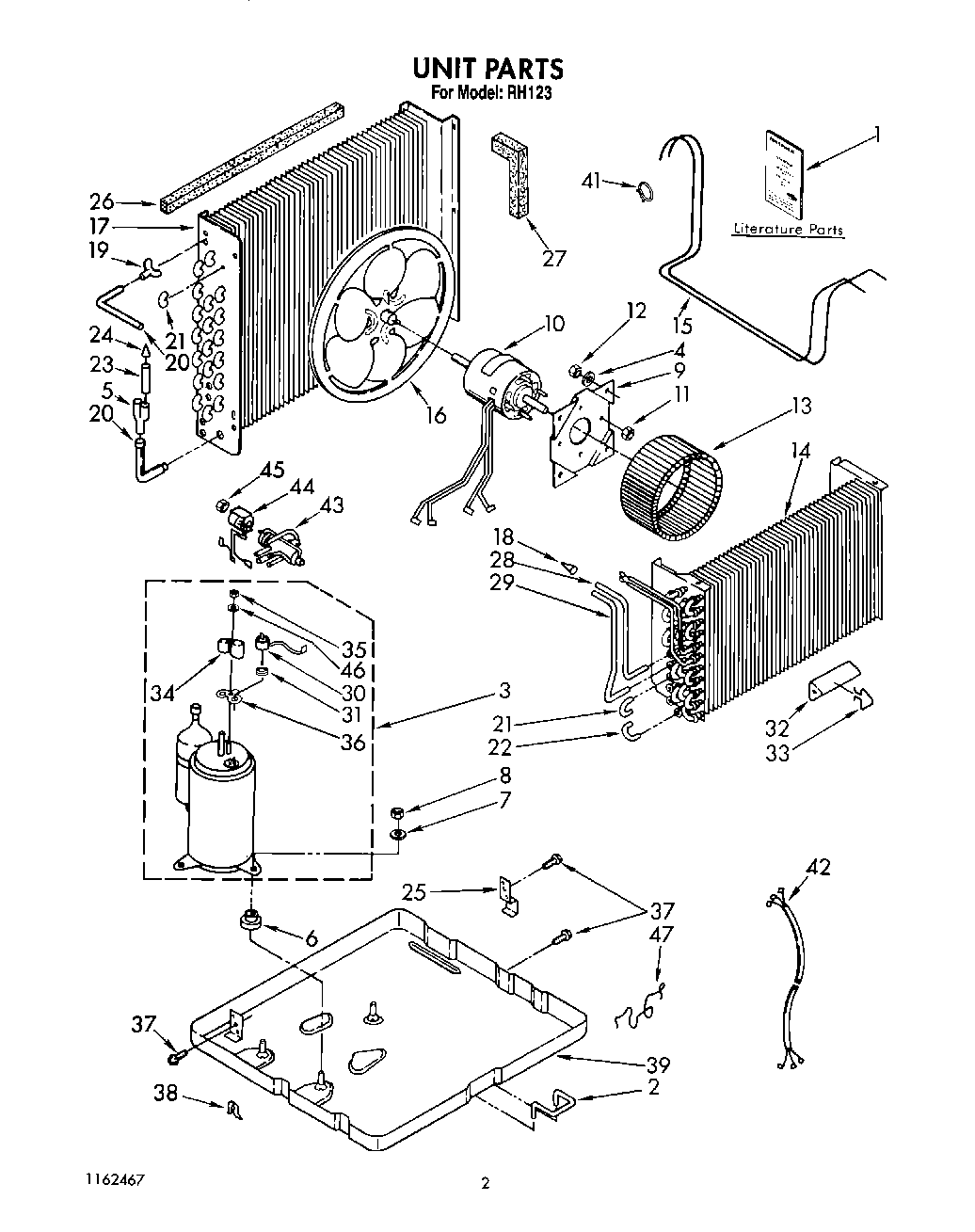

BFRH123 02 – UNIT, LIT/OPTIONAL

BFRH123 02 – UNIT, LIT/OPTIONAL

Written by

in

BFRH123 02 – UNIT, LIT/OPTIONAL

Products

PositionProduct
1Instructions, Installation
1Wiring Diagram
1Sheet, Tech
1Operation Guide
1List, Repair Parts
2WPL 647971
3Compressor
4Washer, Repair (4)
5Tube, Flow Divider
6WP950021 Whirlpool Grommet
7WP120393 Whirlpool Washer Assembly
9WPL 998024
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Nut, Hex (4)
13Wheel, Blower
14Evaporator
15Tube, Restrictor (2) (Length 36.0“)
16Fan, Blade
17Condenser
18Strainer
19Bend, Return (3-Way)
20Tube, 90~ Connect (2)
21Bend, Return Evaporator (11)
22Bend, Return Evaporator (4)
23Tube, Outlet (Includes Illus. 24)
24Strainer
25WPL 647824
26WPL 649609
27WPL 649610
28Tube, Outlet (Front)
29Tube, Outlet (Rear)
30Overload
31Spring, Overload
32Anticipator
33Clip, Anticipator
34WP950036 Whirlpool Cover Assembly
35WP950027 Whirlpool Mounting Nut
36WP950035 Whirlpool Cover Gasket
37WP489069 Whirlpool Compactor Screw
38Clamp, Restrictor Tube
39Base
41Clamp, Tube (2)
42Harness, Wiring
43Valve, Reversing
44Coil, Solenoid
45WP488826 Whirlpool Nut
46Gasket, Nut
47Clip, Mtg. (2) (Base to Front)
