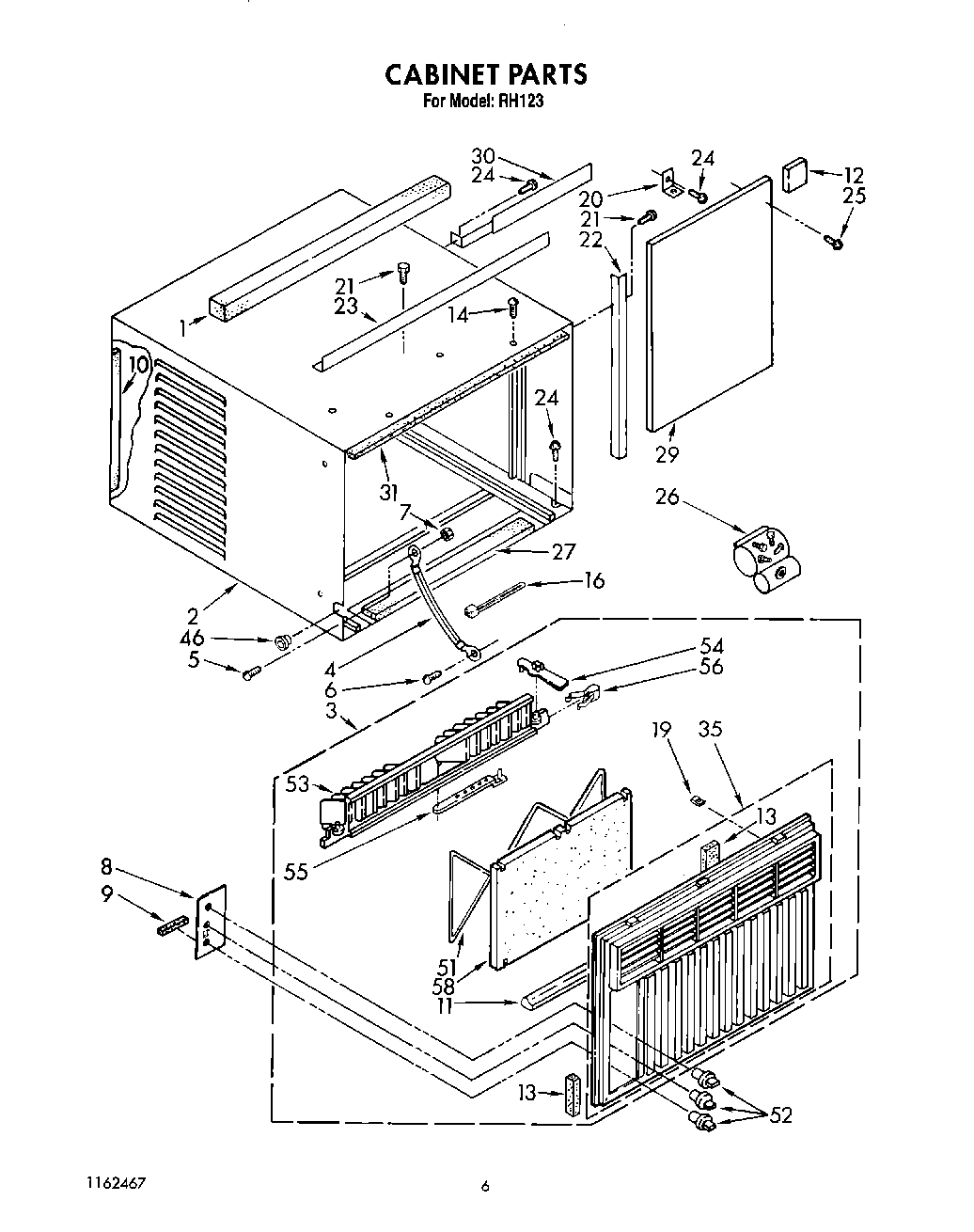

BFRH123 04 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	Front Assembly, Cabinet (Complete)
4	Wire, Ground
5	Screw, 8 x 3/8
6	Screw, 8 x 3/8
7	WP486255 Whirlpool Air Conditioner Nut
8	Plate, Escutcheon
9	Spacer, Escutcheon Plate (3)
11	Seal
11	WP854334 Whirlpool Air Conditioner Sealing Strip
12	Spacer, Block (4)
13	Seal
14	Screw (2)
16	WPW10339879 Whirlpool Wire Tie
19	Clip, Cabinet Front (2)
20	Bracket
21	WP308685 Whirlpool Microwave Screw
22	Angle (2)
23	Angle, Top
24	Screw, Wood 8-15 x .750
25	WP965173 Whirlpool Dishwasher Screw
26	Bag, Accessory
27	Seal
29	Bracket, R.S.
30	Bracket, L.S.
30	Bracket, R.S.
31	Insulation, Cabinet (Top)
31	WPL 647847
31	WPL 647848
35	Front, Cabinet
46	Grommet, Appliance Cable
51	Retainer, Filter
52	Knob, Control (3)
53	Louver, Vertical
54	Handle, Vertical Louver (2)
55	Link, Vertical Louver (2)
56	Detent Spring (2)
58	Filter
