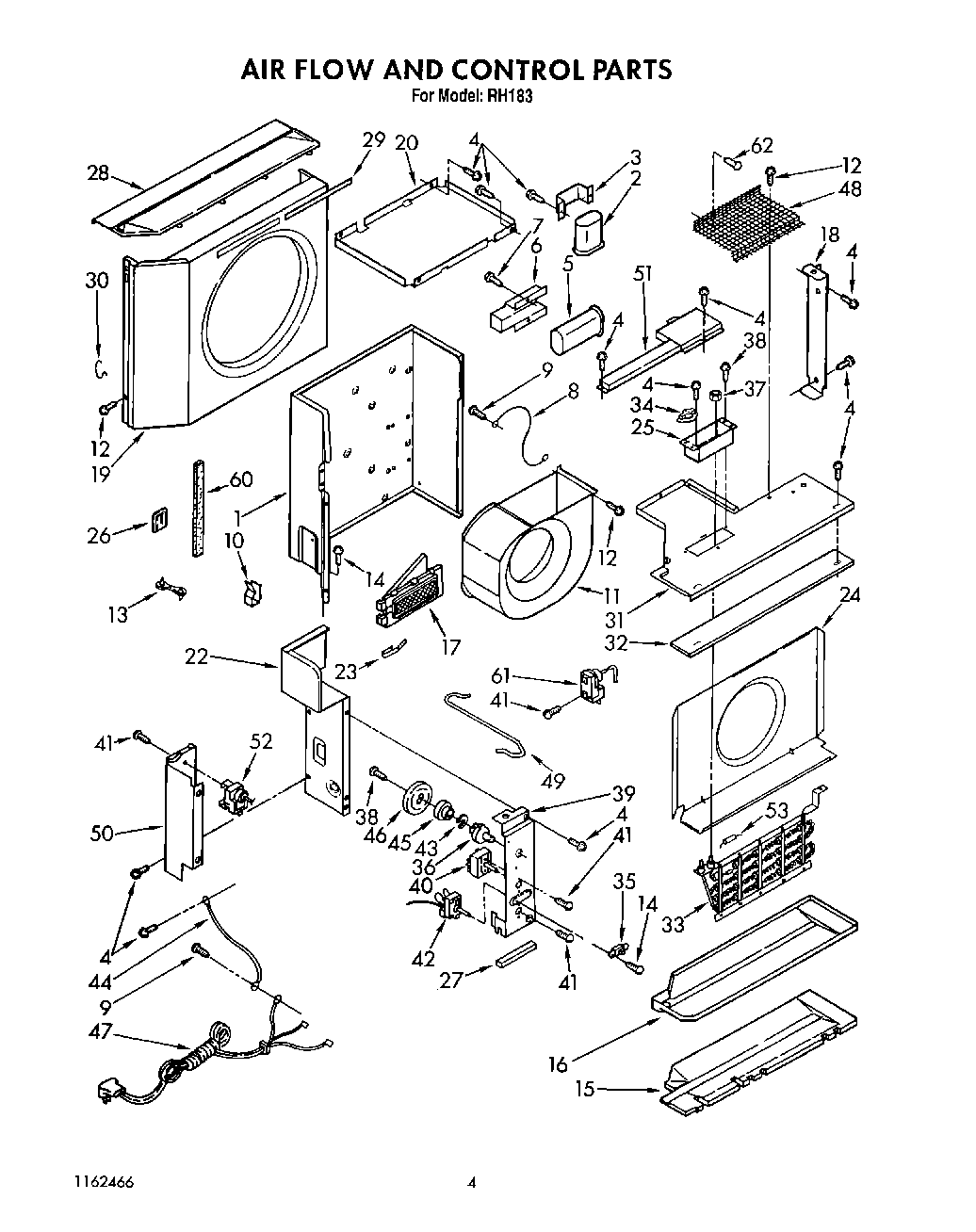

BFRH183 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Wall, Dividing
2	Capacitor, Running
3	Bracket (Lower)
4	WP489069 Whirlpool Compactor Screw
5	Capacitor, Fan
6	Bracket, Fan Motor Capacitor
8	Wire, Ground (2)
9	WPW10141604 Whirlpool Screw
10	Clamp, Cable
11	Housing, Blower Wheel
12	WP488729 Whirlpool Refrigerator Door Screw
13	Clamp, Cable
14	Screw, 8 x 3/8
15	Insulation, Pan
16	Pan, Condensate
17	Door, Exhaust
18	Plate, Adapter
19	Shroud, Condenser
20	Support, Unit
22	Extension, Dividing Wall
23	Spring, Door
24	Deflector, Heat
25	Bracket, Heater
26	Seal, Tube
27	Seal
28	Cover, Condenser Shroud
29	seal, strip (shroud) (side)
29	WP854334 Whirlpool Air Conditioner Sealing Strip
30	Clip, Shroud (2)
31	Cover, Evaporator
32	Insulation, Cover
33	Heater, Air
34	Switch, Limit
35	Switch, Sliding
36	Shaft, Control
37	WP488826 Whirlpool Nut
38	Screw, 7-18 x 5/8
39	Panel, Control
40	Switch, Rotary
41	Screw, 6-32 x .175
42	Control, Temperature
43	Washer
44	Wire, Ground
45	Bushing, Shaft
46	Cam, Exhaust
47	Cable, Appliance
48	Guard, Impeller
49	Wire, Control
50	Cover, Controls
51	Cover, Heater
52	Thermostat, Deicer
53	Fuse, Heater
60	Seal, Strip
61	Control, Outside Temperature
62	Clip (2)
