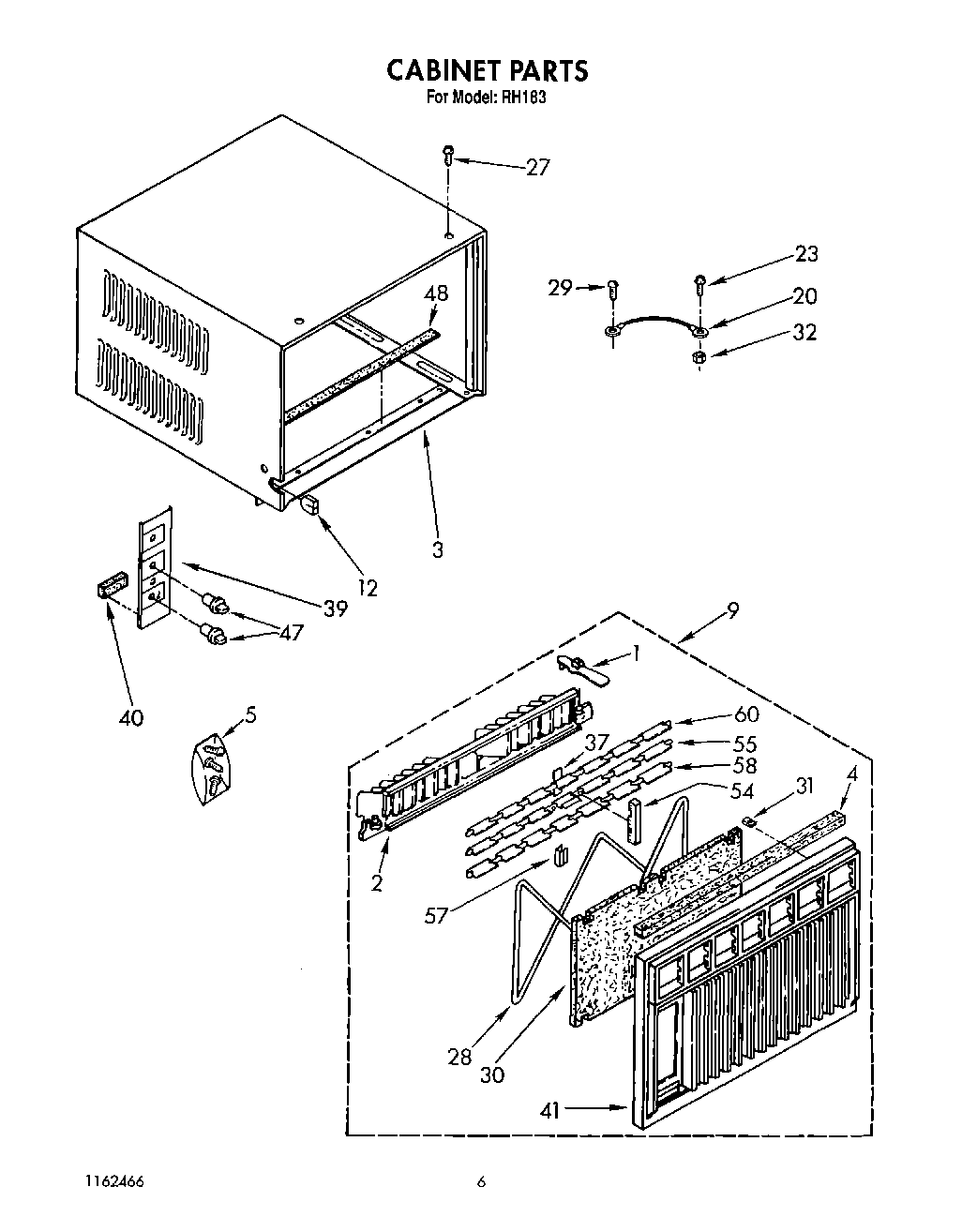

BFRH183 04 – CABINET

Products

PositionProduct
1Handle, Vertical Louver (2)
2Louver, Vertical
3Cabinet
4Seal, Front (Top & Sides)
5Bag, Accessory
9Front, Cabinet (Complete)
12Grommet, Appliance Cable
20Wire, Ground
23Screw, 8 x 3/8
27Screw (2)
28Retainer, Filter
29Screw, 8 x 3/8
30Filter, Air
31Clip, Cabinet Front (2)
32WP486255 Whirlpool Air Conditioner Nut
37Retainer (4)
39Plate, Escutcheon
40Spacer, Escutcheon Plate (2)
41Front, Cabinet
47Knob, Control (3)
48Cabinet Insulation (Right Side)
48Insulation Cabinet
48Cabinet Insulation (Left Side)
54Rack, Louver (2)
55Louver, Horizontal (Handle)
57Clip, Retainer (4)
58Louver, Horizontal (Relieved)
60Louver, Horizontal (4)
