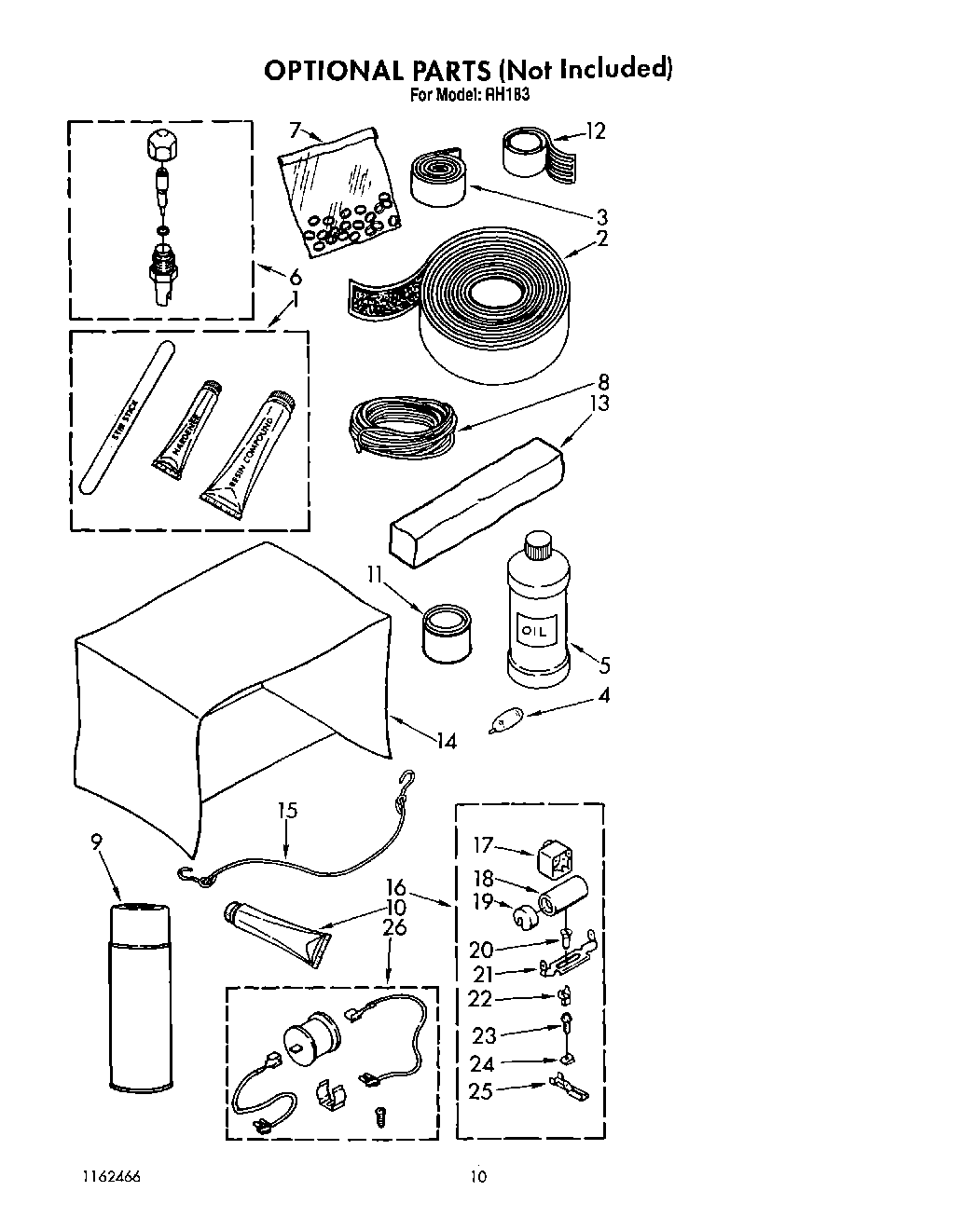

BFRH183 06 – OPTIONAL

Products

Position	Product
1	WPL 799833
2	No Drip Tape (For Sweating Tubes)
3	TAPE, VINYL (3/4 X 108“)
4	Oil, Turbine 1 Fl. Oz.
5	Oil, Turbine 8 Fl. Oz.
6	VALVE, ACCESS (5/8“)
6	VALVE, ACCESS (1/2“)
6	WP978025 Whirlpool Refrigerator Valve
6	978030 Whirlpool Refrigerator Valve
6	978027 Whirlpool Refrigerator Primary Valve
6	978026 Whirlpool Refrigerator Primary Valve
6	876764 Whirlpool Refrigerator Primary Valve
7	Seal, Ring (Access Valve) (20 – Pack)
8	Wire, 25“ Roll (White 12 GA.)
8	Wire, 25“ Roll (Black 12 GA.)
8	Wire, 25` Roll (Red 12 Ga.)
8	Wire, 25“ Roll (White 14 GA.)
8	Wire, 25` Roll (Red 14 Ga.)
8	Wire, 25` Roll (Black 14 Ga.)
8	Wire, 25` Roll (Blue 16 Ga.)
9	Adhesive, Insulation (24 Oz. Spray)
10	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
11	Lacquer, Starlight Gray (1/2 Pt. Uncut)
12	212643 Whirlpool Refrigerator Permagum Sealer
13	4318168 Whirlpool Refrigerator Primary Permagum Sealer
14	Cover, Winter (27 x 19 x 6 to 27“)
14	Cover, Winter (19“x12“x14“)
14	Cover, Winter (28 x 19 x 31“)
14	484184 Whirlpool Air Conditioner Winter Cover
15	Retainer, Cord (Winter Cover)
16	Hard Start Kit (Use With 484395 Compressor)
17	Relay, Start
18	Capacitor, Start
19	xCap, Capacitor
21	Bracket, Capacitor (Component Of Start Kit)
22	Multiplier, Terminal (Component Of Start Kit)
23	WP965173 Whirlpool Dishwasher Screw
24	488660 Whirlpool Refrigerator Nut
25	Clip, Terminal (Component Of Start Kit)
26	WPL 484220
