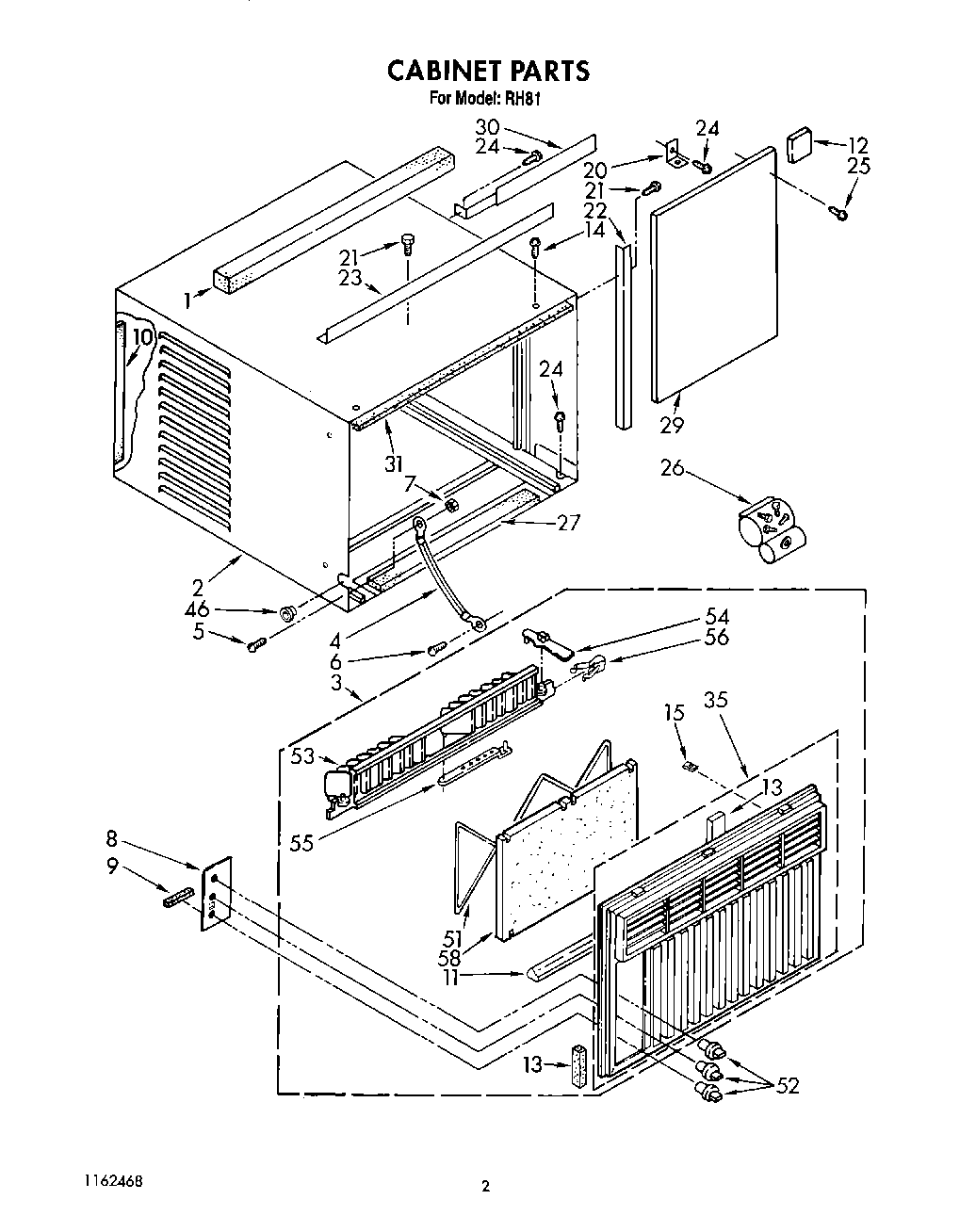

BFRH81 02 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	Front Assembly, Cabinet (Complete)
4	Wire, Ground
5	Screw, 8 x 3/8
6	Screw, 8 x 3/8
7	WP486255 Whirlpool Air Conditioner Nut
8	Plate, Escutcheon
9	Spacer, Escutcheon Plate (3)
11	WP854334 Whirlpool Air Conditioner Sealing Strip
11	Seal
12	Spacer, Block (4)
13	Seal
14	Screw (2)
15	Clip, Cabinet Front (2)
20	Bracket
21	WP308685 Whirlpool Microwave Screw
22	Angle (2)
23	Angle, Top
24	Screw, Wood 8-15 x .750
25	WP965173 Whirlpool Dishwasher Screw
26	Bag, Accessory
27	Seal
29	Bracket, R.S.
30	Bracket, R.S.
30	Bracket, L.S.
31	WPL 647848
31	Insulation, Cabinet (Top)
31	WPL 647847
35	Front, Cabinet
46	Grommet, Appliance Cable
51	Retainer, Filter
52	Knob, Control (3)
53	Louver, Vertical
54	Handle, Vertical Louver (2)
55	Link, Vertical Louver (2)
56	Detent Spring (2)
58	Filter
