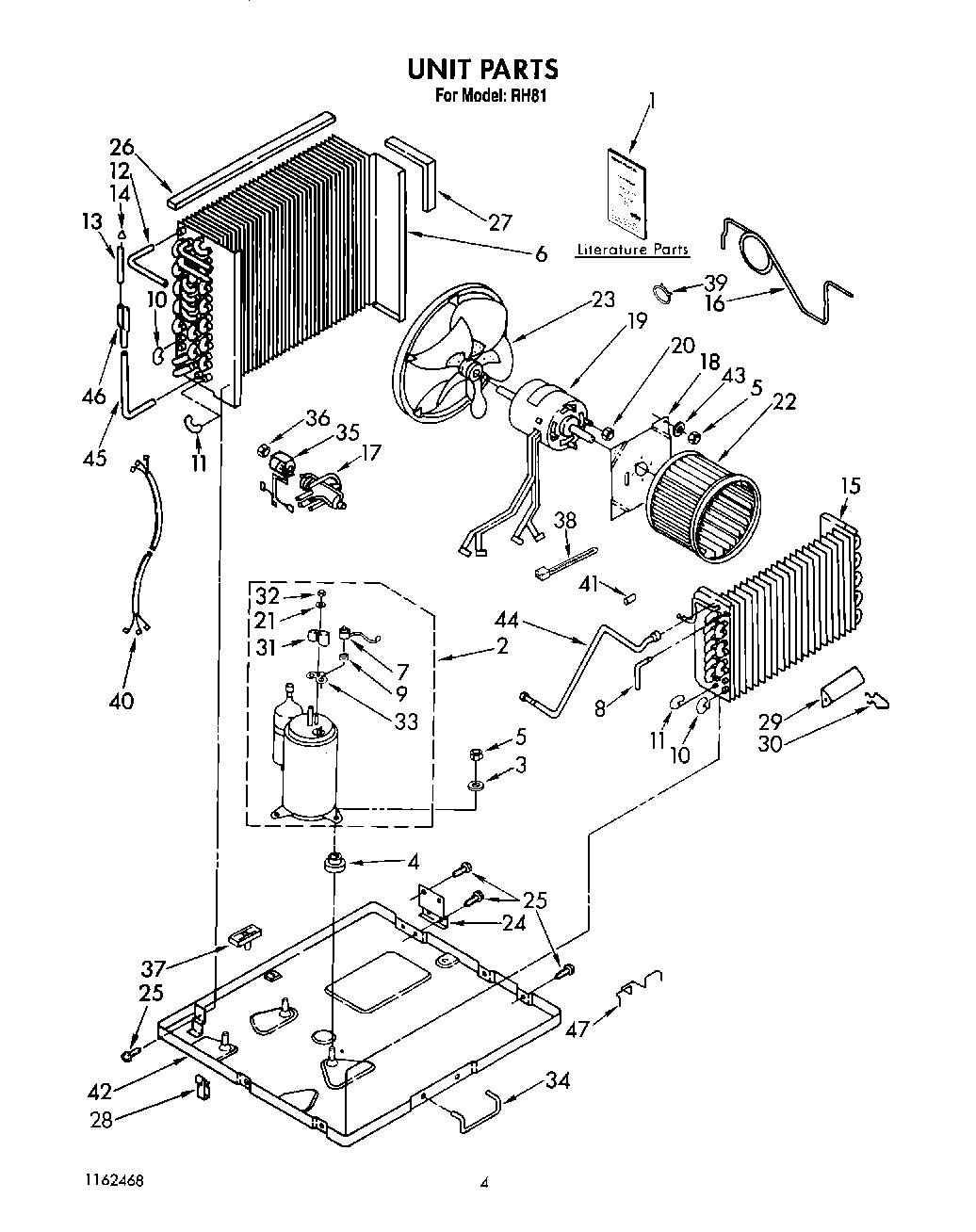

BFRH81 03 – UNIT, LIT/OPTIONALadmin2025-04-26T12:05:53+00:00BFRH81 03 – UNIT, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | List, Repair Parts |
| 1 | Wiring Daigram |
| 1 | Sheet, Tech |
| 1 | Operation Guide |
| 2 | WPL 813556 |
| 3 | WP120393 Whirlpool Washer Assembly |
| 4 | WP950021 Whirlpool Grommet |
| 5 | Nut, Hex (4) |
| 6 | WPL 951449 |
| 7 | WPL 951454 |
| 8 | Bend, 90~ |
| 9 | Spring, Overload |
| 10 | Bend, Return Evaporator (11) |
| 11 | Bend, Return Evaporator (4) |
| 12 | Tube Inlet |
| 13 | Tube & Strainer (Includes Illus. 4) |
| 14 | Strainer |
| 15 | WPL 951446 |
| 16 | WPL 951448 |
| 17 | Reversing Valve (Use W/852978) |
| 18 | WPL 998024 |
| 19 | Motor, Fan |
| 20 | WP488130 Whirlpool Air Conditioner Nut |
| 21 | Gasket, Nut |
| 22 | Wheel, Blower |
| 23 | Blade, Fan |
| 24 | WPL 647824 |
| 25 | WP489069 Whirlpool Compactor Screw |
| 26 | WPL 649609 |
| 27 | WPL 649610 |
| 28 | Clamp, Restrictor Tube |
| 29 | Anticipator, Temperature |
| 30 | Clip, Anticipator |
| 31 | WP950036 Whirlpool Cover Assembly |
| 32 | WP950027 Whirlpool Mounting Nut |
| 33 | WP950035 Whirlpool Cover Gasket |
| 34 | WPL 647971 |
| 35 | Solenoid Coil (Use W/467396) |
| 36 | WP488826 Whirlpool Nut |
| 37 | WPL 647850 |
| 38 | WPW10339879 Whirlpool Wire Tie |
| 39 | Clamp, Tube (2) |
| 40 | Harness, Wiring |
| 41 | Strainer |
| 42 | Base |
| 43 | Washer, Repair (4) |
| 44 | Muffler, Tube (Includes No. 41) |
| 45 | Tube, Outlet |
| 46 | Tube, Flow Divider |
| 47 | Clip, Mtg. (2) (Base to Front) |
