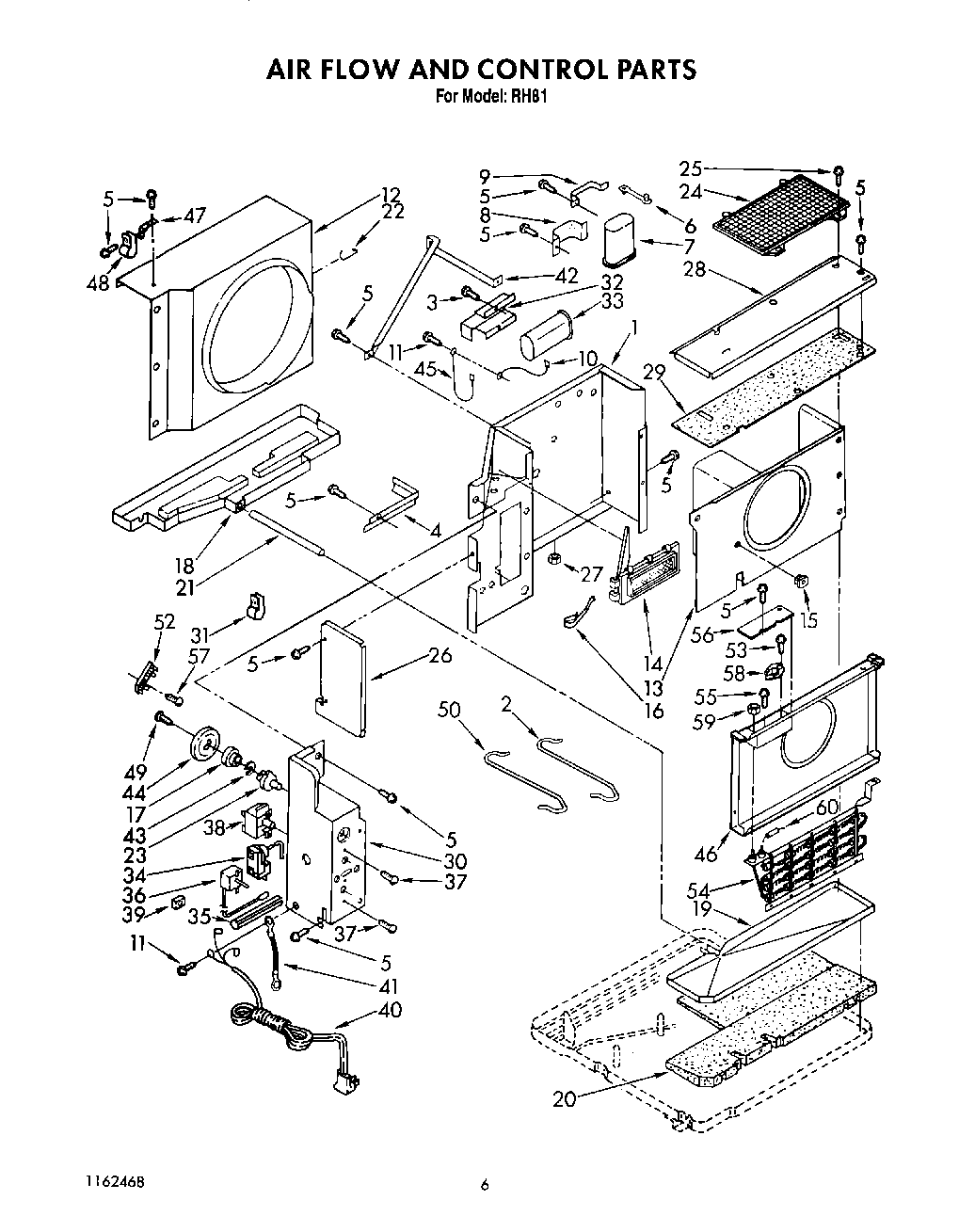

BFRH81 04 – AIR FLOW AND CONTROL

Products

Position	Product
1	Wall, Dividing
2	Guide, Wire
3	Screw, Repair
4	Channel, Wiring
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Cable
7	Capacitor, Run
8	Bracket (Upper)
9	Bracket (Lower)
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Shroud, Condenser
13	Housing, Blower Wheel
14	Door, Exhaust
15	Fastener, snap (2)
16	Spring, Door
17	Bushing, Shaft
18	Pan, Condensate
19	Pan, Evaporator Condensate
20	Insulation, Condensate Pan
21	Tube, Condensate
22	Clip, Shroud (3)
23	Shaft, Control
24	Guard, Evaporator Impeller
25	WP488729 Whirlpool Refrigerator Door Screw
26	Dividing Wall Assembly, L.S.
27	Clip, Speed
28	Cover, Evaporator
29	Insulation, Evaporator Cover
30	Box, Control
31	Clamp, Cable
32	Bracket, Fan Motor Capacitor
33	Capacitor, Fan
34	Control, Outside Temperature
35	Insulation, Sleeve
36	Control, Temperature
37	Screw, 6-32 x .175
38	Switch, Rotary
39	Grommet
40	Cable, Appliance
41	Wire, Ground
42	Support, Unit
43	Washer
44	Cam, Exhaust
45	Ground Wire
46	Deflector, Heat Assembly
47	Bracket
48	Clamp
49	Screw, 7-18 x 5/8
50	Wire, C
52	Board, Terminal
53	Screw, 8 x 3/8
54	Heater, Air
55	WP488234 Whirlpool Air Conditioner Screw
56	Cover, Wire Enclosure
57	WPL 488966
58	Switch, Limit
59	WP488826 Whirlpool Nut
60	WPL 977558
