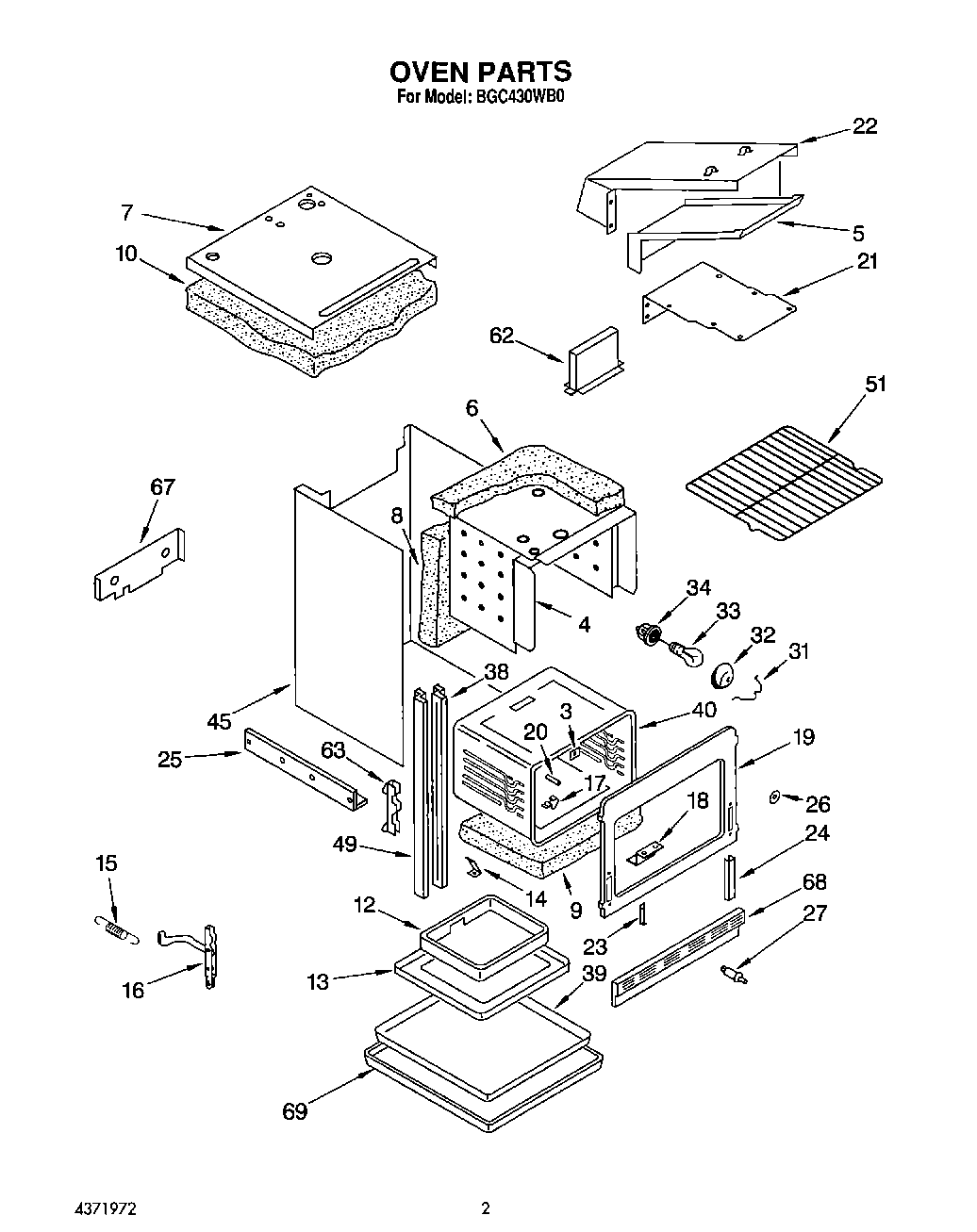

BGC430WB0 02 – OVEN

Products

Position	Product
3	Cover, Front
4	Shield, Top And Sides
5	Flue
6	Insulation, Top & Sides
7	Screw, 8-22 (5)
7	Top, Wrapper
8	Insulation, Back
9	Insulation, Bottom
10	Insulation, Top
12	Box, Oven Burner
12	WP308685 Whirlpool Microwave Screw
13	Bottom, Oven
14	Spacer, Oven (2)
15	Spring, Door (2)
16	Hinge, Door
17	Clip, Thermo Bulb
18	Shield, Vent
19	Frame, Front
20	Cover, Thermo Bulb
21	Shield, Flue Bottom
22	WP488729 Whirlpool Refrigerator Door Screw
22	Shield, Flue Top
23	Retainer, Door
24	Support, Front (2)
25	Trim, Top (Screw, No.6x32x1/2 (6))
25	Support, Height Adjustment (2)
26	Shield, Oven Top
27	Switch, Door
31	Retainer, Lens
33	RANGE ONLY 40W 120V APPL BULB
34	W10856866 Whirlpool Light Socket
38	Trim, Inner (Right Hand)
38	Trim, Inner (Left Hand)
39	Shield, Base
40	Liner, Oven
45	Wrapper, Back And Sides
49	Trim, Outer
51	Rack, Oven Regular
62	Adaptor, Flue
63	Channel, Hinge
67	Screw, 10-24 x 3/8 (2)
67	Shield, Housing
68	WPL 816901
68	WPL 816410
69	WPL 816908
