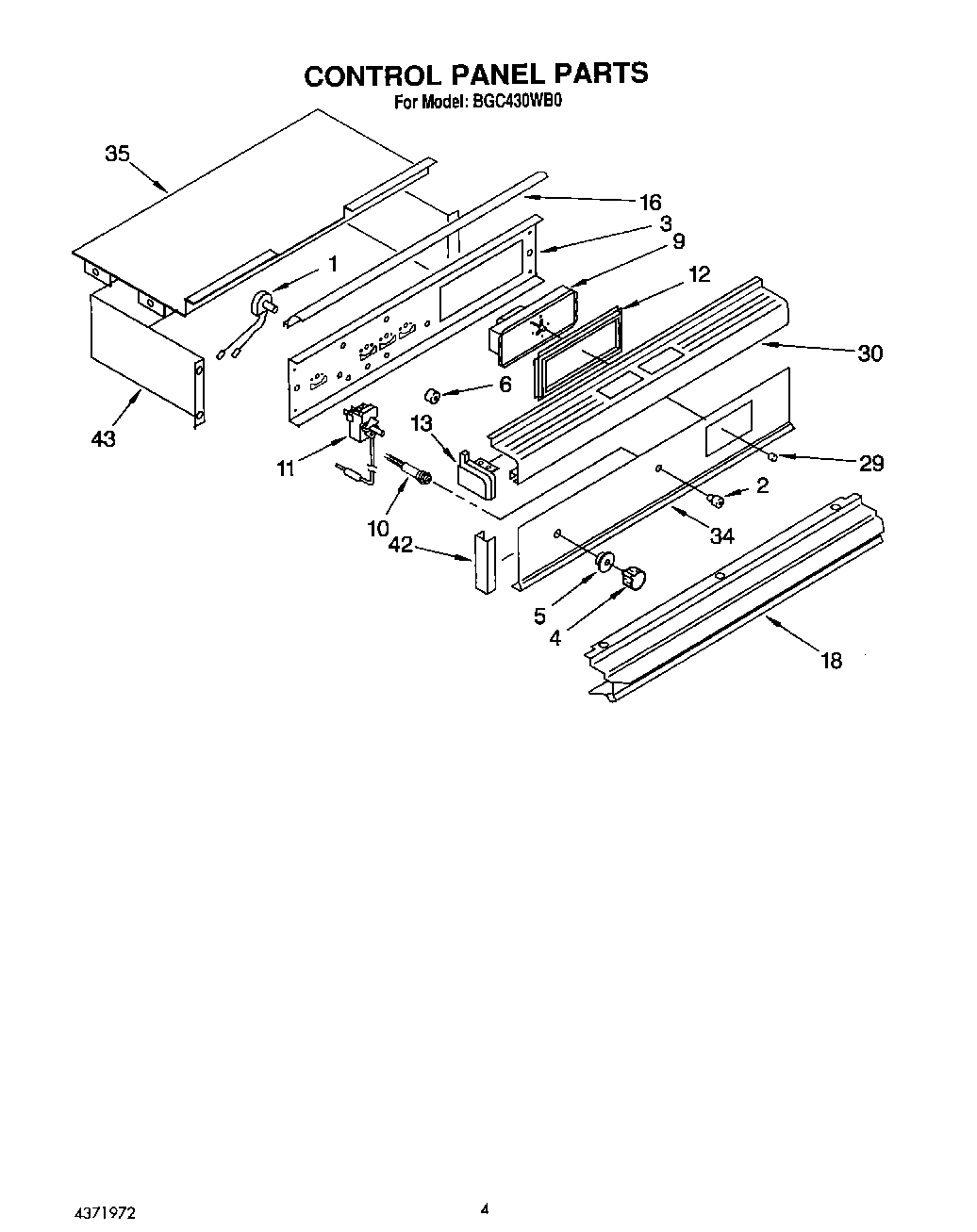

BGC430WB0 03 – CONTROL PANEL

BGC430WB0 03 – CONTROL PANEL

Written by

in

BGC430WB0 03 – CONTROL PANEL

Products

PositionProduct
1Switch, Oven Light
2Bezel, Switch (Black)
3Plate, Control Mtg
3Screw, 10-24 x 3/8 (2)
4Knob, Thermostat
5Spacer, Dial
6Bumper, Rubber (4)
9Clock
10Light, Indicator
11Thermostat
12Bracket, Clock
13Endcap (Left Hand)
13Endcap (Right Hand)
16Deflector, Heat (Screw, No.6x18x1/4 (3))
16Deflector, Heat (Black)
18Trim, Center Vent
29Knob, Clock (3)
30Trim, Top
30Trim, Top (Screw, No.6x32x1/2 (6))
34Panel, Control
35Cover, Control
42Trim, Control Panel (2) (Black)
43Shield, Controls
43Screw, 8-22 (5)
