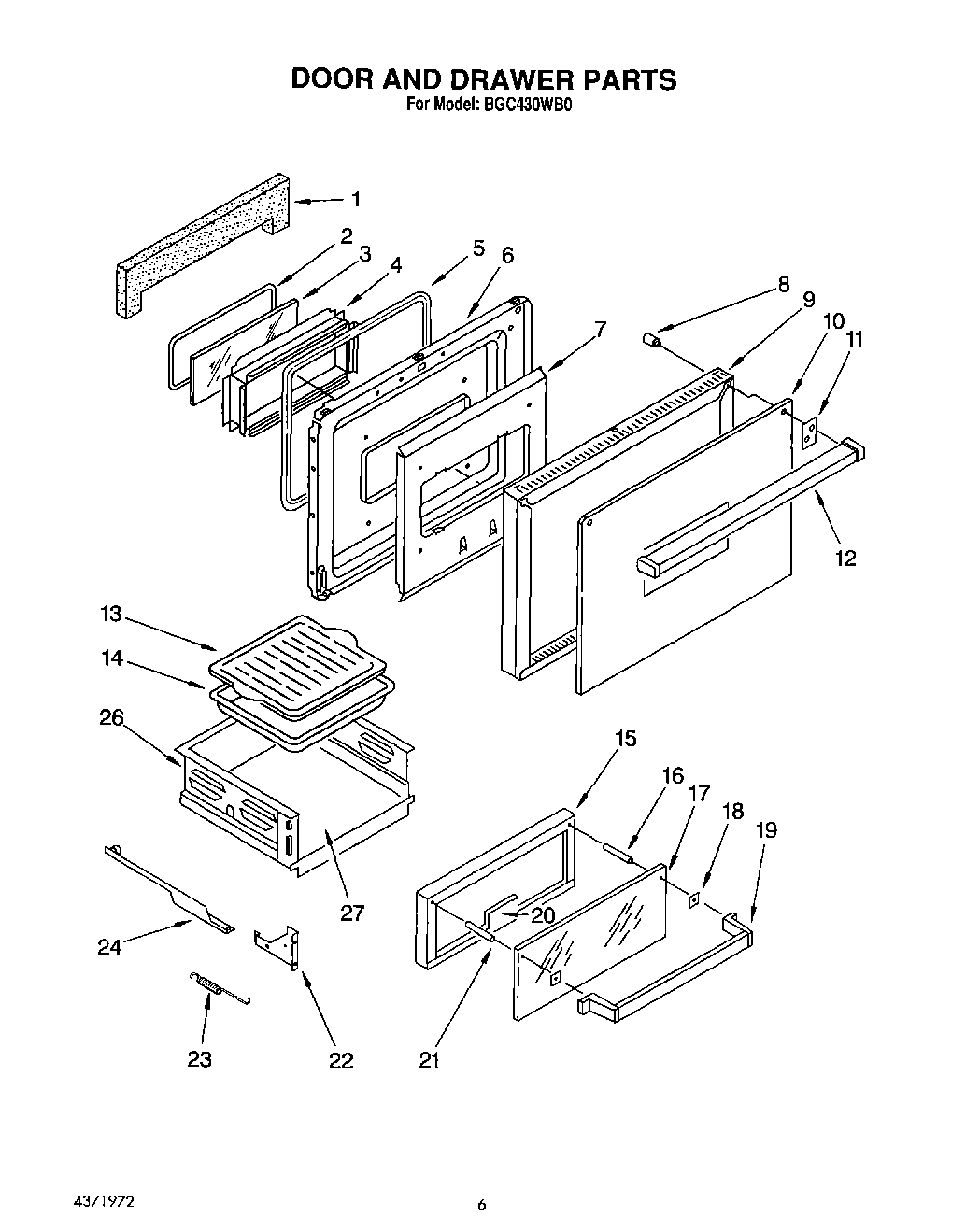

BGC430WB0 05 – DOOR AND DRAWER, LIT/OPTIONAL

BGC430WB0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Written by

in

BGC430WB0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Installation Instructions
Guide, Use And Care
1Insulation, Door
2Seal, Window
3Glass, Inner
4Screw, 10-24 x 3/8 (2)
4Retainer, Glass
5Seal, Door
6Liner, Door
7Panel, Airwash
8Spacer, Handle
9Screw, No.8x18x1/2 (3)
9Frame, Door
10Glass, Outer Door (Black)
12Handle, Door (Screw, No.10x24x21/4 (2))
13Insert, Broiler Pan
14Pan, Broiler
15Frame, Trim
17Glass, Drawer
18Spacer, Handle (Black)
19Handle, Drawer (Black)
19Screw, No.10x24x5/8
20Panel, Inner Door
21Spacer, Handle
22Hinge, Broiler (Left Hand)
22Hinge, Broiler (Right Hand)
23Spring, Broiler
24Track, Drawer (Right Hand)
24Track, Drawer (Left Hand)
26Screw, No.8x18x3/8 (4)
26Drawer, Broiler
27Panel, Broiler Drawer Bottom
