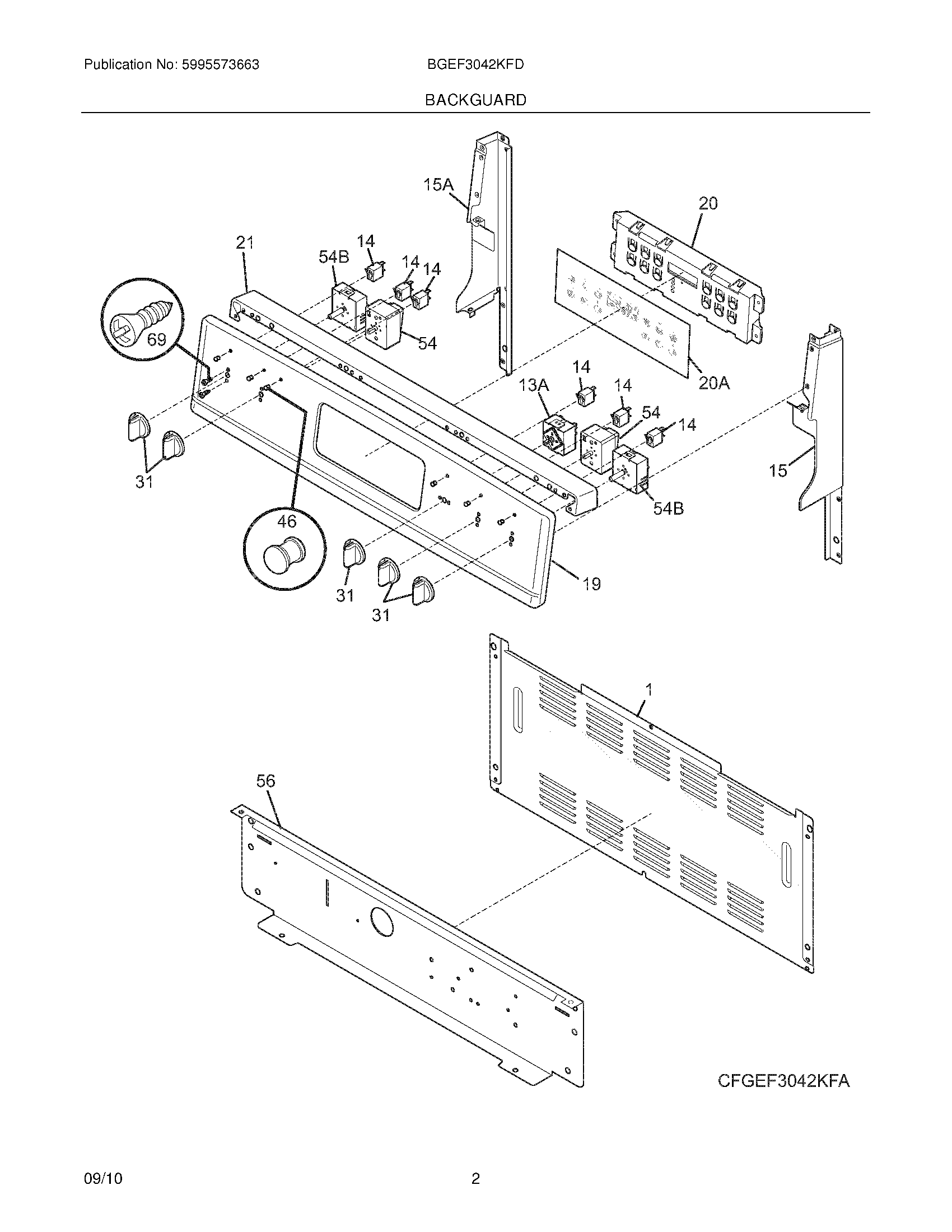

BGEF3042KFD 03 – BACKGUARD

BGEF3042KFD 03 – BACKGUARD

Written by

in

BGEF3042KFD 03 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1WCI 316557600
13A5304508926 Frigidaire Oven Temperature Control Switch
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15AWCI 316546703
15316546710 Frigidaire Oven Cap
19316572418 Frigidaire Oven Panel
205304510064 Frigidaire Range Control Board and Clock Assembly
20A316419353 Frigidaire Oven Overlay
21316546605 Frigidaire Oven Cap
31WCI 316564402
46316557300 Frigidaire Range Indicator Light Lens
54B316238201 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
56316234045 Frigidaire Oven Shield
