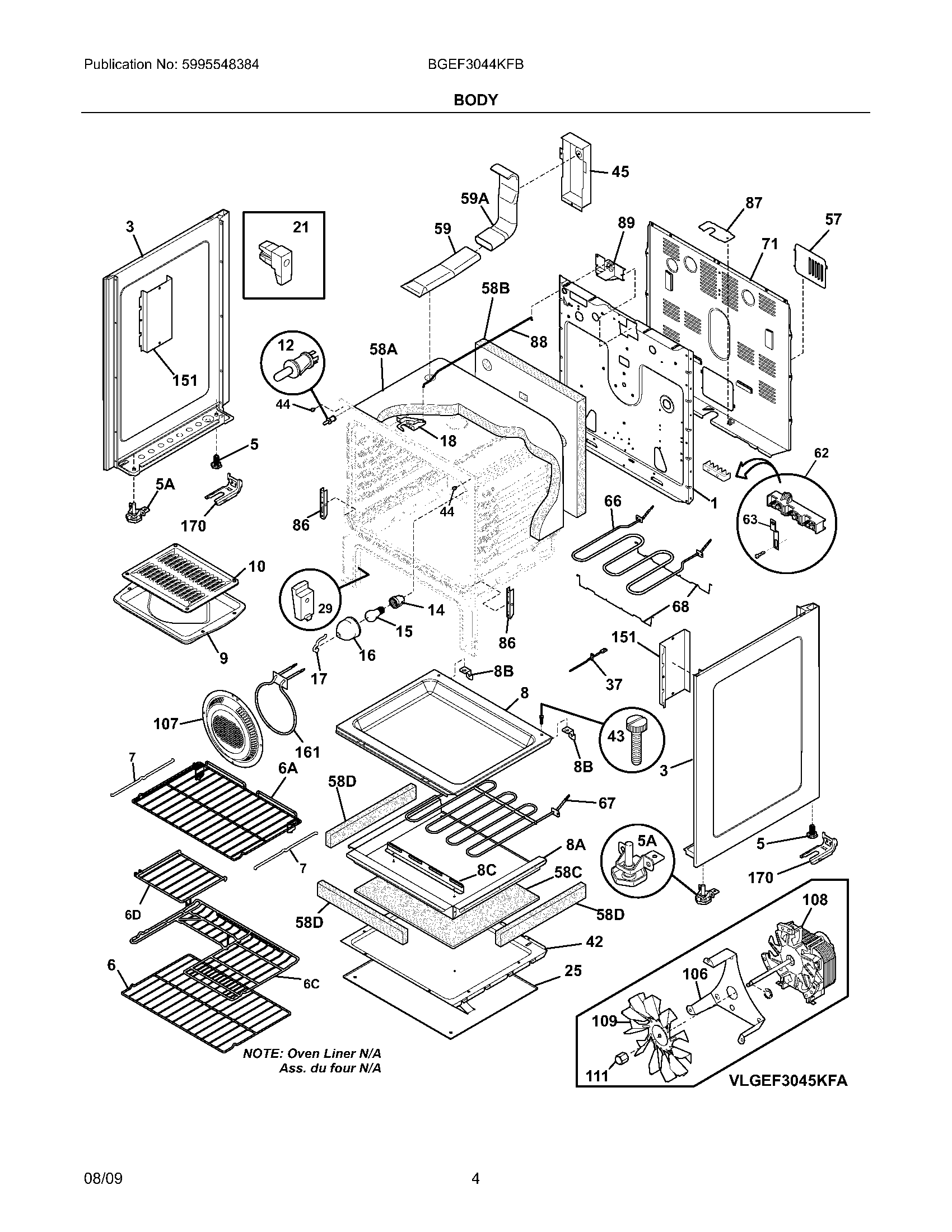

BGEF3044KFB 05 – BODY

Products

PositionProduct
NI316021132 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316008401 Frigidaire Washer P-1
NI316021109 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NI316418901 Frigidaire Oven Screw
NI316542203 Frigidaire Insulator
NI316506217 Frigidaire Wiring Harness
NI316001017 Frigidaire Screw
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NIWASHER-BLACK
1WCI 316401801
3316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6DWCI 316419400
6A316577800 Frigidaire Oven Rack
6316496201 Frigidaire Oven Rack
6CWCI 316425600
7316546300 Frigidaire Coupler Link Arm
8WCI 316505601
8A316505701 Frigidaire Oven Base
8C316505801 Frigidaire Oven Support
8B316506000 Frigidaire Oven Bracket
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445500 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
25316406200 Frigidaire Oven Shield
29807047102 Frigidaire Oven Front Drawer Glide
37316490000 Frigidaire Oven Range Temperature Sensor
42316400701 Frigidaire Oven Shield
435303285179 Frigidaire Oven Door Screw
44316517600 Frigidaire Oven Spacer
45316234100 Frigidaire Oven Shield
57316457801 Frigidaire Oven Cover
58D316509700 Frigidaire Insulation
58B316406503 Frigidaire Insulation
58C316509600 Frigidaire Insulation
58A316406604 Frigidaire Insulation
59316208401 Frigidaire Oven Vent Tube
59A316208304 Frigidaire Oven Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316430900 Frigidaire Oven Broil Element
67316505500 Frigidaire Oven Element
68316429100 Frigidaire Oven Support Bracket
71WCI 316422304
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
1085304467898 Frigidaire Oven Kit Assembly
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
151WCI 316404600
161316211603 Frigidaire Oven Element
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
