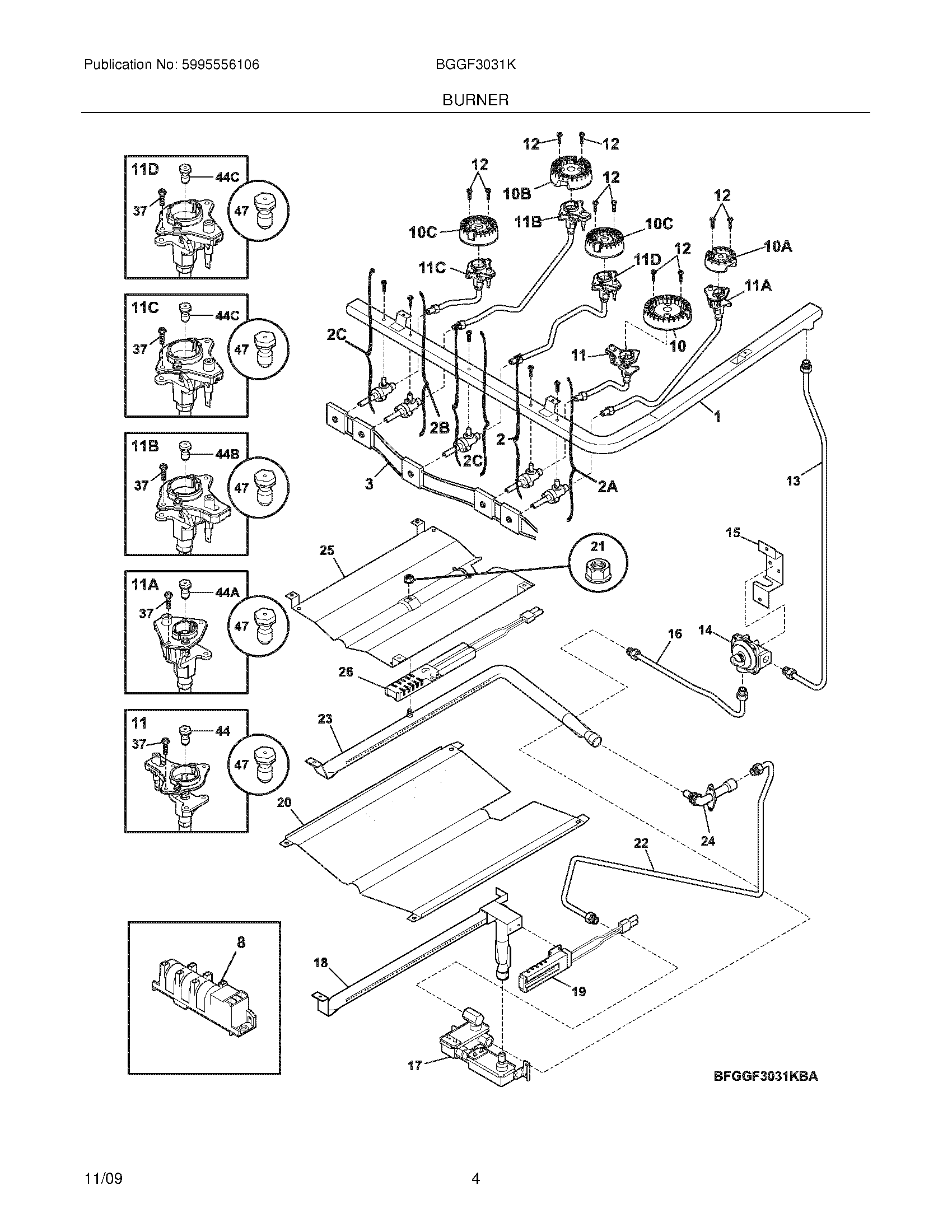

BGGF3031KBC 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	WCI 316443200
NI	316021132 Frigidaire Screw
NI	WCI 316526902
NI	WCI 316064103
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316498100 Frigidaire Shield
NI	316401500 Frigidaire Oven Cover
NI	316021105 Frigidaire Oven Screw
NI	316417518 Frigidaire Instructions
NI	316215600 Frigidaire Oven Screw
1	WCI 316551202
2C	WCI 5303935234
2B	WCI 5303935236
2A	WCI 5303935235
2	WCI 5303935233
3	WCI 316219023
8	SPARK MODULE
10	316438400 Frigidaire Range Sealed Burner, 16/17K
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316438200 Frigidaire Range Sealed Burner, 5K
11D	316536623 Frigidaire Igniter/Orifice Assembly
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
11B	316536616 Frigidaire Igniter/Orifice Assembly
11A	316536610 Frigidaire Igniter Assembly/Orifice
11	316536622 Frigidaire Igniter Orifice Assembly
12	316540900 Frigidaire Oven Screw
13	WCI 316545700
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304506545 Frigidaire Gas Oven Range Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 316404300
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	BAKE IGNITOR
37	316240600 Frigidaire Igniter Mounting Screw
44	316527511 Frigidaire Oven Orifice
44A	316527504 Frigidaire Oven Orifice
44B	316527509 Frigidaire Oven 18.2K Burner Orifice
44C	316527500 Frigidaire Oven Burner Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
