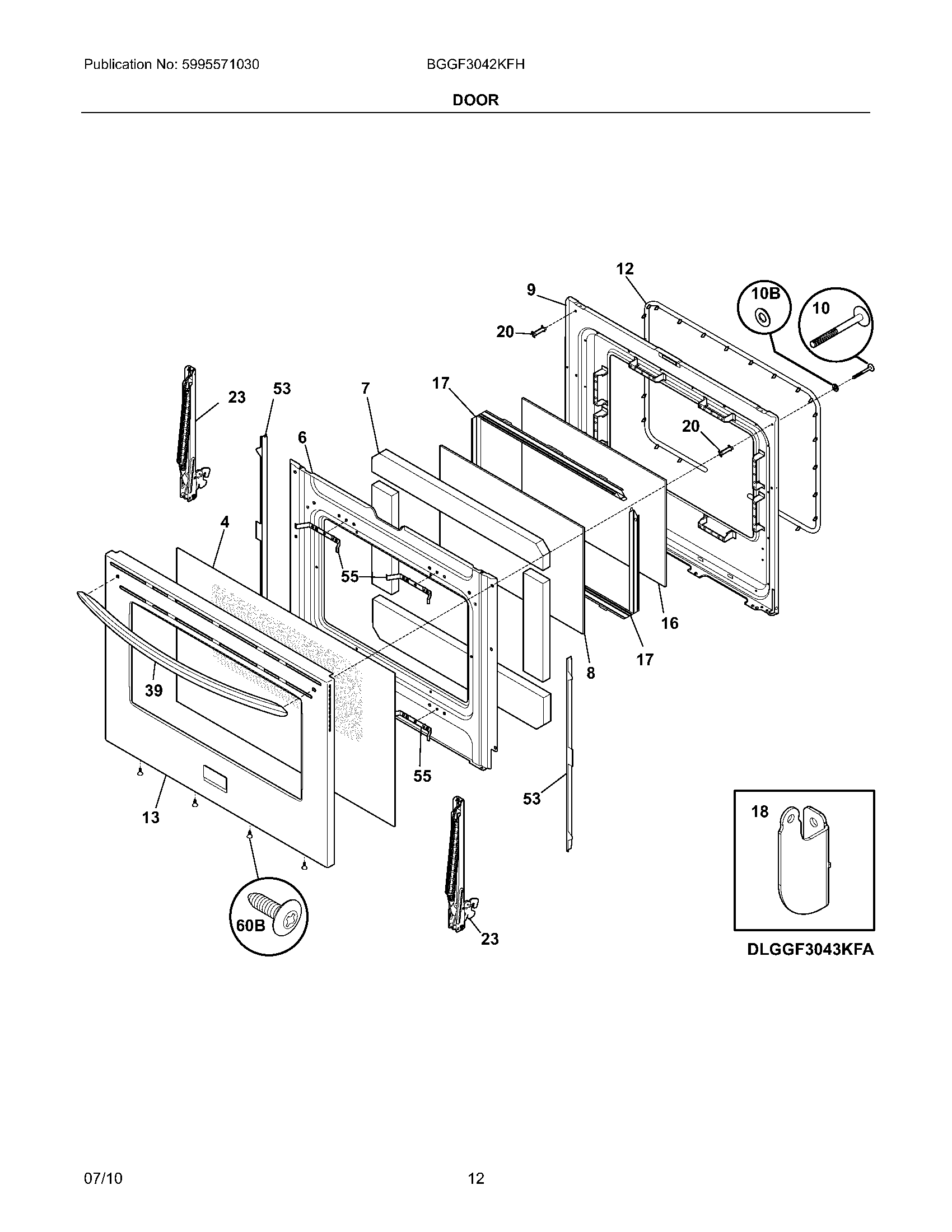

BGGF3042KFH 11 – DOOR

BGGF3042KFH 11 – DOOR

Written by

in

BGGF3042KFH 11 – DOOR

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316021105 Frigidaire Oven Screw
NI316433603 Frigidaire Oven Label
NI316418900 Frigidaire Oven Screw
4316452722 Frigidaire Oven Glass
6316402316 Frigidaire Shield
7316403900 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 316423811
10B316008401 Frigidaire Washer P-1
10Screw,handle mtg. ,10-24 x 1.75“ ,(2)
125304498835 Frigidaire Oven Seal
13316604011 Frigidaire Panel
16WCI 316117501
175304504811 Frigidaire Glass Spacer
18WCI 316547900
20WCI 316408600
23316575906 Frigidaire Oven Hinge
535304532043 Frigidaire Door Filler Shield
55316408300 Frigidaire Oven Bracket
60B316021109 Frigidaire Oven Screw
