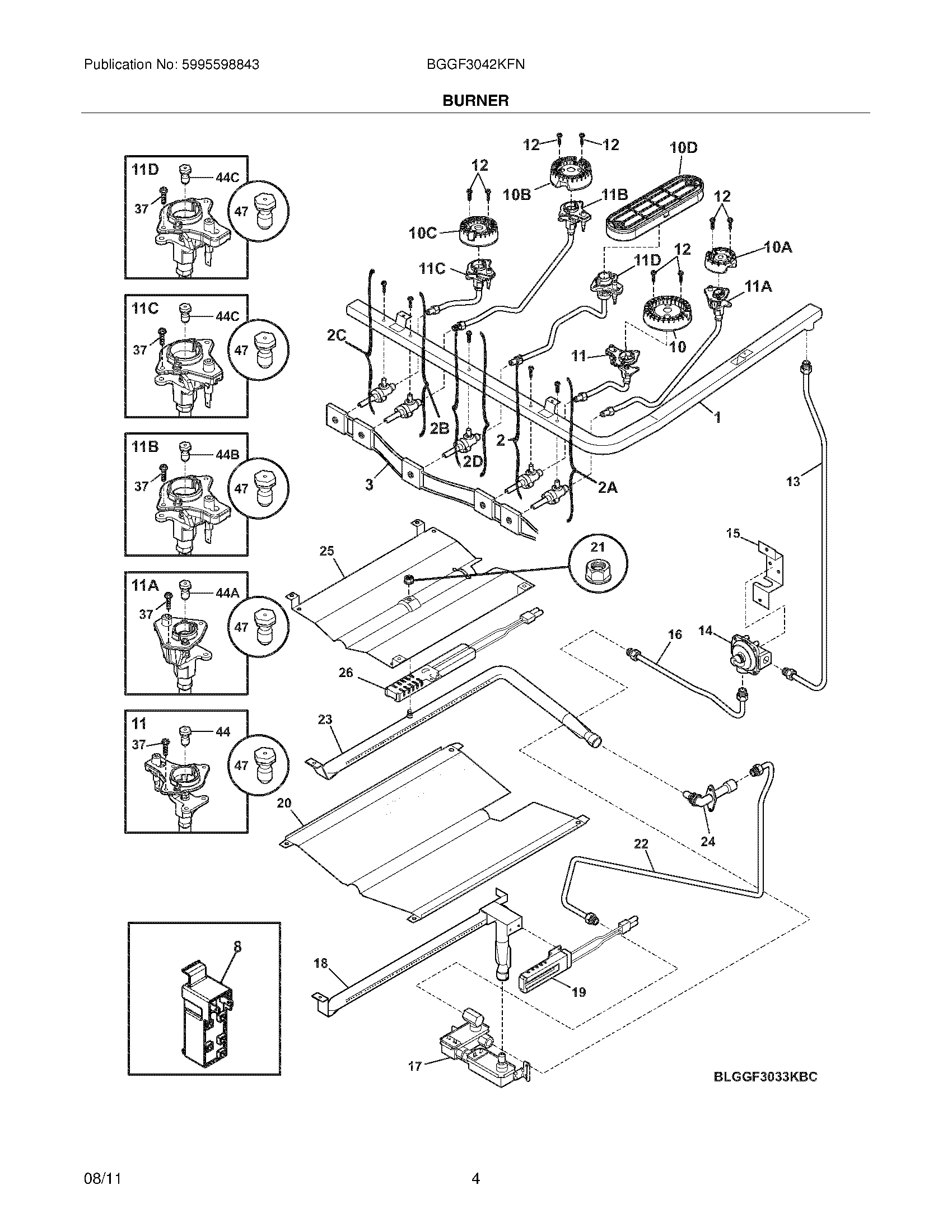

BGGF3042KFN 05 – BURNER

BGGF3042KFN 05 – BURNER

Written by

in

BGGF3042KFN 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	241853202 Frigidaire Refrigerator Screw
NI	5304494425 Frigidaire Oven Harness
NI	316498100 Frigidaire Shield
NI	316417518 Frigidaire Instructions
NI	316401500 Frigidaire Oven Cover
NI	316257400 Frigidaire Oven Bracket
NI	316021105 Frigidaire Oven Screw
NI	316215600 Frigidaire Oven Screw
1	316417901 Frigidaire Oven Manifold
2	WCI 5303935236
2B	5303935306 Frigidaire Oven Valve
2A	5303935308 Frigidaire Oven Valve
2C	5303935305 Frigidaire Oven Valve
2D	5303935309 Frigidaire Top Burner Valve
3	316580614 Frigidaire Oven Wiring Harness
8	5304508269 Frigidaire Oven Range Spark Module Kit
10D	316559300 Frigidaire Oven Burner
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316438200 Frigidaire Range Sealed Burner, 5K
10	316438400 Frigidaire Range Sealed Burner, 16/17K
11D	316536623 Frigidaire Igniter/Orifice Assembly
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
11A	316536610 Frigidaire Igniter Assembly/Orifice
11	316536622 Frigidaire Igniter Orifice Assembly
11B	316536616 Frigidaire Igniter/Orifice Assembly
12	316540900 Frigidaire Oven Screw
13	316489101 Frigidaire Suppl Tube-Manifold
14	316091711 Frigidaire Regulator Assembly
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304506545 Frigidaire Gas Oven Range Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	316404302 Frigidaire Oven Burner
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	BAKE IGNITOR
37	316240600 Frigidaire Igniter Mounting Screw
44	316527509 Frigidaire Oven 18.2K Burner Orifice
44A	316527504 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
44B	316527502 Frigidaire Oven Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
