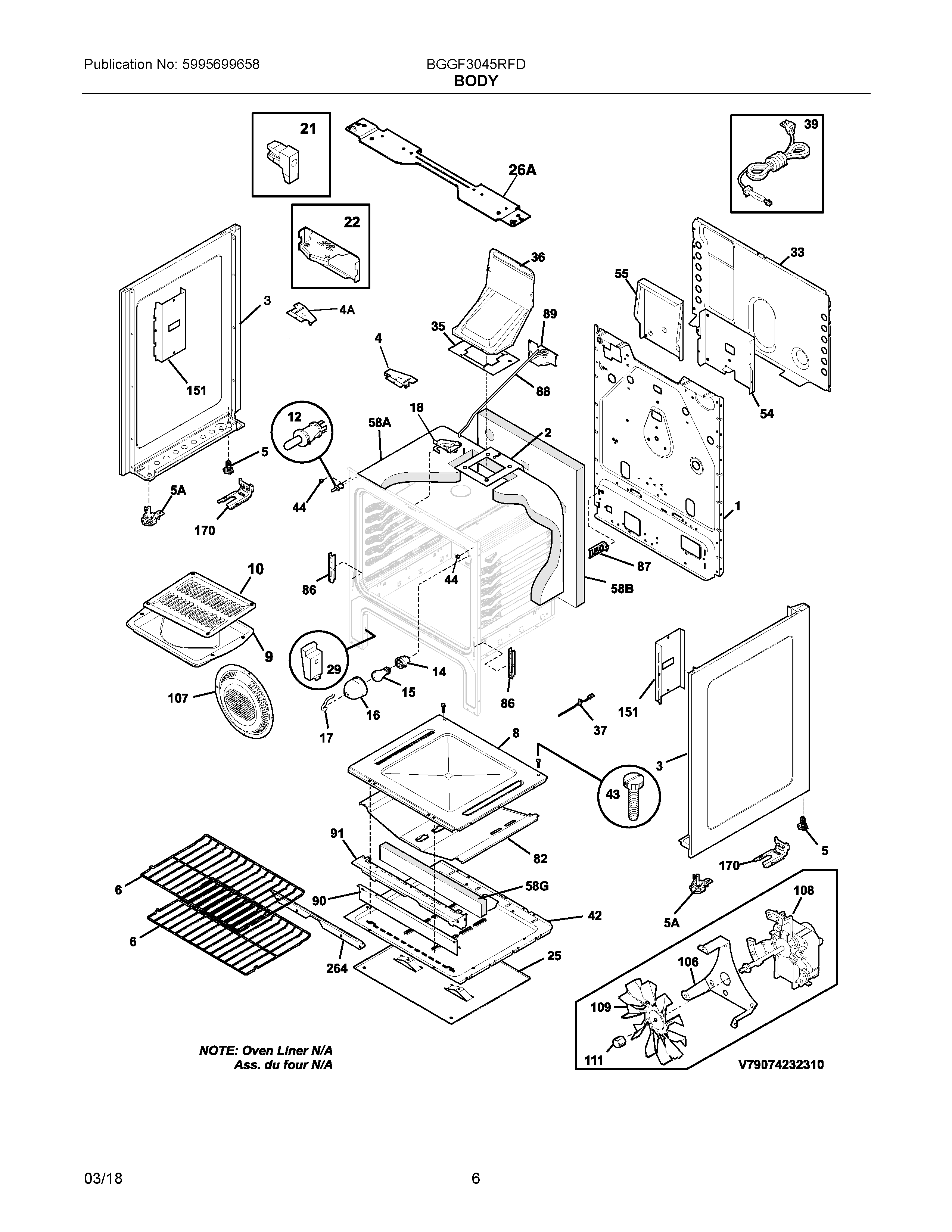

BGGF3045RFD 04 – BODY

BGGF3045RFD 04 – BODY

Written by

in

BGGF3045RFD 04 – BODY

Products

Position	Product
NI	316089500 Frigidaire Oven Screw
NIB	316116000 Frigidaire Screw
NIA	316432800 Frigidaire Clip
NI	316021109 Frigidaire Oven Screw
NI	241853202 Frigidaire Refrigerator Screw
NI	316418901 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	316279600 Frigidaire Screw
NI	WCI 5304501426
NI	316001017 Frigidaire Screw
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI	316231800 Frigidaire Cover
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
1	316401608 Frigidaire Back
2	316437100 Frigidaire Brace Assembly DSP
3	316400144 Frigidaire Panel
3A	316400145 Frigidaire Panel Assembly
4A	316605401 Frigidaire Bracket-MAINTOP
4	316605400 Frigidaire MAINTOP Bracket
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316496201 Frigidaire Oven Rack
8	316400603 Frigidaire Oven Stove Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
25	316406200 Frigidaire Oven Shield
26A	316498200 Frigidaire Oven Bracket
29	807047102 Frigidaire Oven Front Drawer Glide
33	316402500 Frigidaire Oven Shield
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304515659 Frigidaire Oven Power Cord
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
54	5304512756 Frigidaire Shield
55	5304510473 Frigidaire Shield
58G	INSULATION, MAIN FRONT
58B	WCI 316403600
58A	316403700 Frigidaire Insulation
82	316400801 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316401202 Frigidaire Bracket
88	316232702 Frigidaire Rod
89	MOTOR
91	SHIELD, BURNER, FRONT
106	316404100 Frigidaire Oven Bracket
107	316026701 Frigidaire Oven Cover Assembly
108	316256900 Frigidaire Oven Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	SHIELD, HEAT, BODYSIDE, (2)
264	316404700 Frigidaire Bracket
